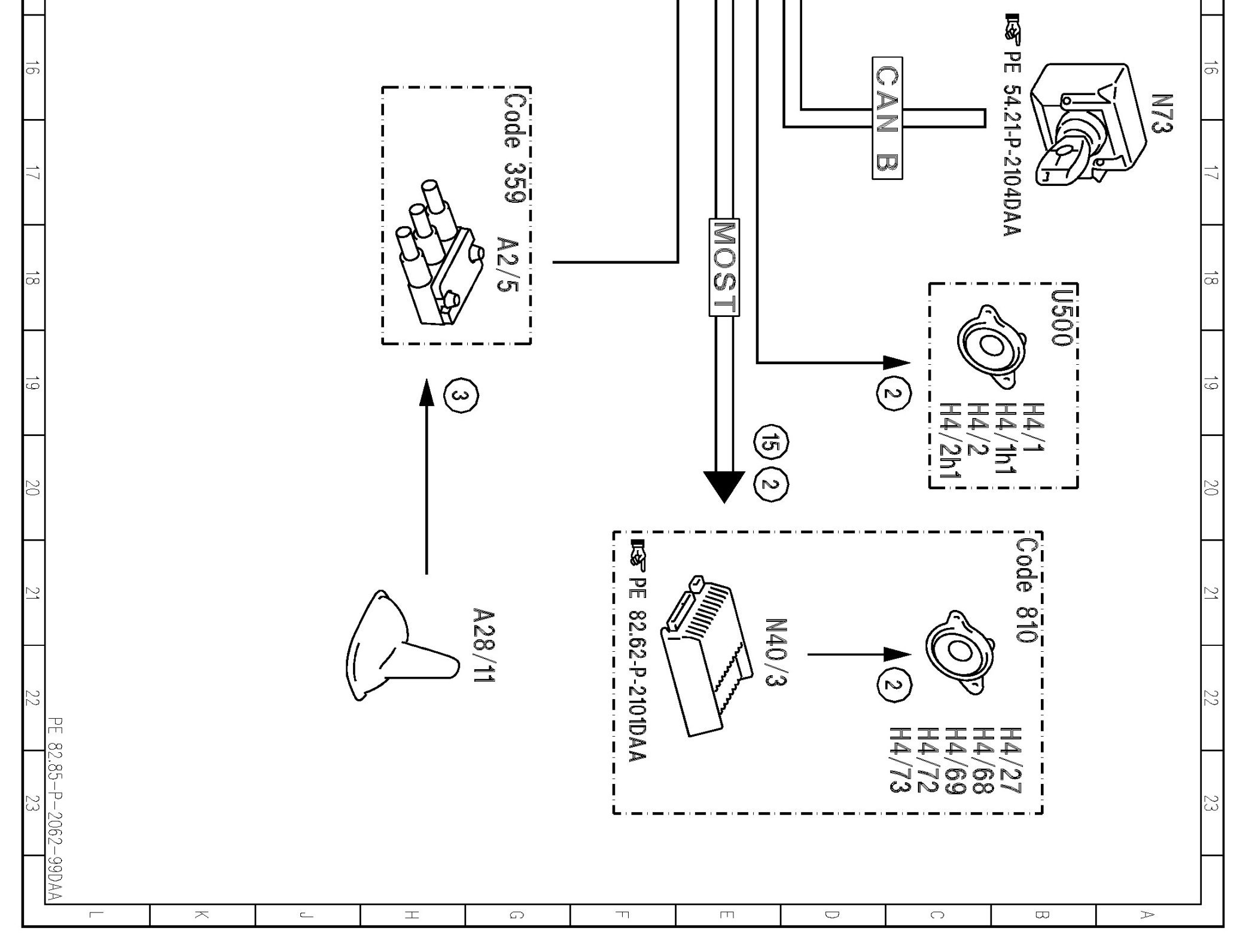

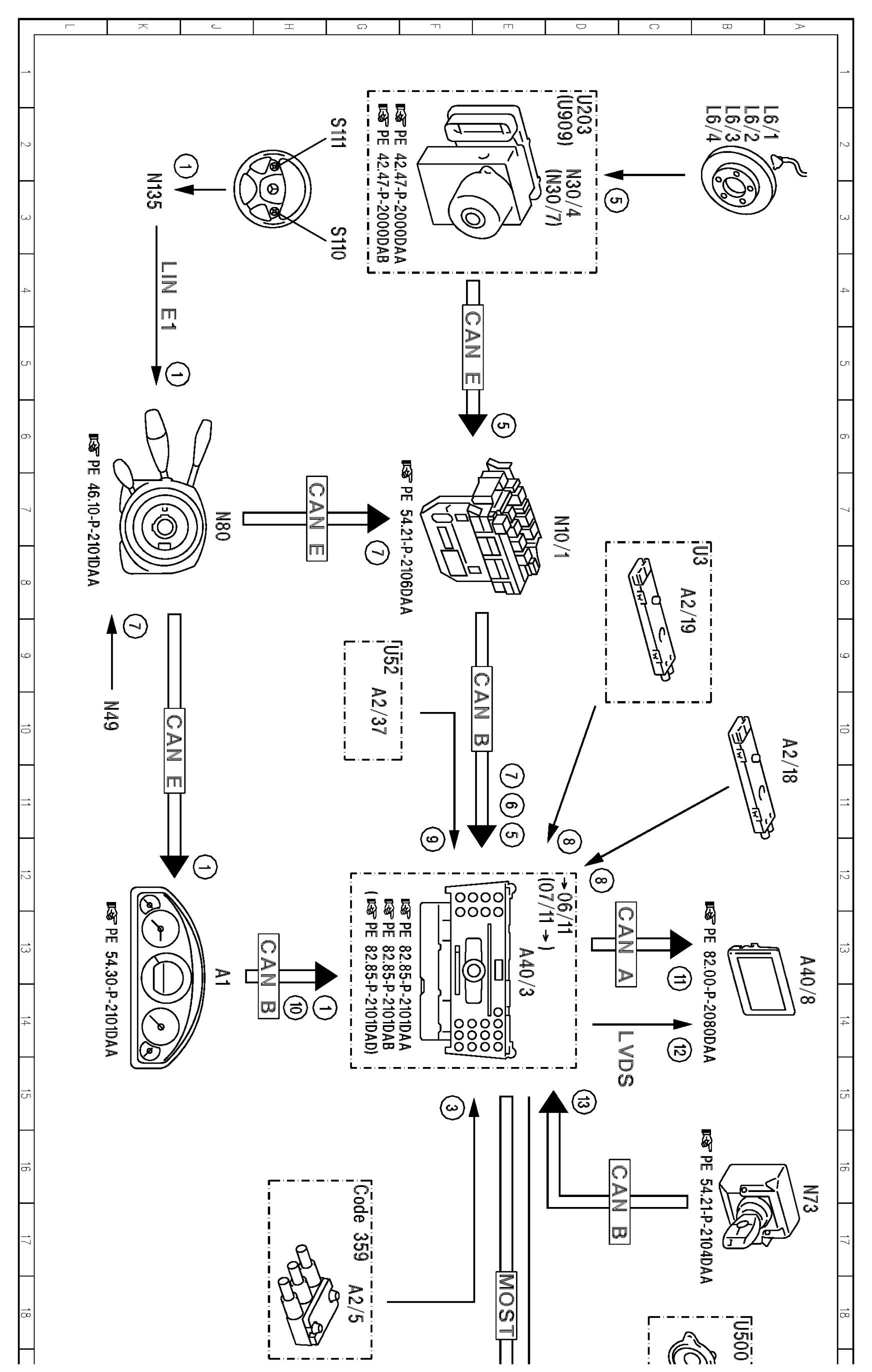

PE82.85-P-2062DAA Electrical Function Diagram For Position Finding And Navigation (COMAND), Function

PE82.85-P-2062DAA Electrical Function Diagram For Position Finding And Navigation (COMAND), Function
MODEL 212.0 /2
- with CODE (527) COMAND APS (with navigation)
- with CODE (512) COMAND APS with DVD changer














































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
