E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Ta - TV
>>

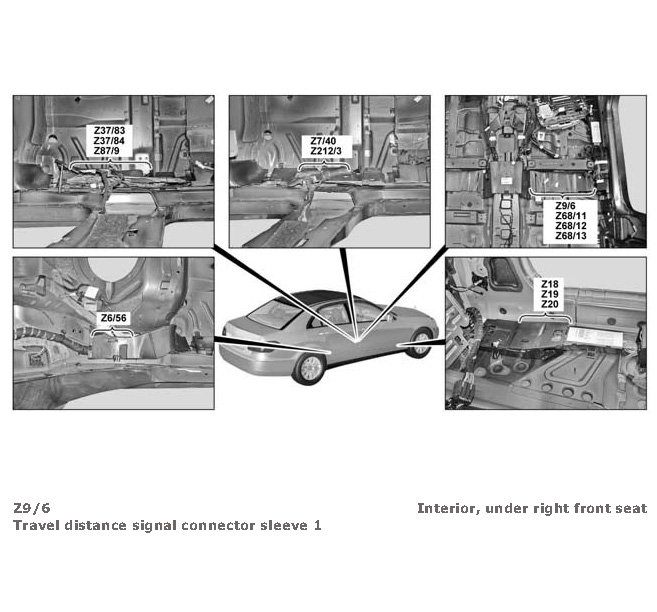

Travel Distance Signal Connector Sleeve 1
Travel Distance Signal Connector Sleeve 1
Travel Distance Signal Connector Sleeve 1
