Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
TV - 5V
>>

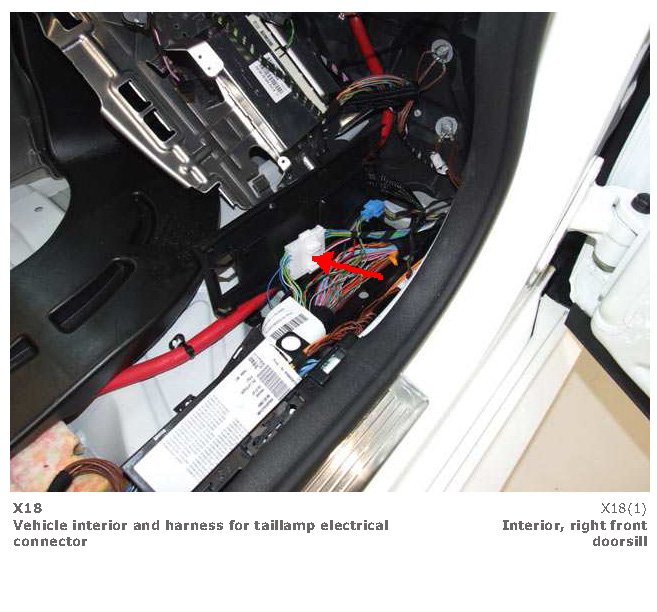

Vehicle Interior and Harness For Taillamp Electrical Connector

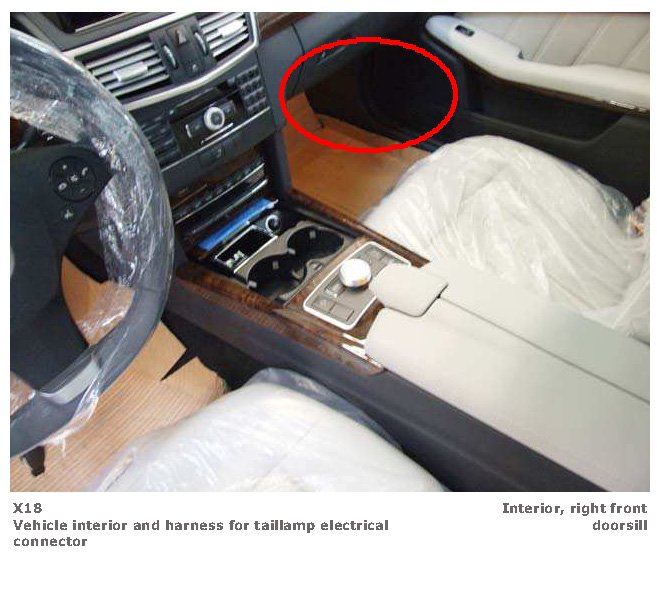

Vehicle Interior and Harness For Taillamp Electrical Connector

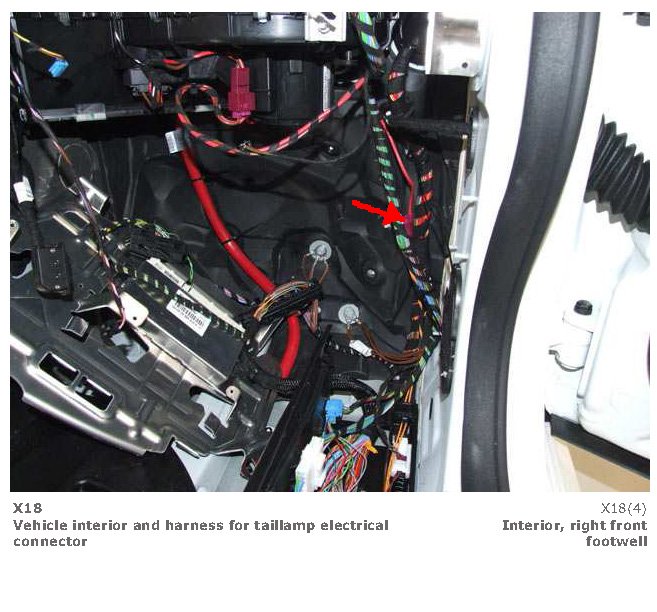

Vehicle Interior And Harness For Taillamp Electrical Connector
