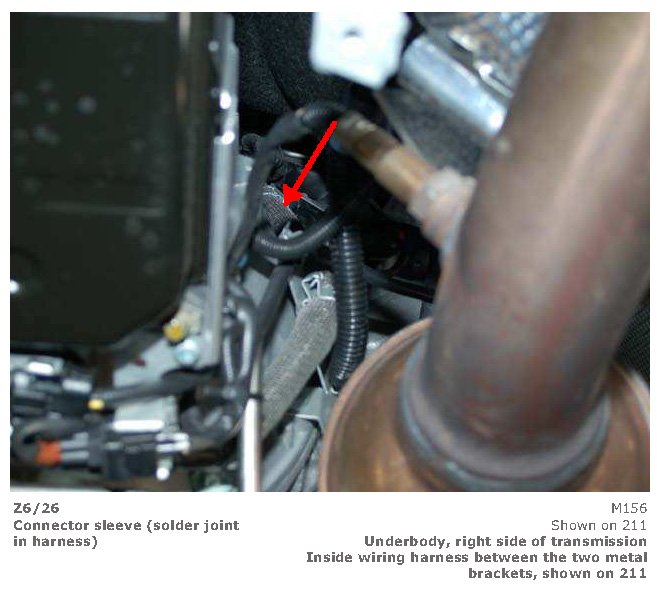

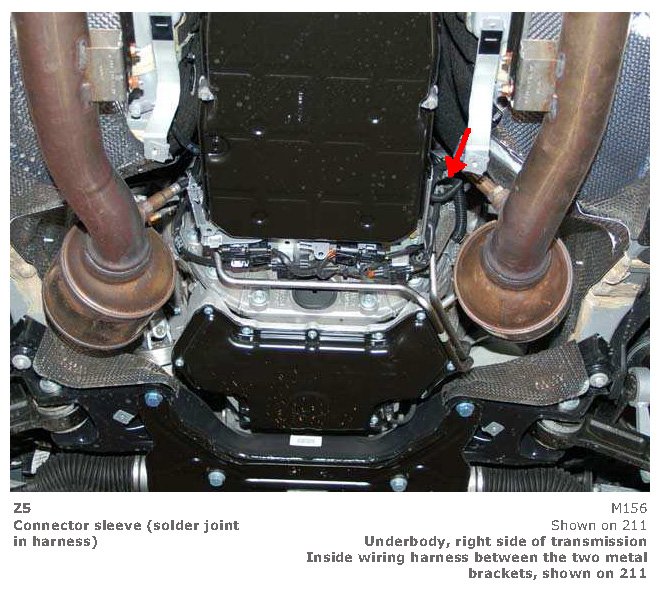

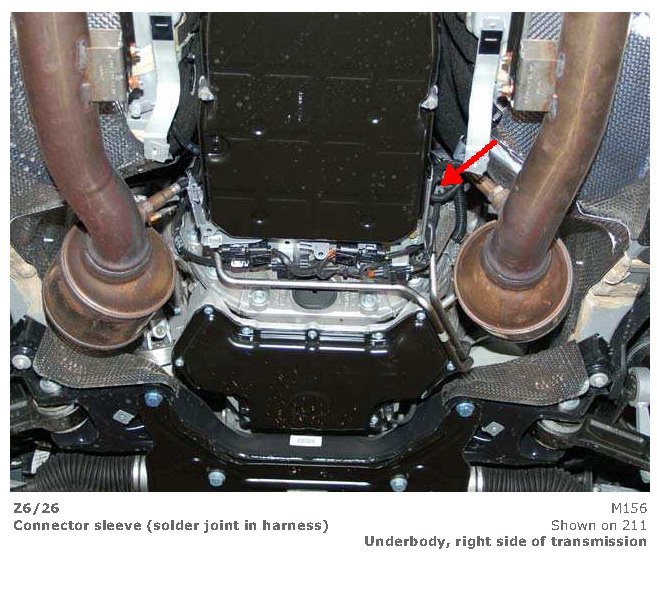

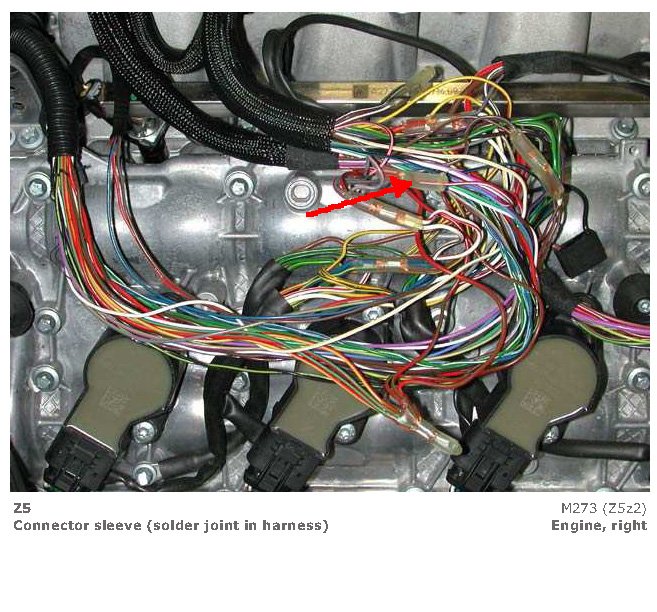

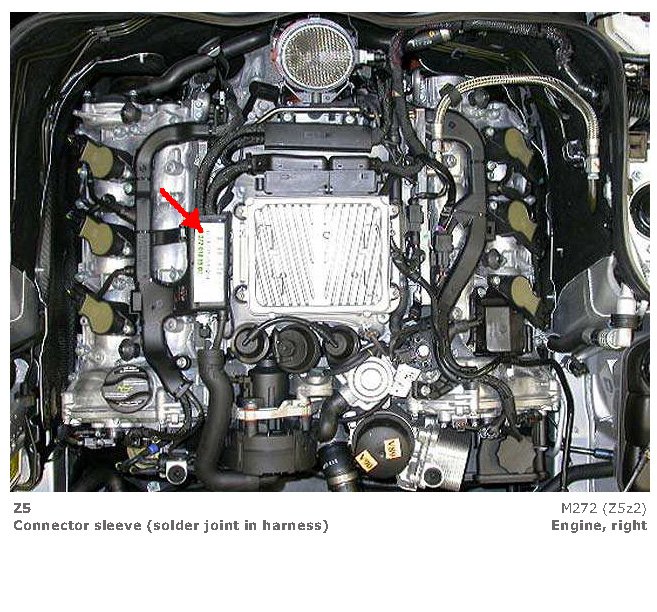

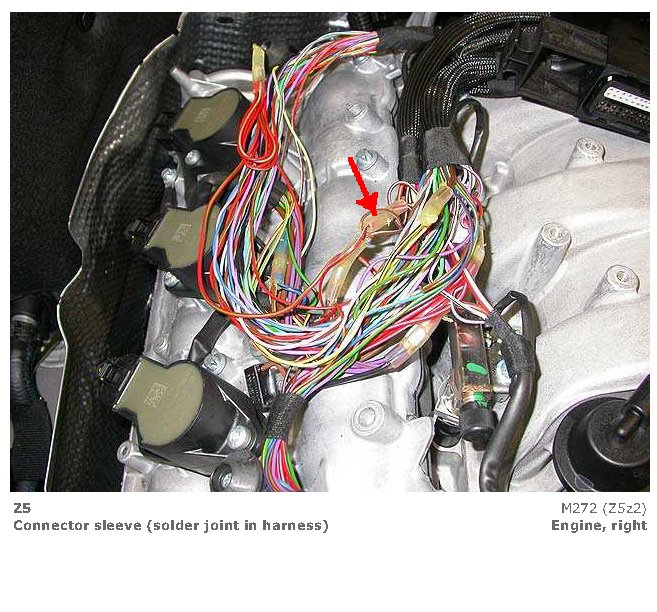

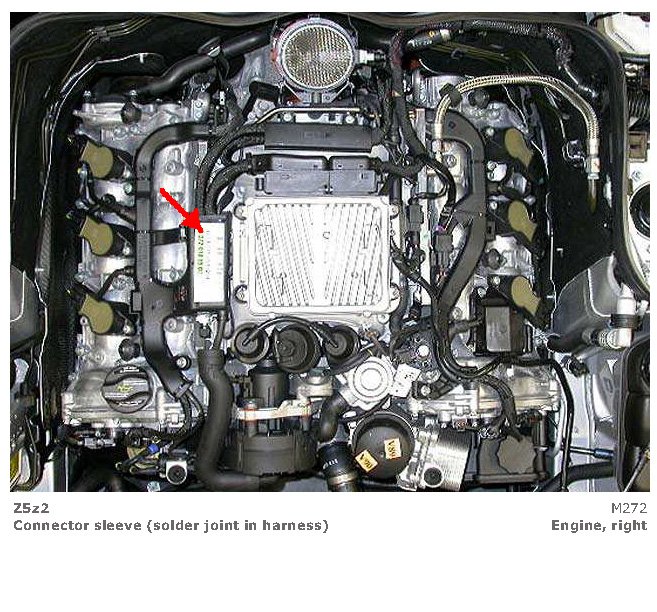

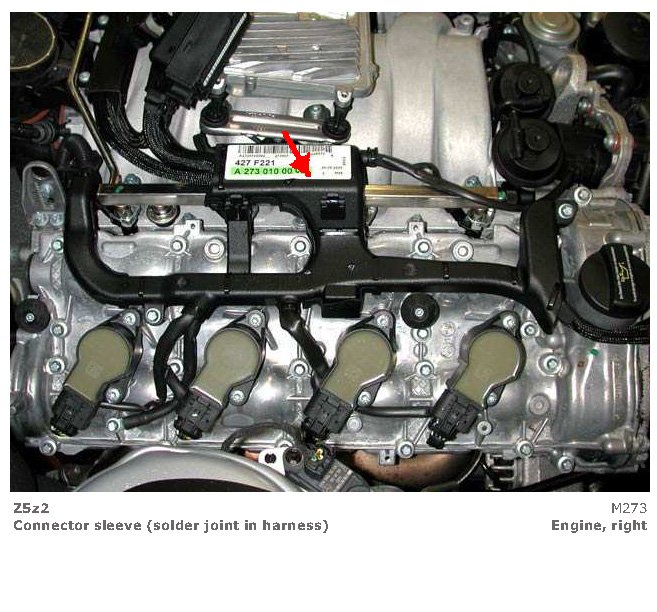

Connector Sleeve (Solder Joint In Harness)
Connector Sleeve (Solder Joint In Harness)
Connector Sleeve (solder Joint In Harness)
