PE30.30-P-2101DAA Distronic (DTR) Control Module



PE30.30-P-2101DAA Distronic (DTR) Control Module
- with CODE (233) DISTRONIC PLUS

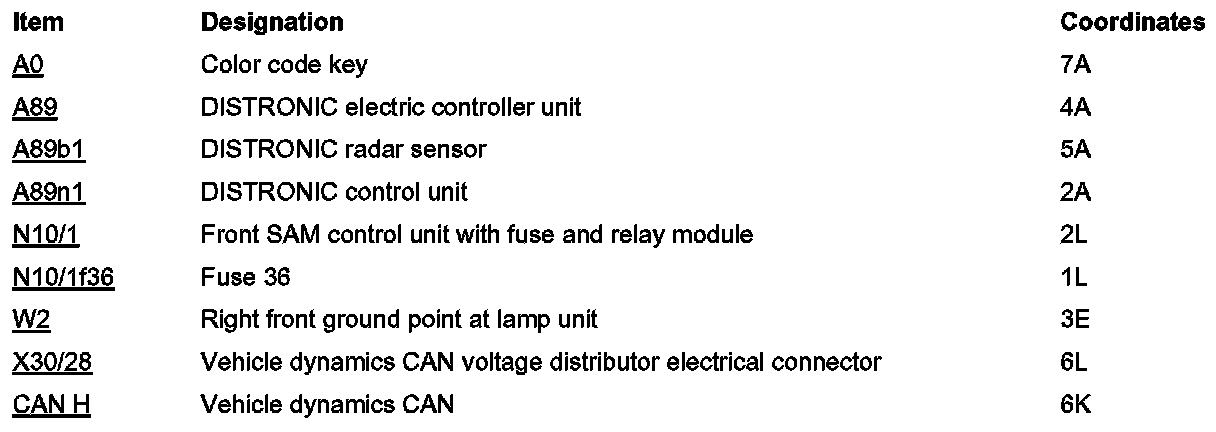

- control unit A89










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
