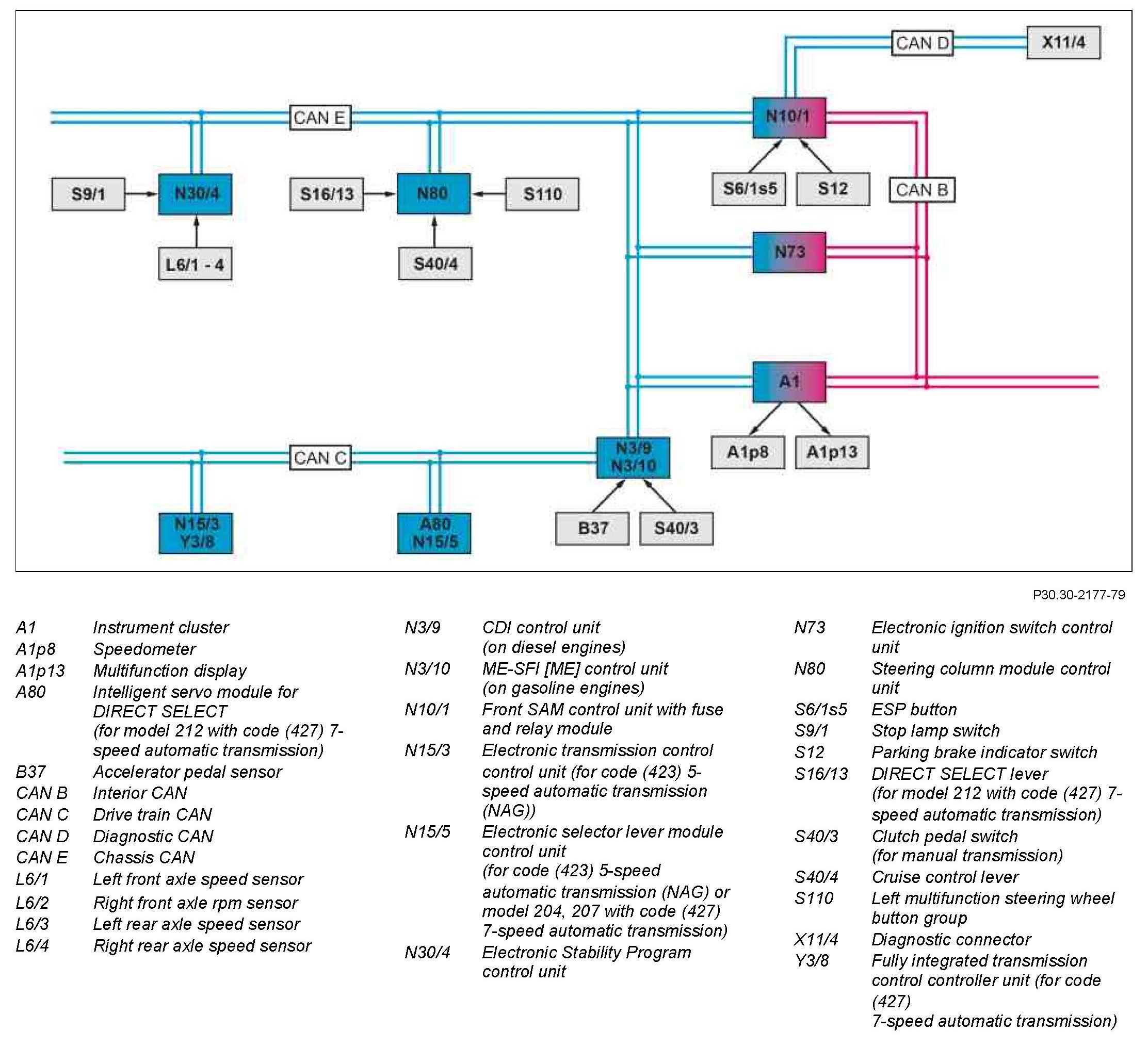

GF30.30-P-0001-08FL Cruise Control (CC) Block Diagram



GF30.30-P-0001-08FL Cruise Control (CC) Block Diagram
- with CODE (440) Cruise control
- as of model year 09


Component Identification:
