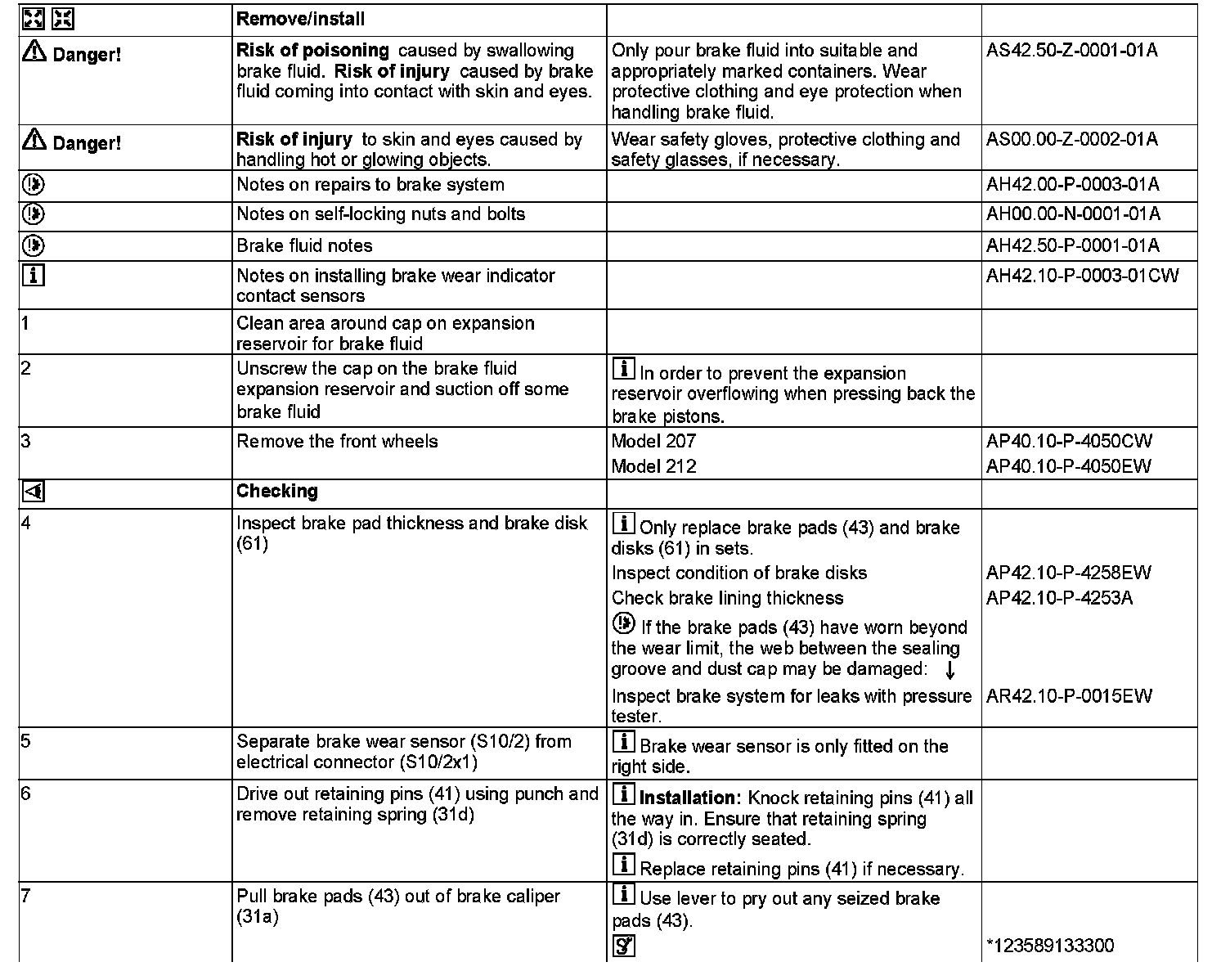

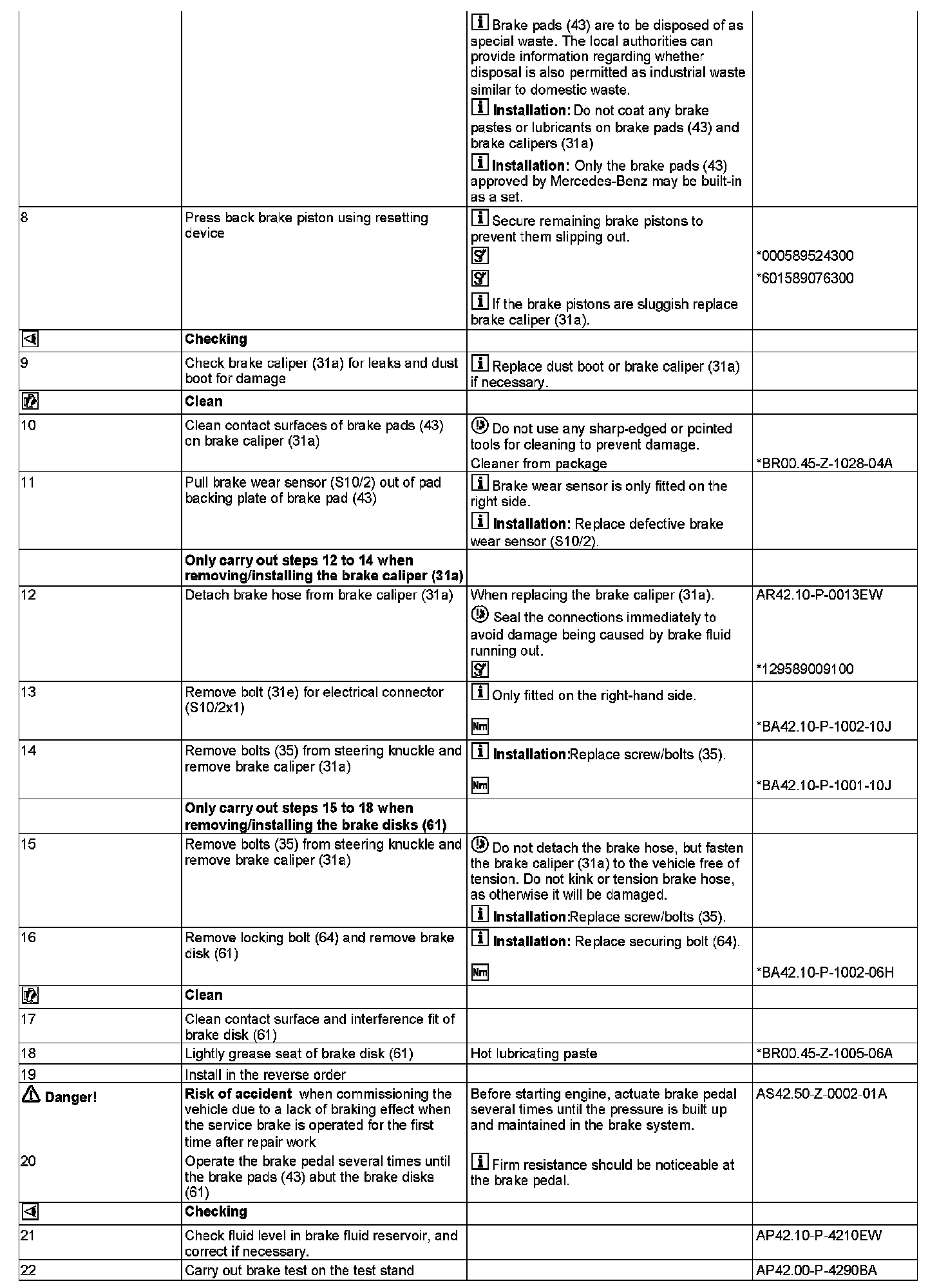

AR42.10-P-0225EWF Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake

AR42.10-P-0225EWF Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake
MODEL 207, 212 (except, 212.077 /277) with fixed-caliper brake





31a Brake caliper
31d Retaining spring
31e Screw
35 Bolts
41 Retaining pin
43 Brake pads
61 Brake disk
64 Security bolt

S10/2 Right front brake wear sensor
S10/2x1 Right front brake wear sensor electrical connector




















129 589 00 91 00
Set of stop plugs





601 589 07 63 00
Wedge





000 589 52 43 00
Pusher tool

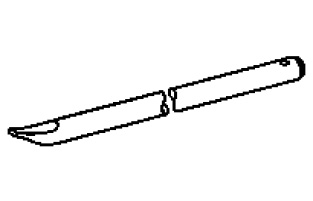

123 589 13 33 00
Lever
