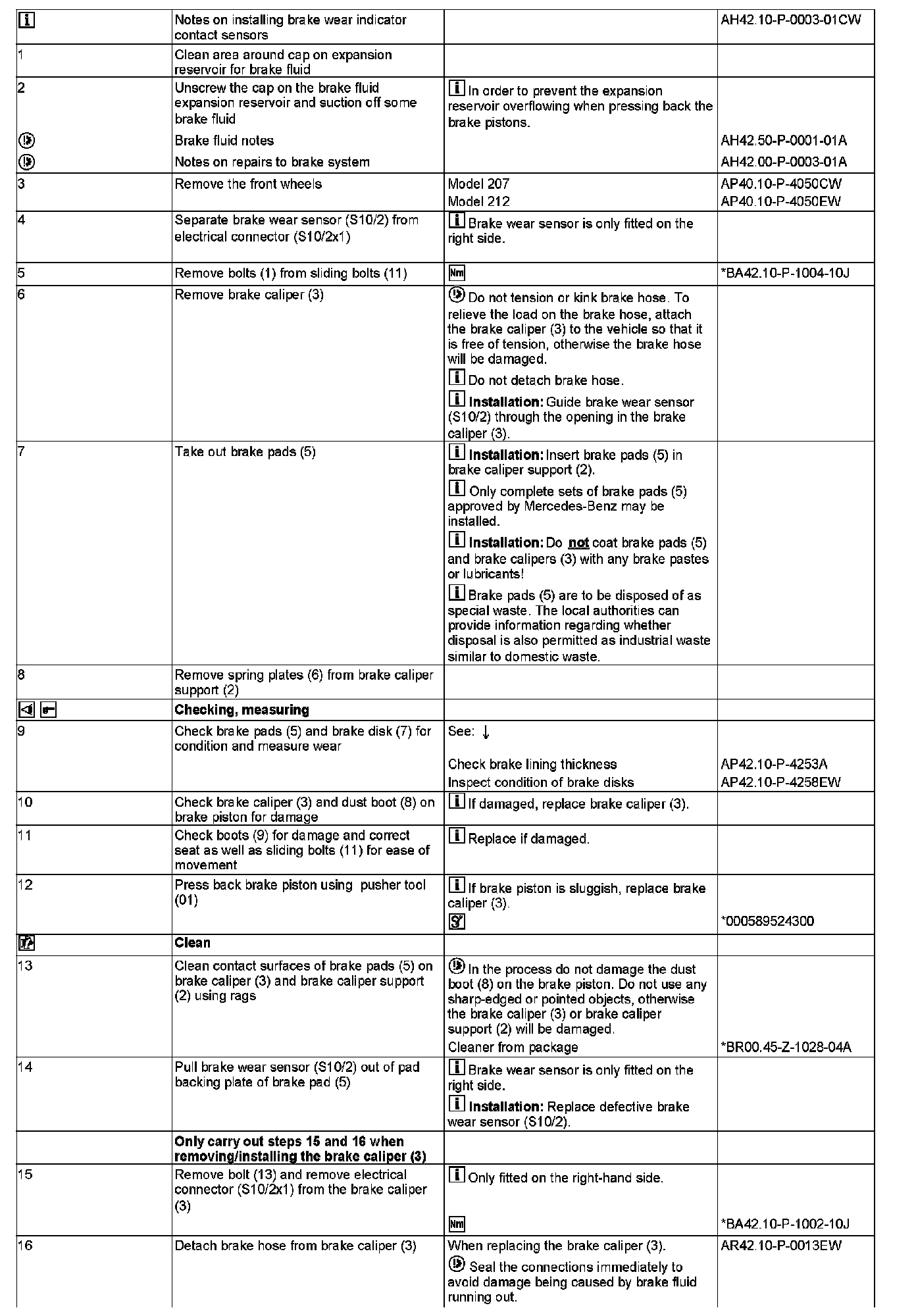

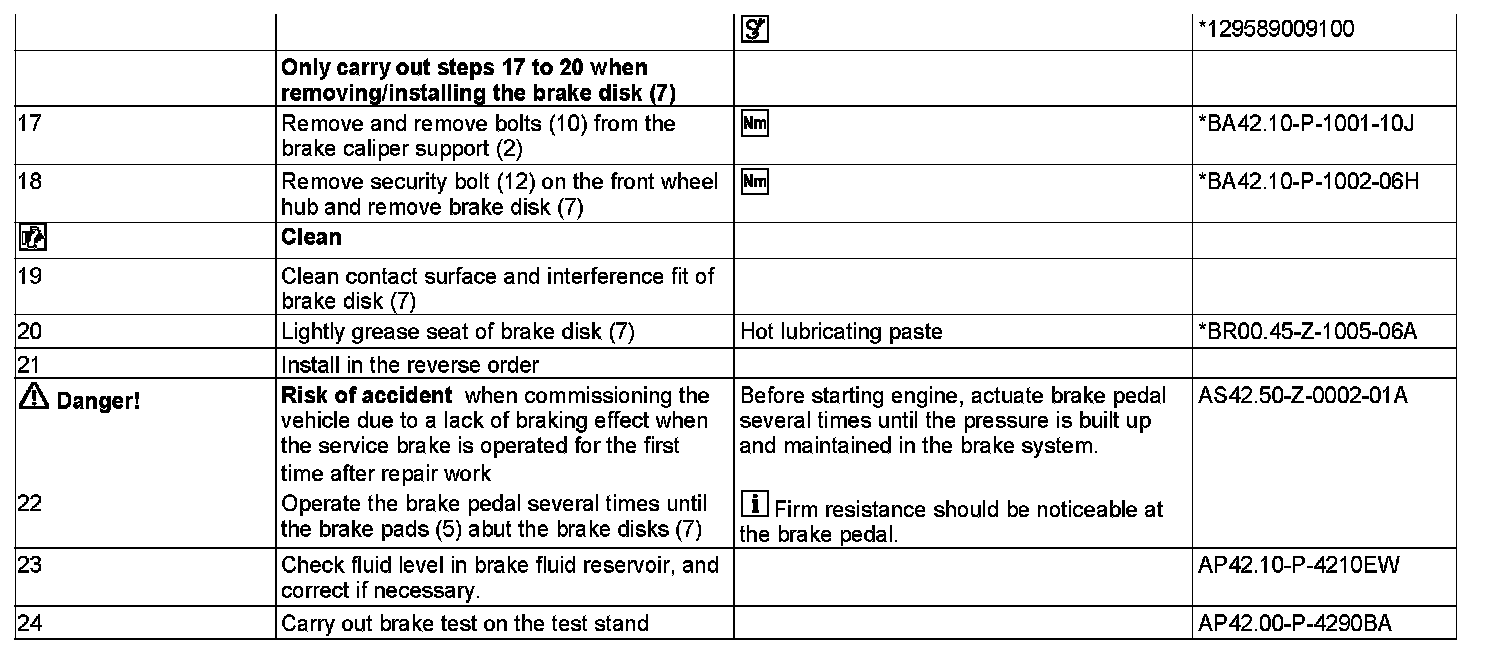

AR42.10-P-0225EW Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake

AR42.10-P-0225EW Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake
MODEL 207, 212 with single-piece brake caliper support

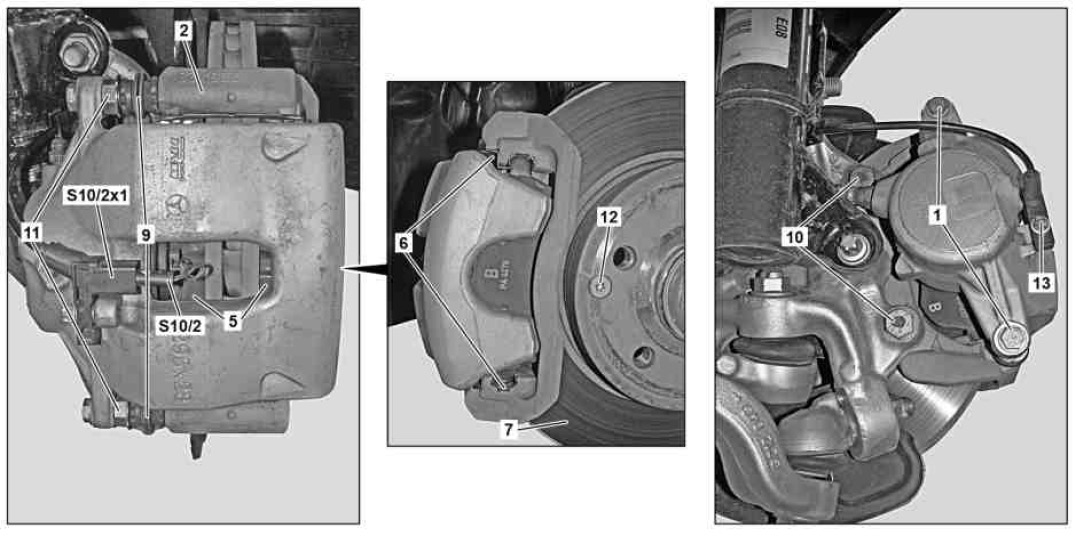

1 Bolts
2 Caliper support
5 Brake pads
6 Spring steel sheets
7 Brake disk
9 Bellows
10 Bolts
11 Sliding bolt
12 Security bolt
13 Screw

S10/2 Right front brake wear sensor
S10/2x1 Right front brake wear sensor electrical connector

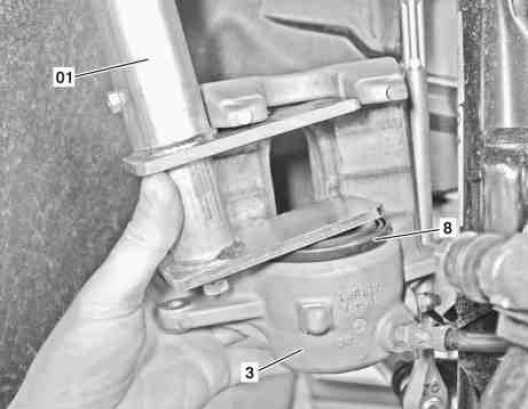

01 Pusher tool
3 Brake caliper
8 Dust boot























000 589 52 43 00
Pusher tool





129 589 00 91 00
Set of stop plugs
