AR42.10-P-0225EV Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake

AR42.10-P-0225EV Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake
MODEL 207, 212 with split brake caliper support

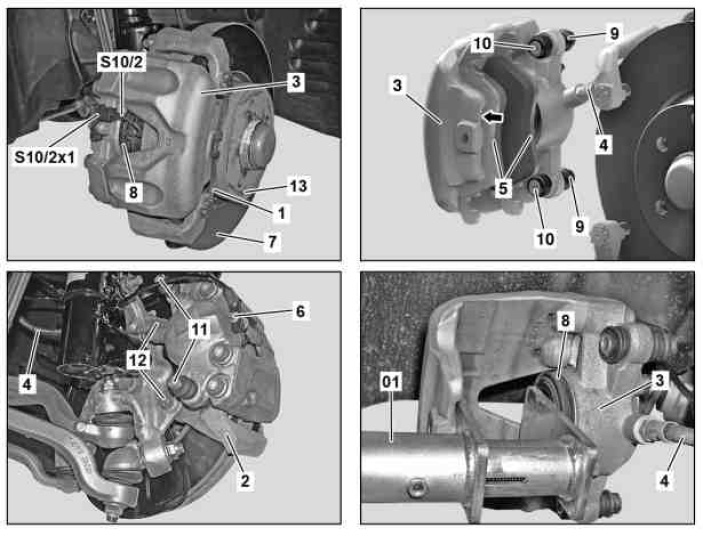

01 Pusher tool
1 Spring
2 Caliper support
3 Brake caliper
4 Brake hose
5 Brake pads
6 Screw
7 Brake disk
8 Dust boot
9 Seal boot
10 Guide sleeve
11 Bolts
12 Bolts
13 Security bolt

S10/2 Right front brake wear sensor
S10/2x1 Right front brake wear sensor electrical connector

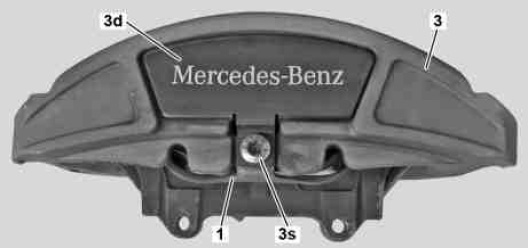

Shown on brake caliper, model 207.373

1 Spring
3 Brake caliper
3d Cover
3s Screw




















000 589 52 43 00
Pusher tool





129 589 00 91 00
Set of stop plugs
