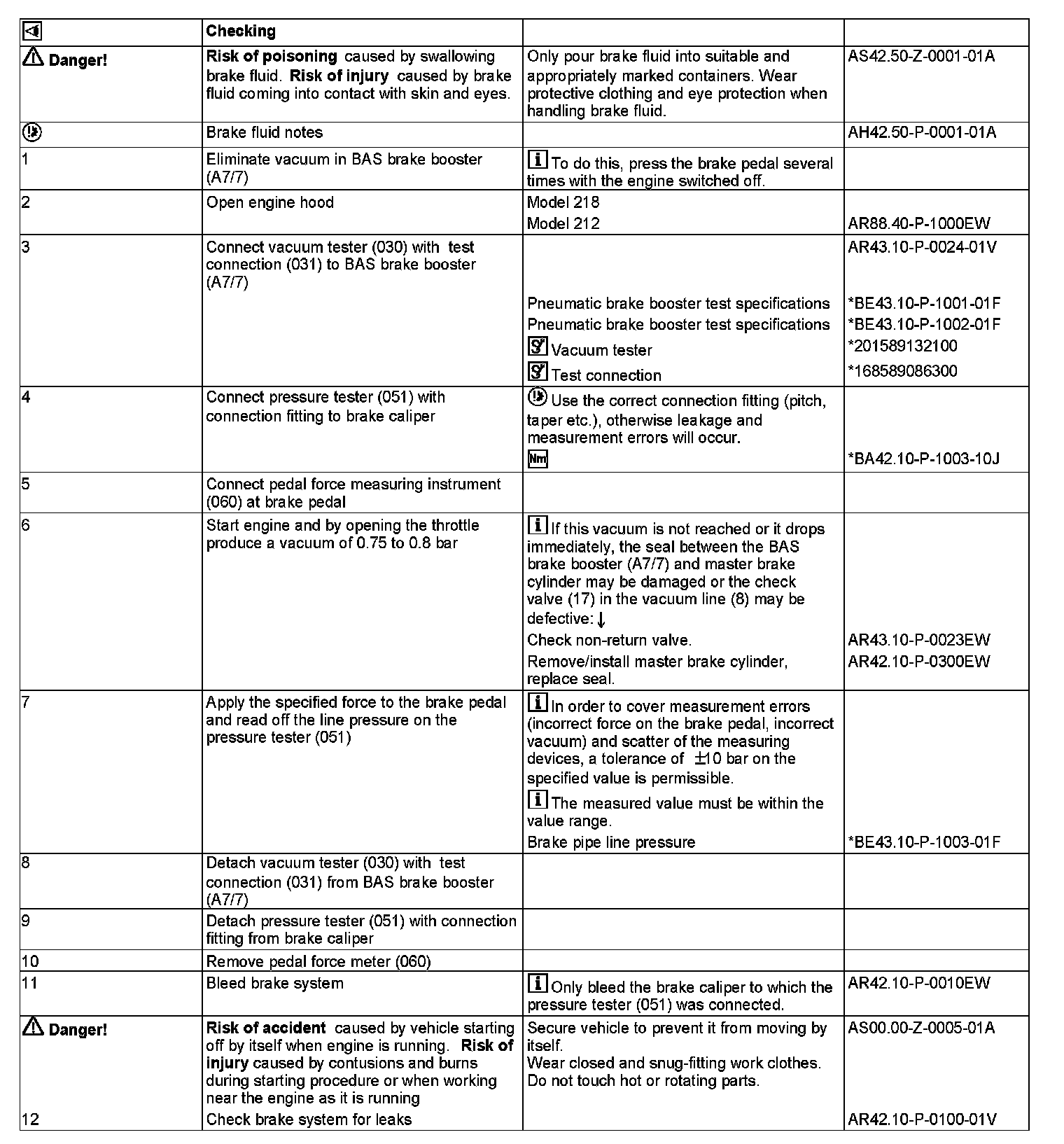

AR43.10-P-0325EW Checking Brake Booster

AR43.10-P-0325EW Checking Brake Booster
MODEL 212, 218





Shown on model 212

030 Vacuum tester
031 Test connection
051 Pressure Tester
060 Pedal force meter
8 Vacuum line
17 Check valve

A7/7 BAS brake booster














201 589 13 21 00
Vacuum tester

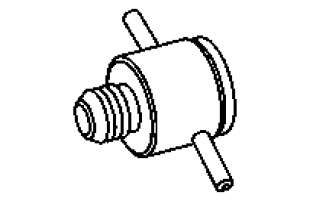

168 589 08 63 00
Test connection
