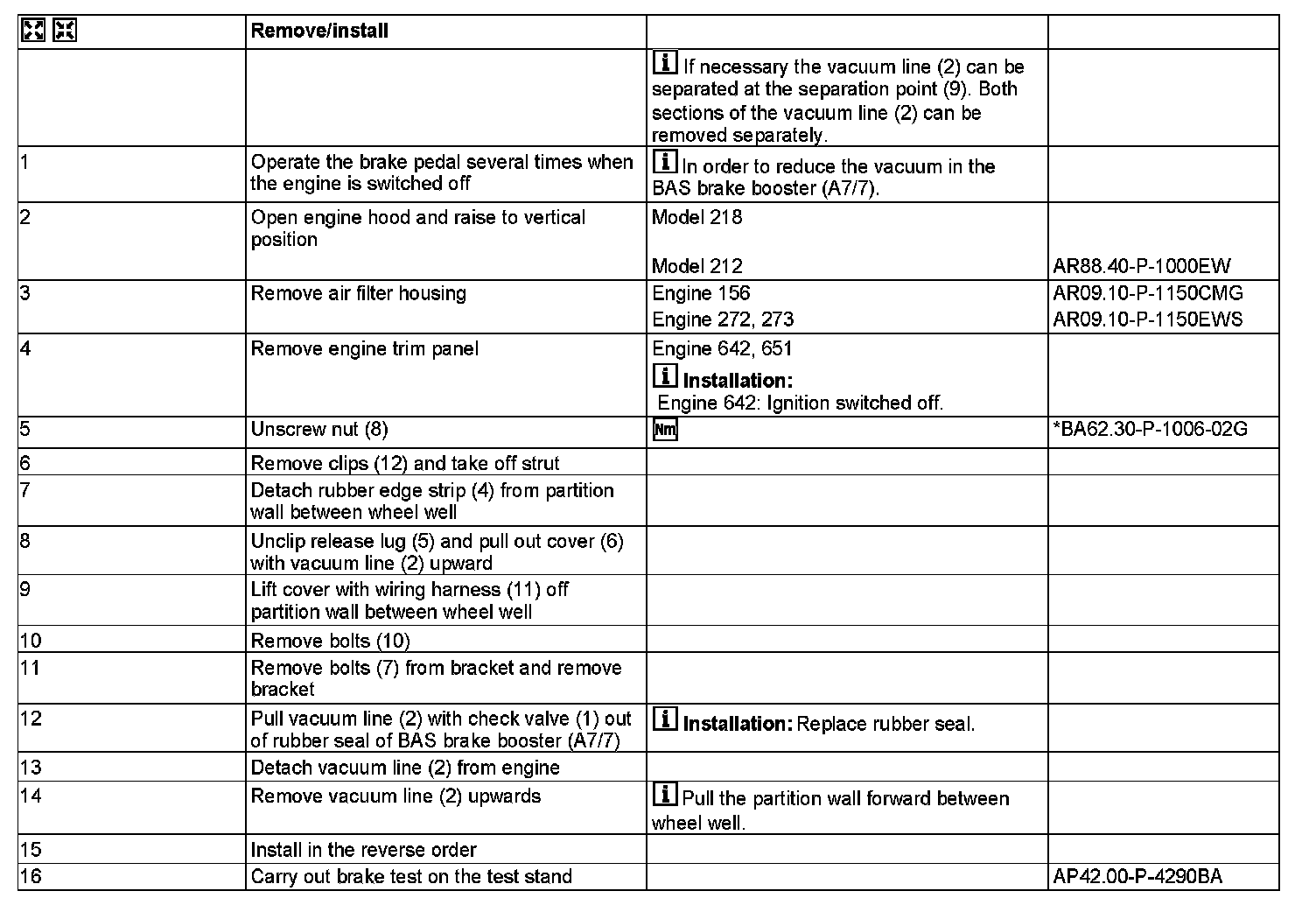

AR43.10-P-0355EW Remove/Install Brake Booster Vacuum Line

AR43.10-P-0355EW Remove/Install Brake Booster Vacuum Line
MODEL 212, 218

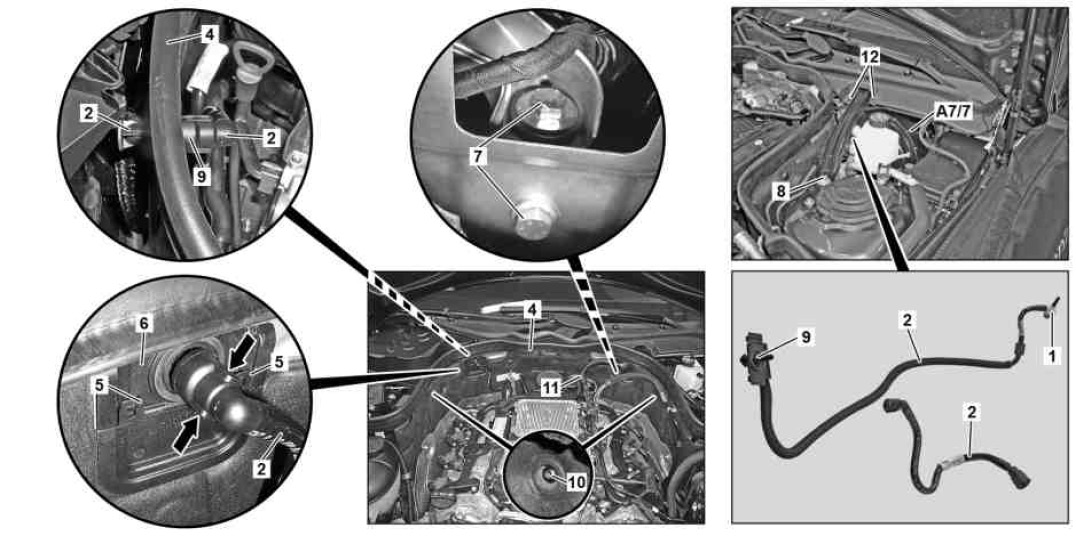

1 Check valve
2 Vacuum line
4 Rubber piping
5 Release lug
6 Cover
7 Bolts
8 Nut
9 Separation point
10 Screw
11 Wiring harness
12 Clips

A7/7 BAS brake booster
