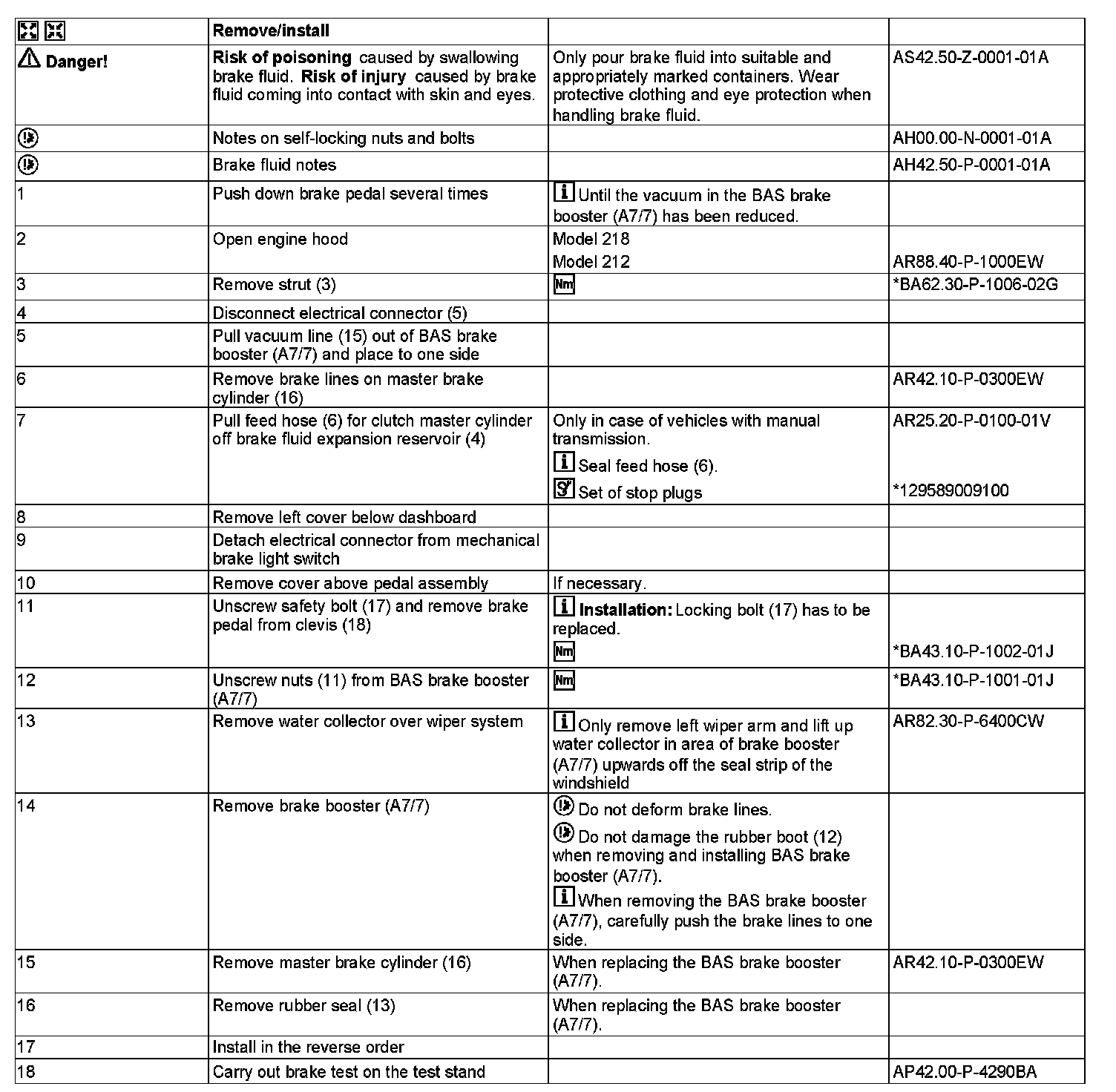

AR43.10-P-0350EW Remove/Install Brake Booster

AR43.10-P-0350EW Remove/Install Brake Booster
MODEL 212, 218

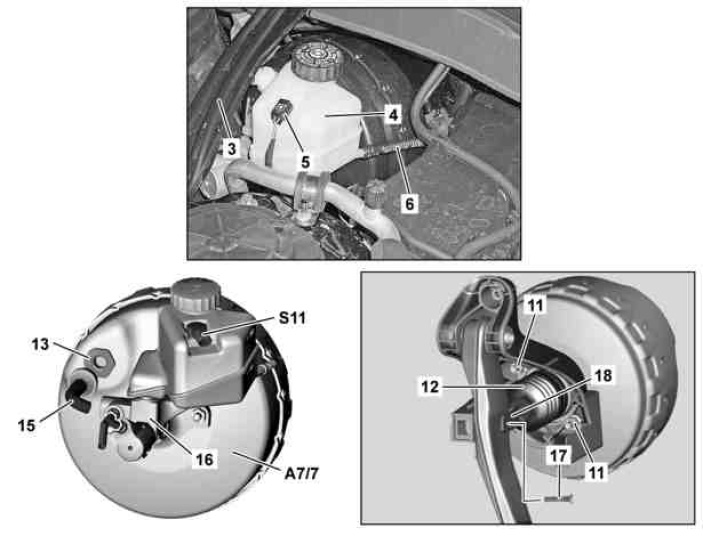

3 Strut
4 Brake fluid expansion reservoir
5 Electrical connector
6 Feed hose
11 Nut
12 Rubber boot
13 Rubber seal
15 Vacuum line
16 Master brake cylinder
17 Security bolt
18 Clevis

A7/7 BAS brake booster
S11 Brake fluid level switch

















129 589 00 91 00
Set of stop plugs
