Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Service and Repair >> Removal and Replacement

Removal and Replacement



AN29.10-P-0002EW Retrofit pedal covers
- except CODE (950) AMG sport package

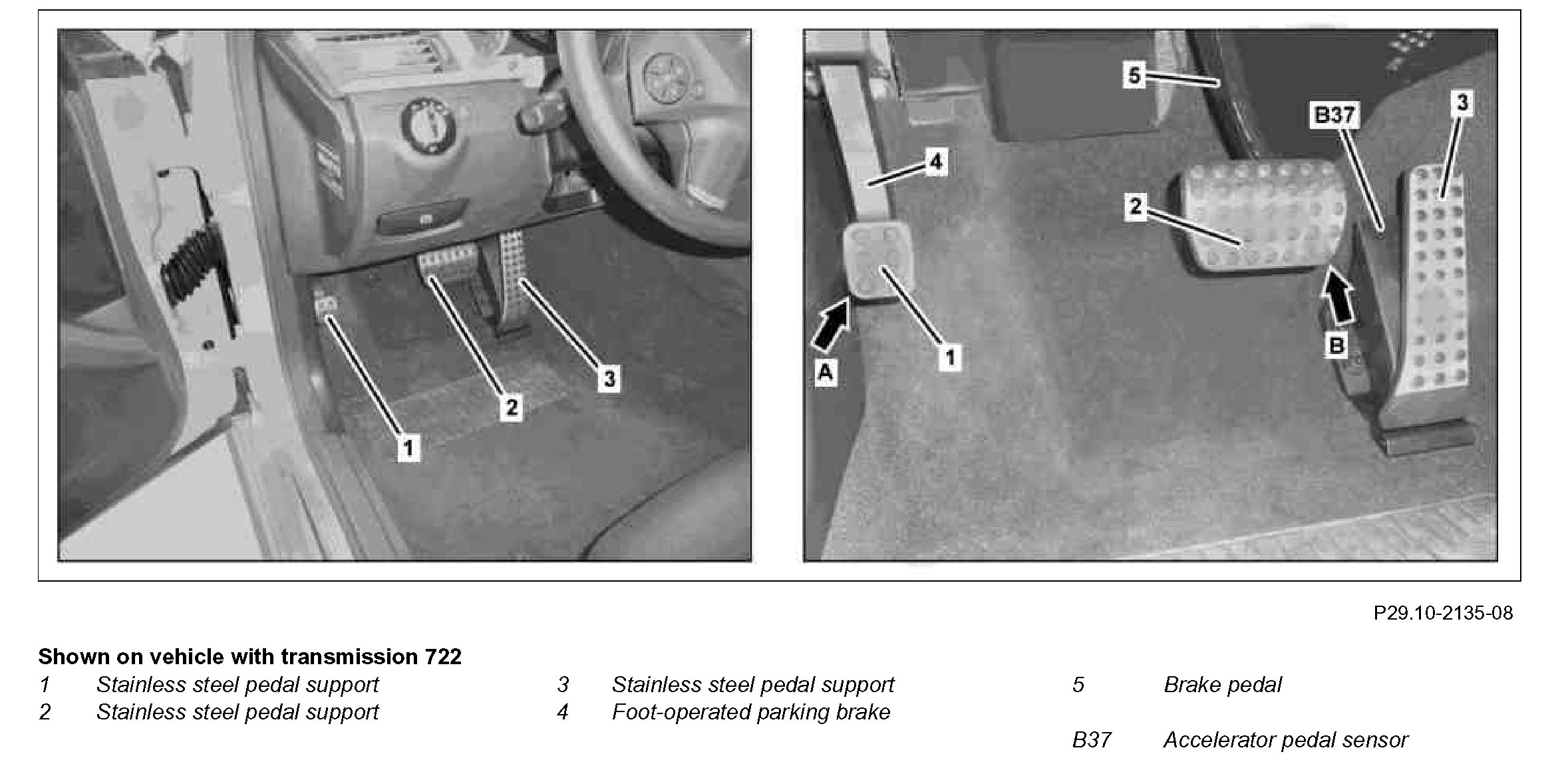

Component Identification:





Shown on vehicle with transmission 722

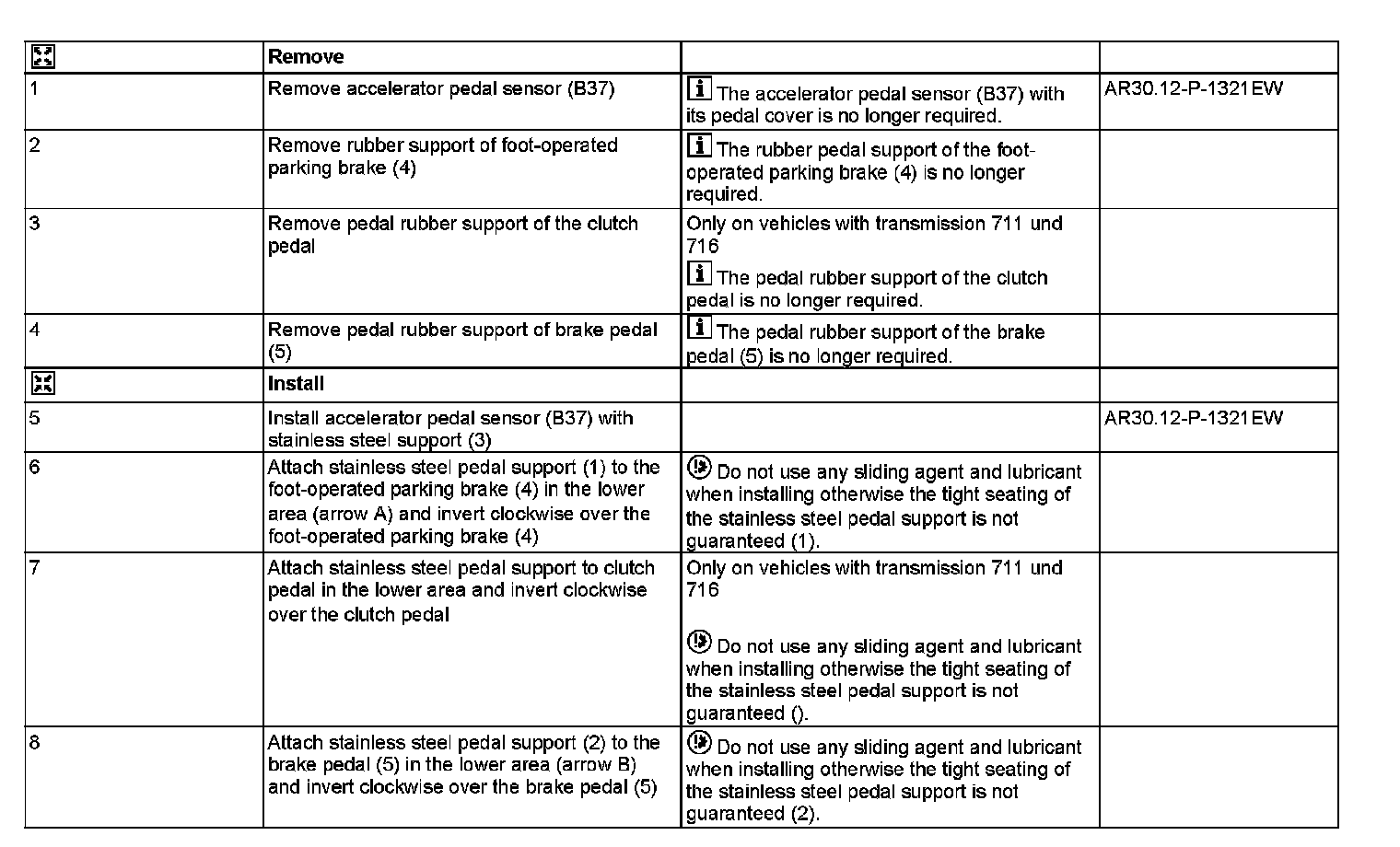

Steps 1-8:

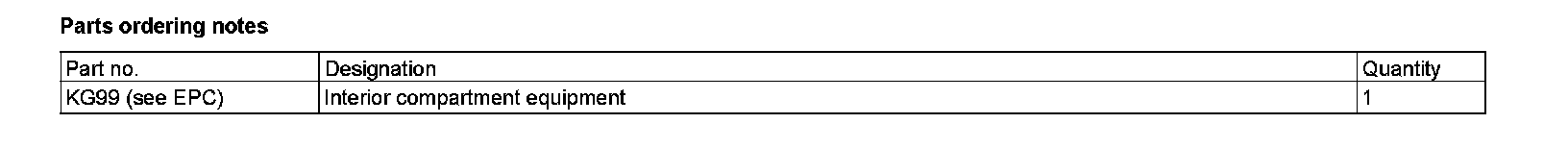

Parts ordering notes:
