Removal and Replacement

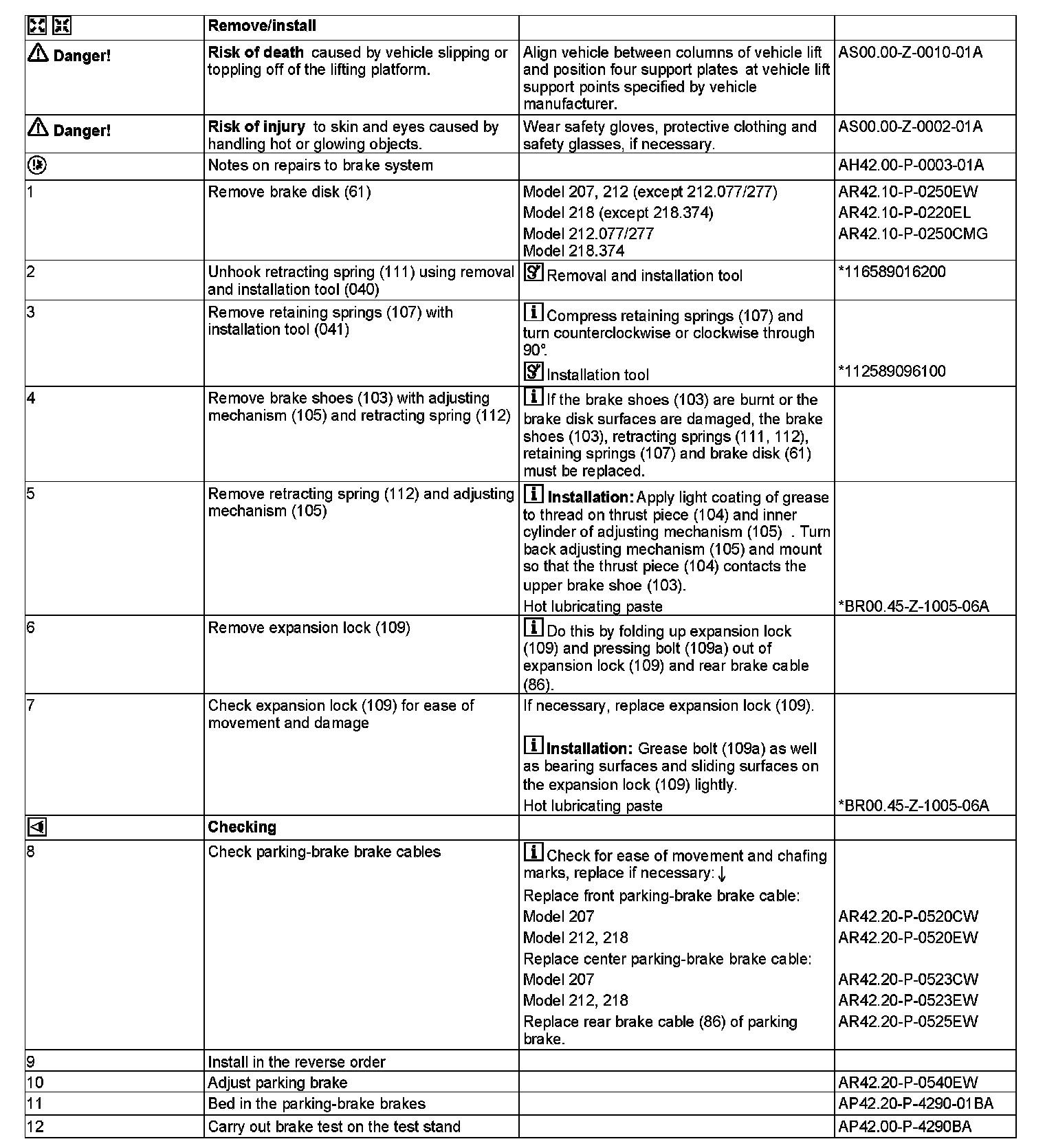

AR42.20-P-0530EW Remove/Install Brake Shoes of Parking Brake
MODEL 207, 212, 218

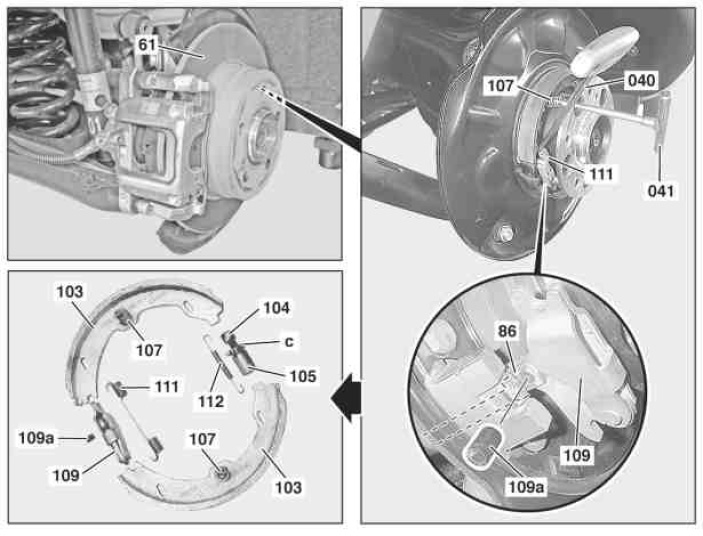

040 Removal and installation tool
041 Installation tool
61 Brake disk
86 Rear brake cable
103 Brake shoes
104 Thrust piece
105 Adjusting mechanism
107 Retaining springs
109 Expansion lock
109a Pin
111 Return spring
112 Return spring

c Thumbwheel











116 589 01 62 00
Removal and installation tool





112 589 09 61 00
Installation tool
