Parking Brake Pedal: Service and Repair
AR42.20-P-0510EW Remove/install
parking brake pedal
assembly

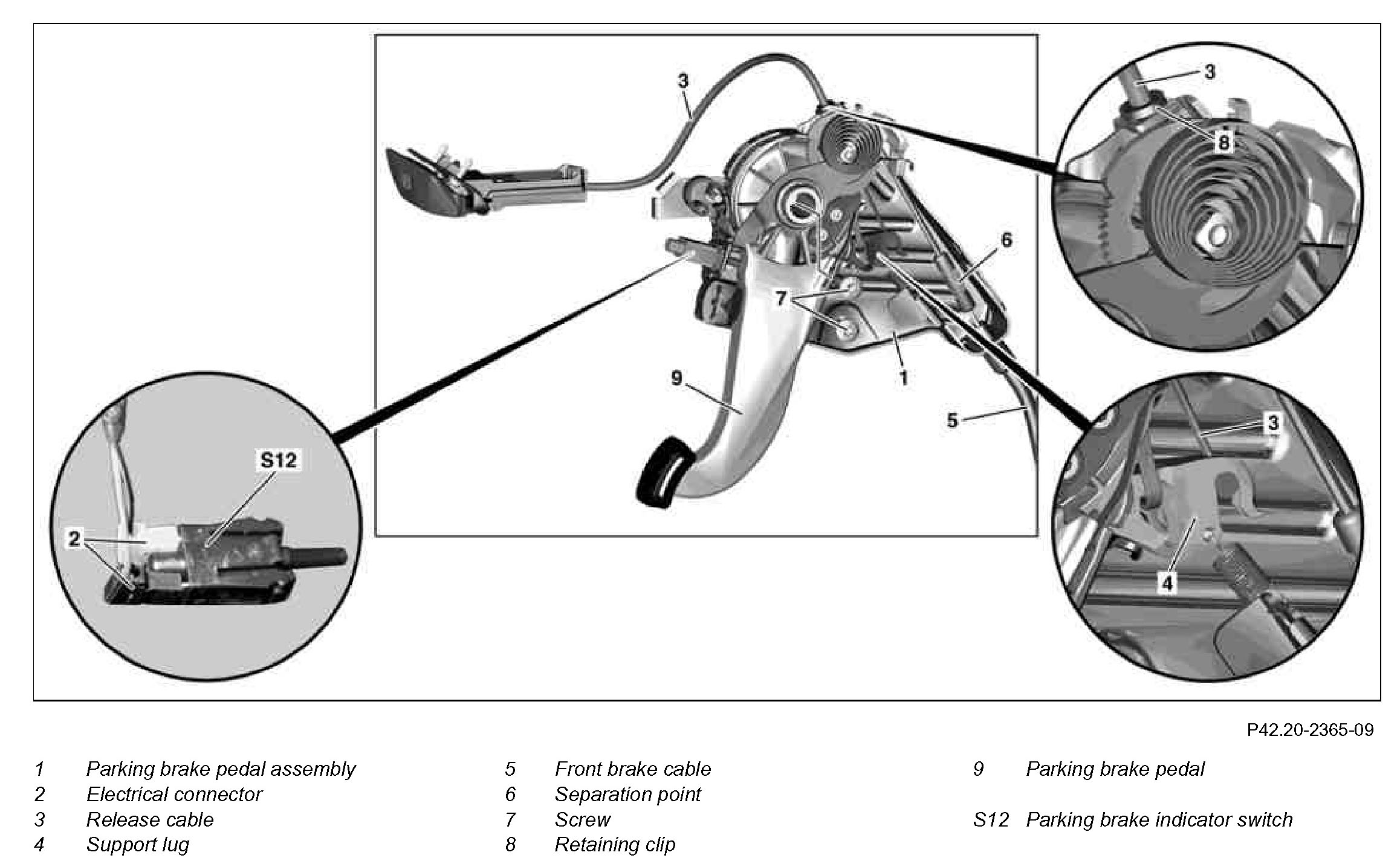

Component Identification:

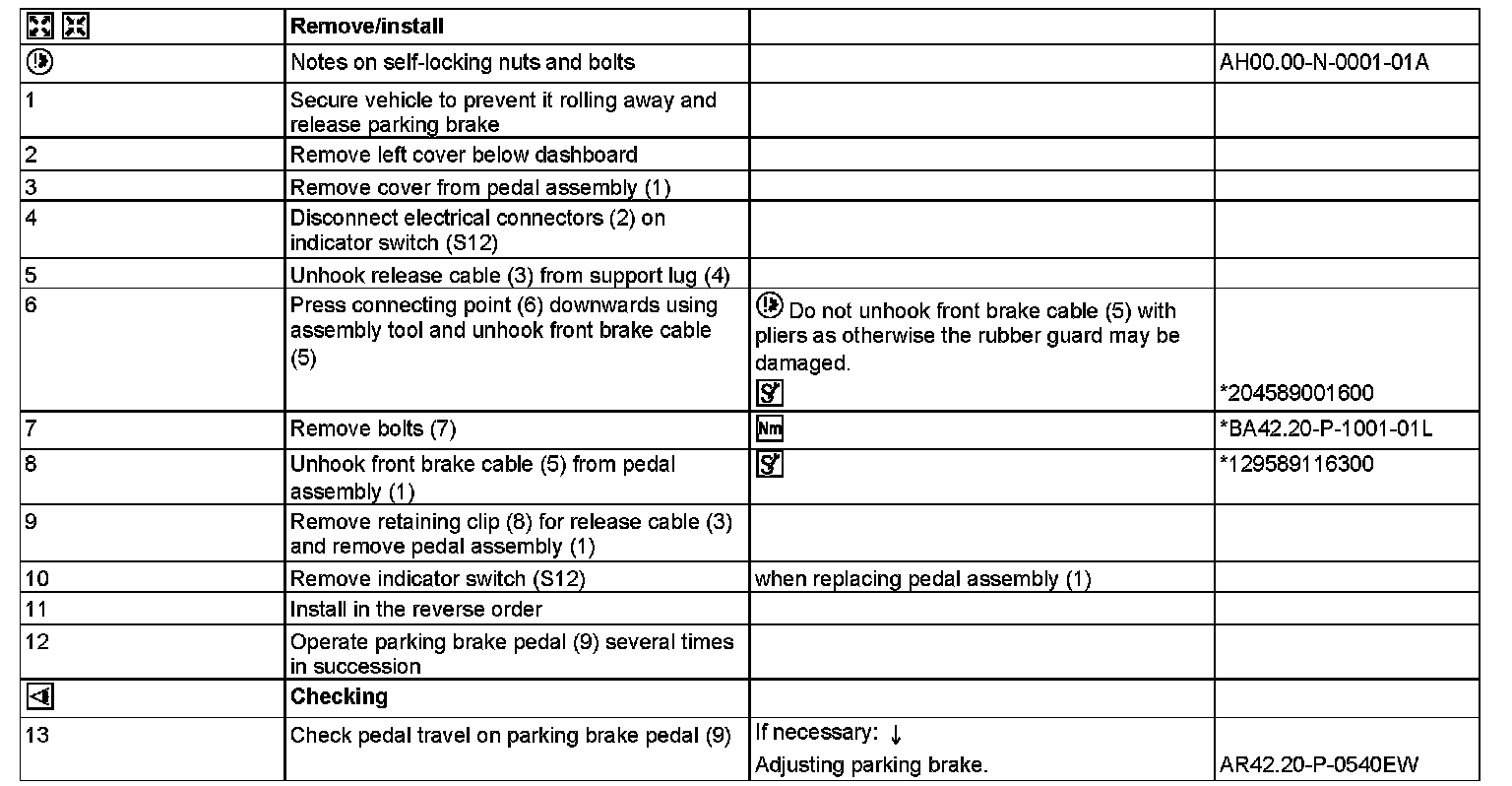

Steps 1-13:

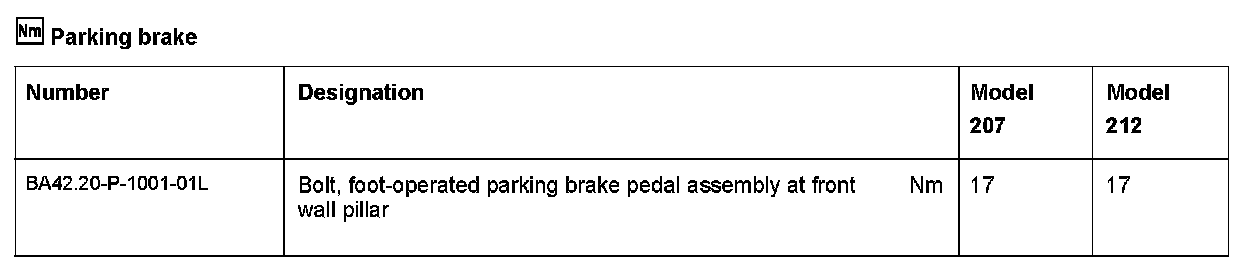

Parking Brake:

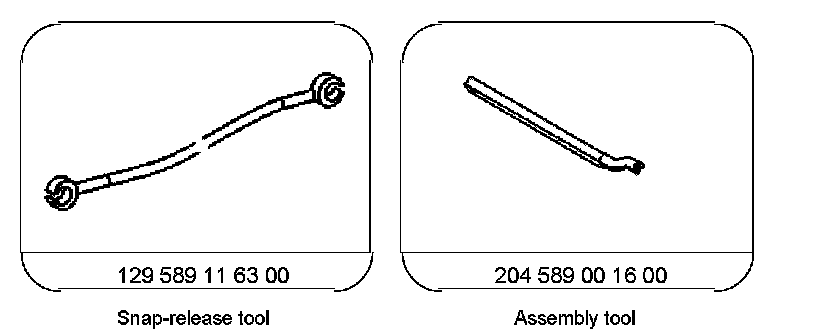

Special Tools:
