AR42.20-P-0520EW Remove/Install Front Brake Control Cable

AR42.20-P-0520EW Remove/Install Front Brake Control Cable
-MODEL 212, 218

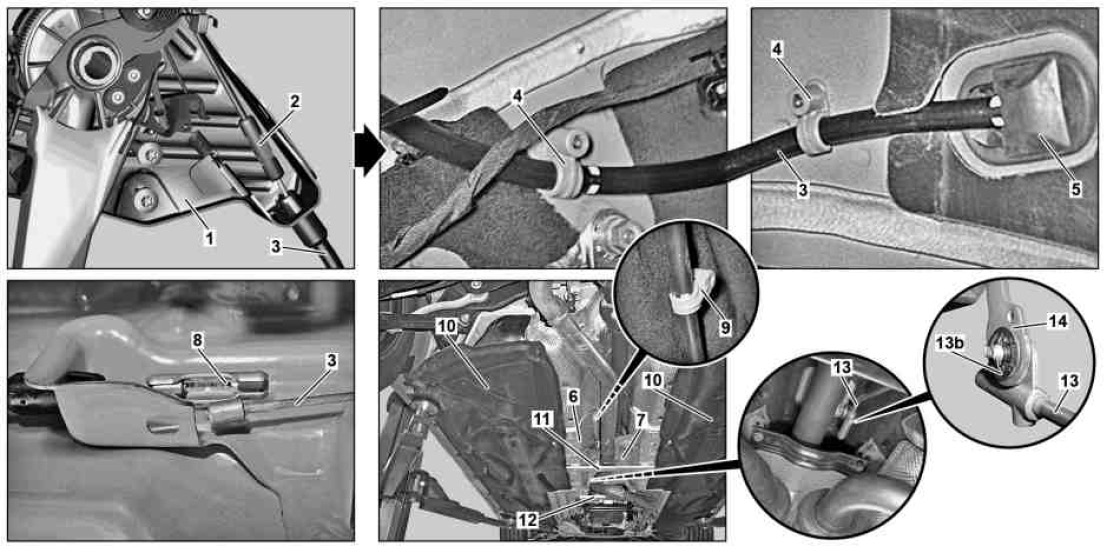

Shown on engine 651

1 Pedal assembly
2 Front separation point
3 Front brake cable
4 Retaining clip
5 Rubber grommet
6 Heat shield
7 Heat shield
8 Center separation point
9 Retaining clip
10 Underfloor paneling
11 Rear reinforcement brace
12 Front reinforcement brace
13 Shift rod
13b Fuse
14 Intermediate lever

















129 589 11 63 00
Snap-release tool





204 589 00 16 00
Assembly tool
