AR42.45-P-0820-02EW Detach/Mount Connector

AR42.45-P-0820-02EW Detach/mount connector
- except CODE (233) Distronic Plus

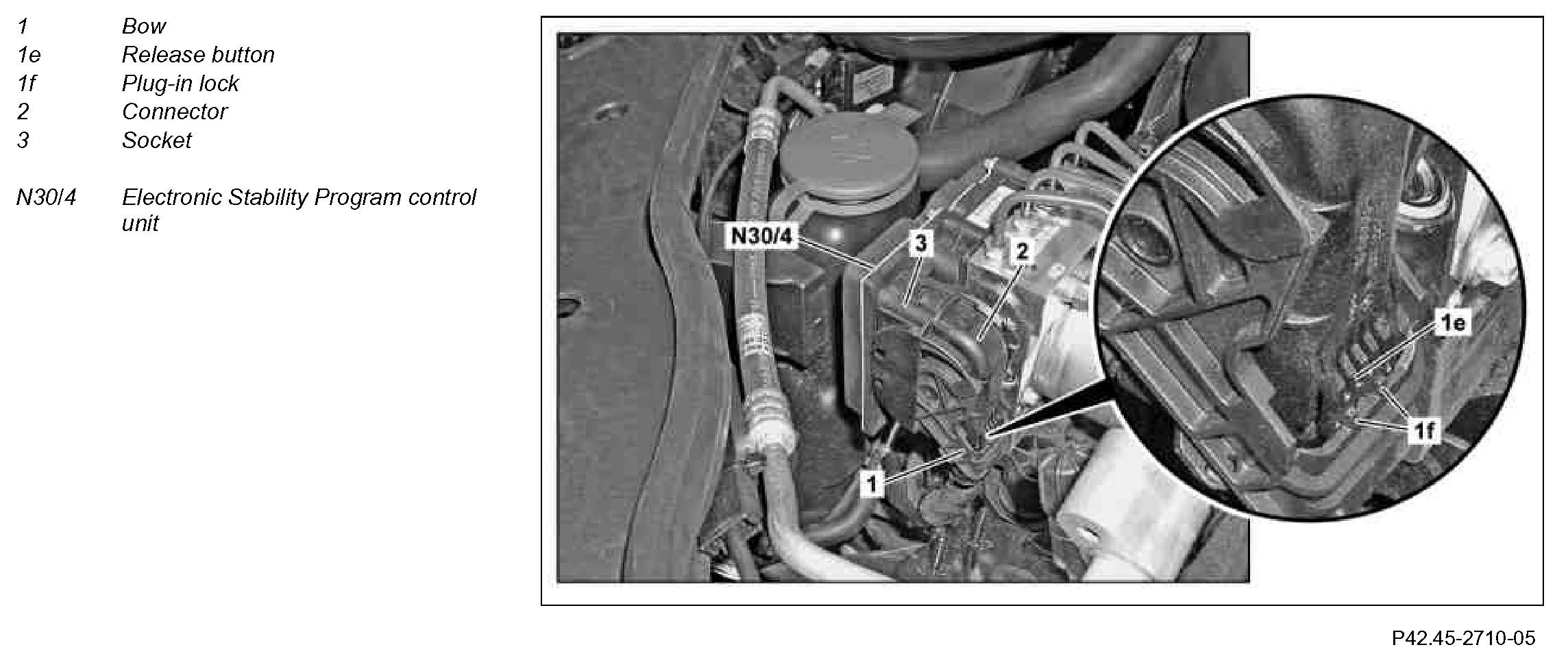

Component Identification:

Disconnect electrical connector
In the event of damage to bracket (1), connector (2) or plug-in lock (1f) it is absolutely essential to replace the corresponding parts, otherwise the connector (2) can detach from the control unit (N30/4).

1 Press release button (1e) carefully, keep pressed and swivel bracket (1) upwards through approx. 90 degrees.

Do not use a tool! The connector (2) is pushed slightly out of the jack (3) on the control unit (N30/4).

2 Pull connector (2) out of jack (3).

In the process do not handle connector (2) at bracket (1) otherwise the bracket (1) may be damaged

3 Swivel bracket (1) downwards until the plug-in lock (1f) locks in position.

Connect electrical connector
4 Swivel bracket (1) upwards approx. 90 degrees.
5 Insert connector (2) in bushing (3) on control unit (N30/4) until this contacts the base of bushing (3) evenly over the entire length.

In the process do not handle connector (2) on bracket (1) otherwise the bracket (1) may be damaged

6 Swivel bracket (1) downwards until the plug-in lock (1f) locks in position.

The connector (2) is drawn into its end position and locked.
