Brake Master Cylinder: Service and Repair

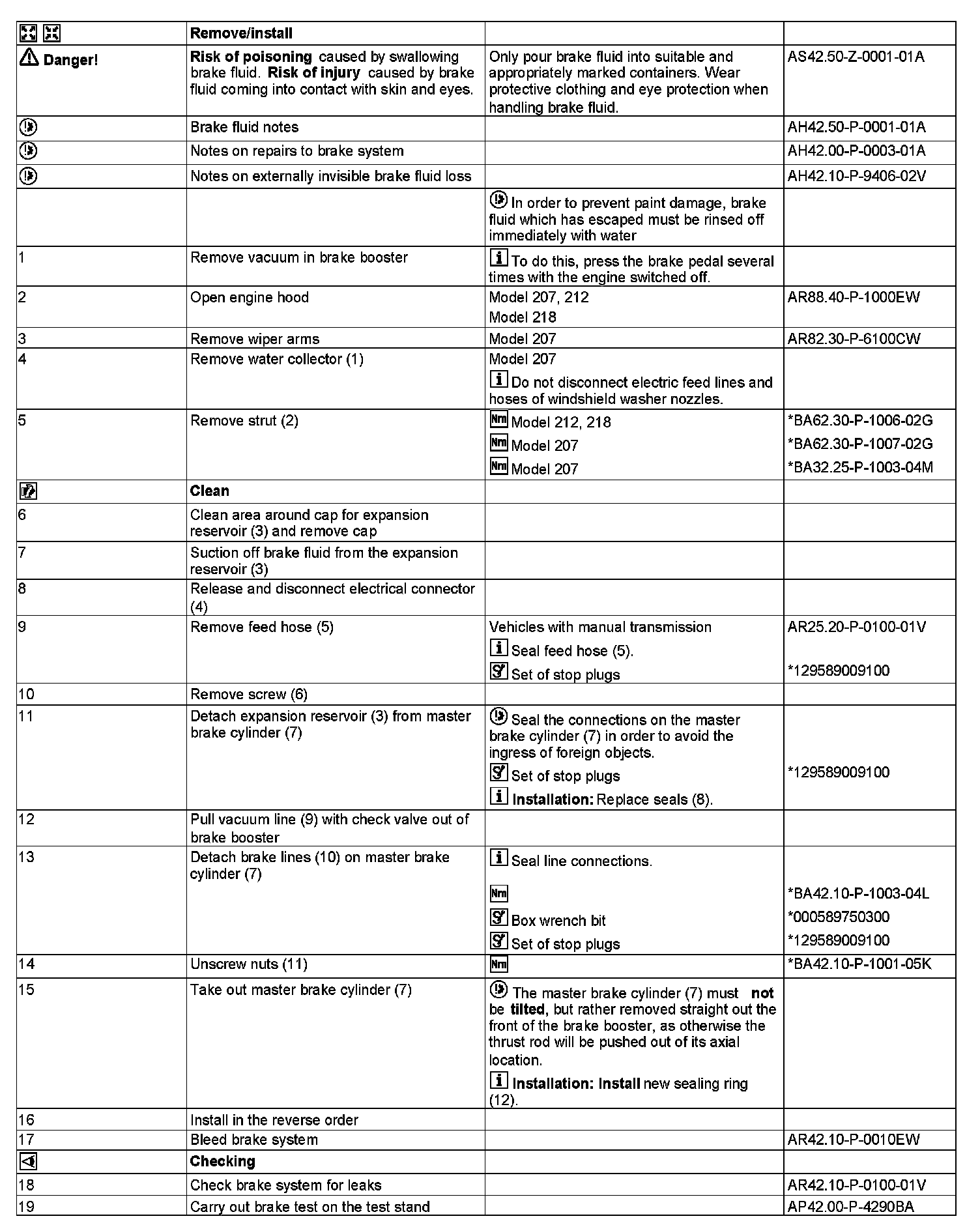

AR42.10-P-0300EW Remove/Install Master Brake Cylinder
MODEL 207, 212, 218

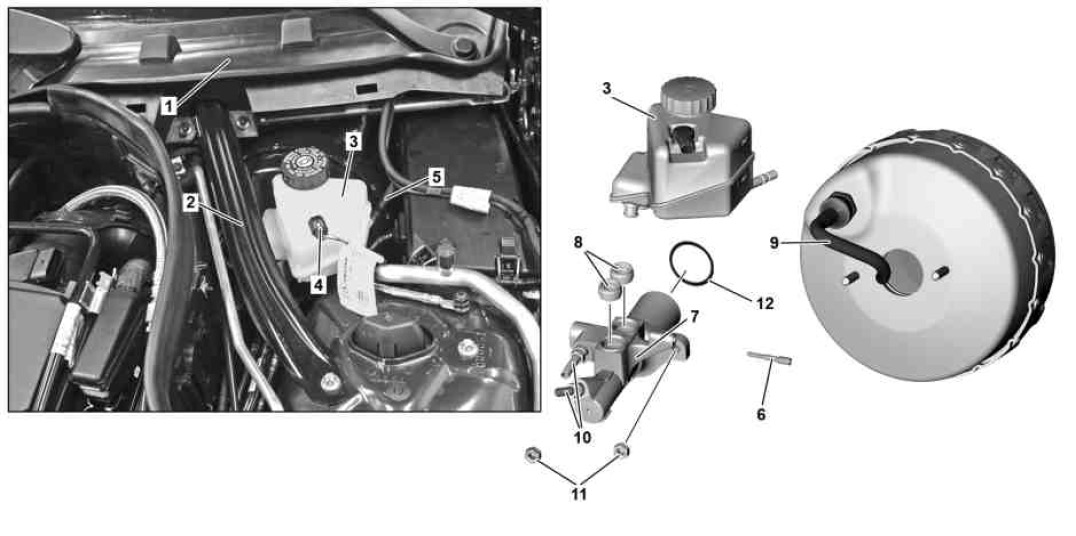

1 Water collector

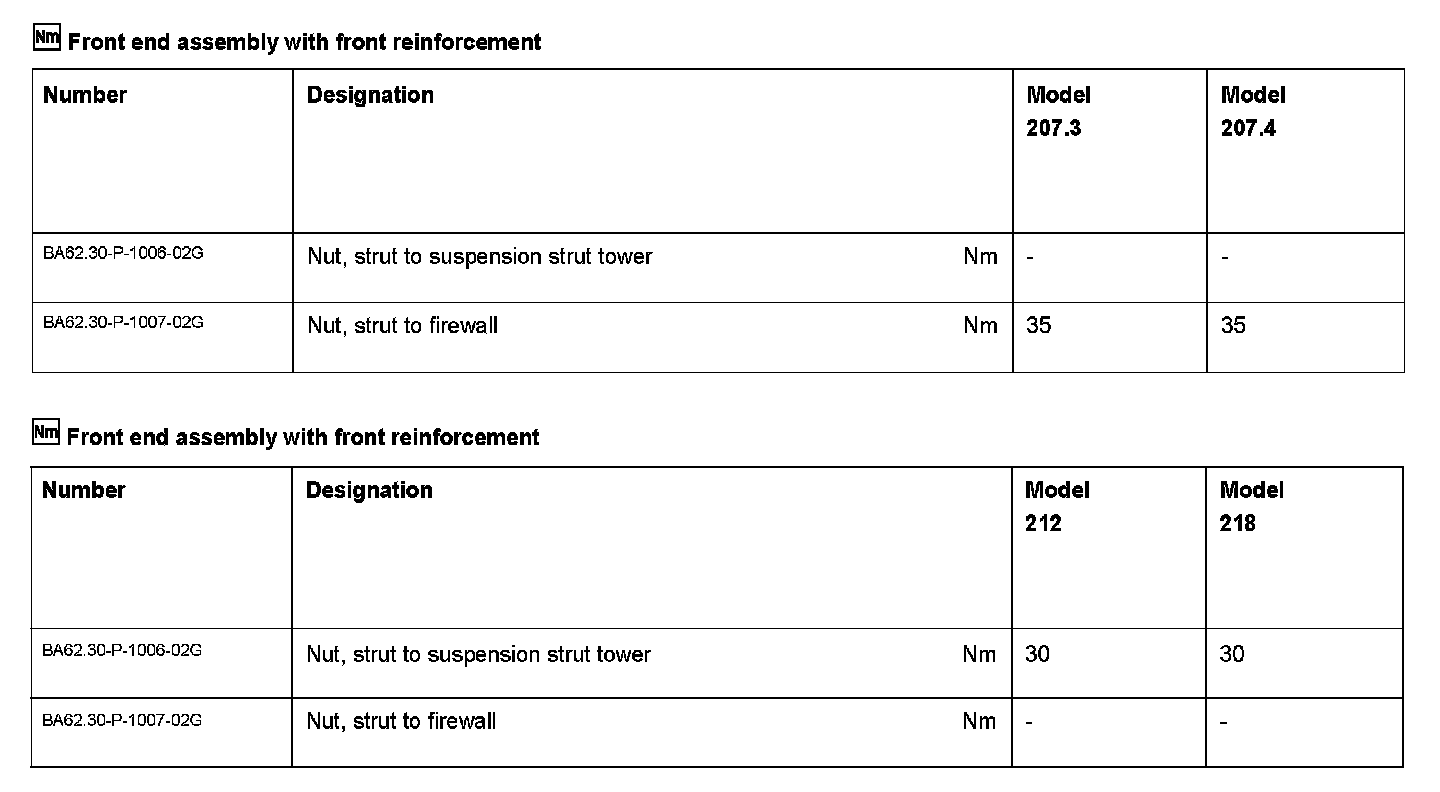

2 Strut
3 Expansion reservoir
4 Electrical connector
5 Feed hose
6 Screw

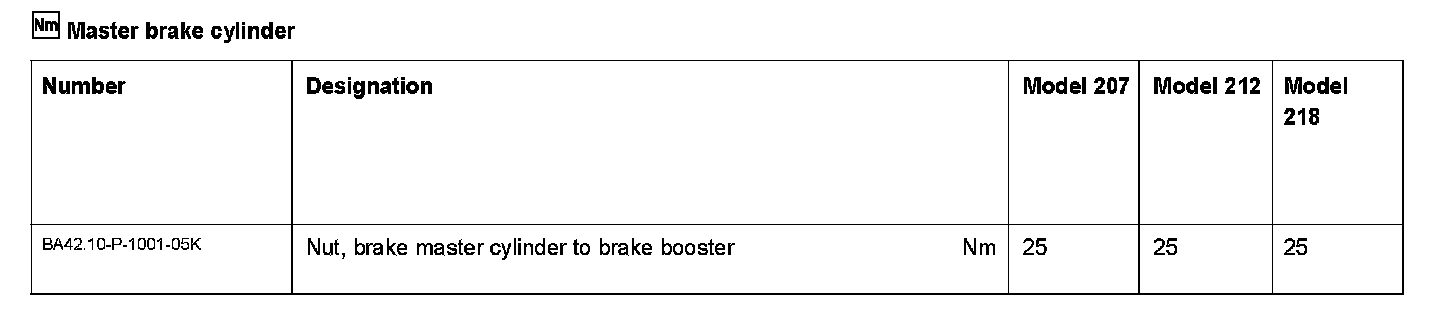

7 Master brake cylinder
8 Gasket
9 Vacuum line

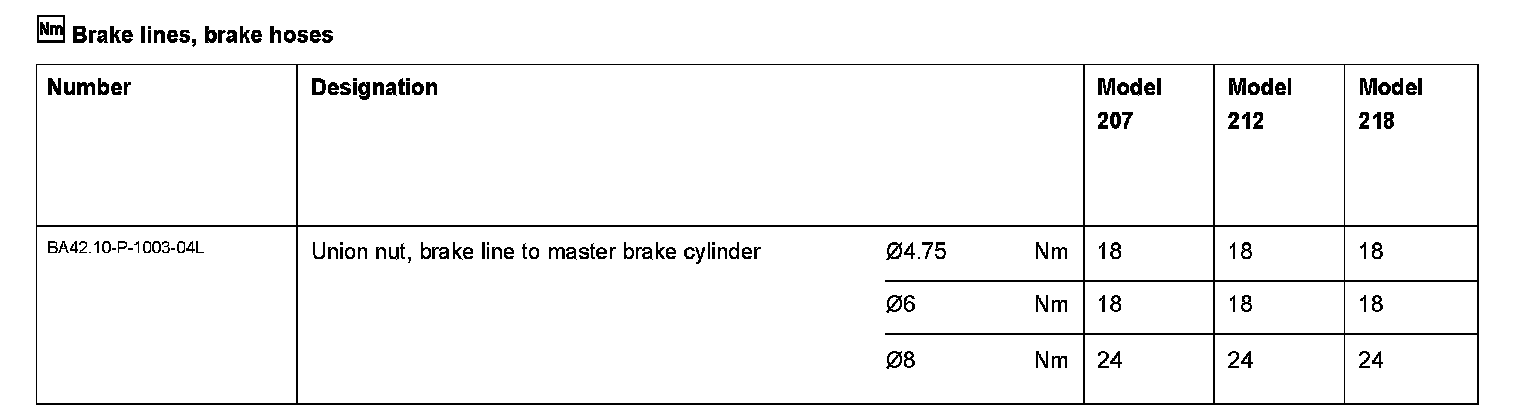

10 Brake line
11 Nut
12 Sealing ring


























000 589 75 03 00
Box wrench bit





129 589 00 91 00
Set of stop plugs
