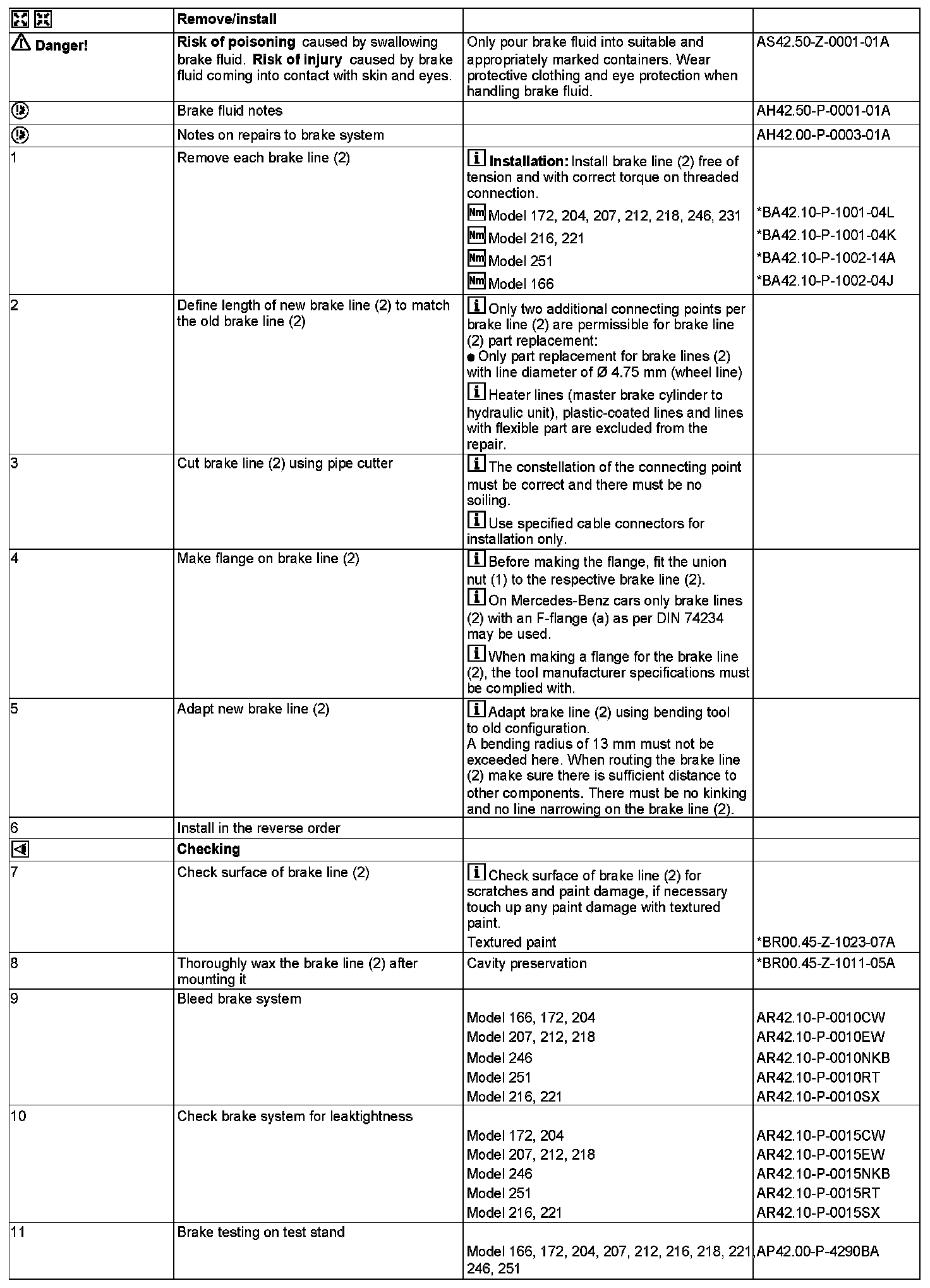

AR42.10-P-0020B Replace Brake Lines

AR42.10-P-0020B Replace Brake Lines
MODEL 166, 172, 204, 207, 212, 216, 218, 221, 231, 246, 251

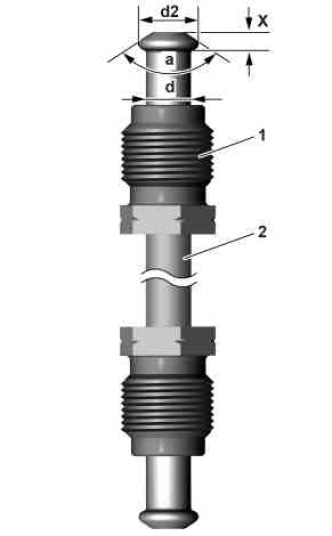

1 Union nut
2 Brake line
A F-flange (115°)
d Line diameter diameter 4.75 mm
d2 Flange diameter (diameter = 7.1 F 0.18 mm)
X Flange height (Height= 2.3 F 0.3 mm)
