AP42.10-P-4258EW Inspect Condition of Brake Disks

AP42.10-P-4258EW Inspect Condition of Brake Disks
MODEL 207
MODEL 212
- except CODE (B07) Ceramic brake system
MODEL 218
- except CODE (B07) Ceramic brake system

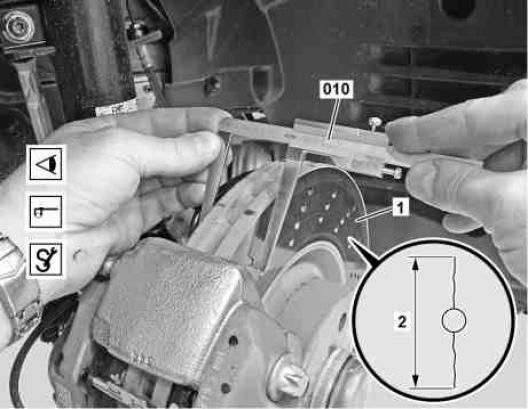

Shows model 212

010 Measuring caliper
1 Brake disk
2 Crack length























140 589 00 19 00
Vernier caliper
