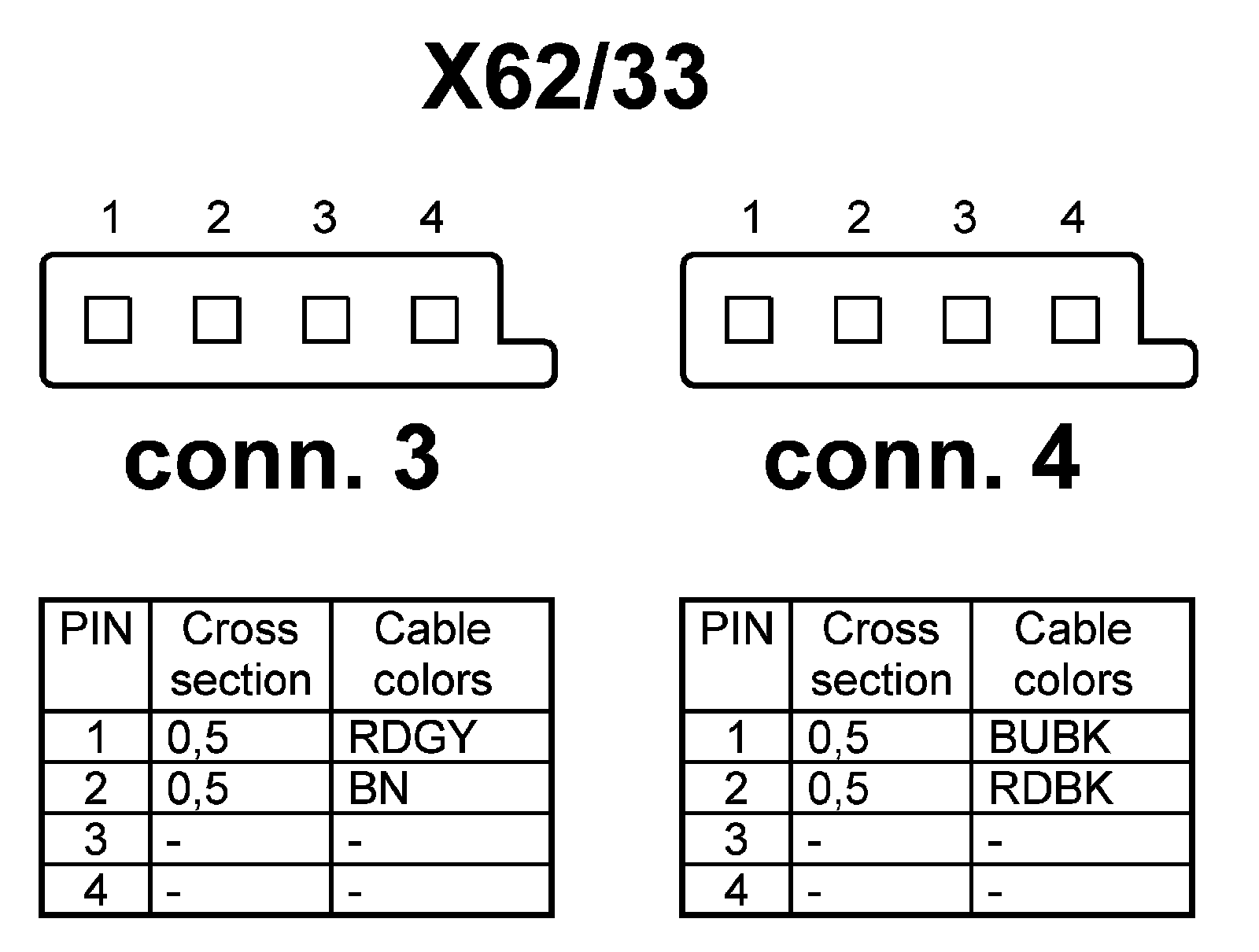

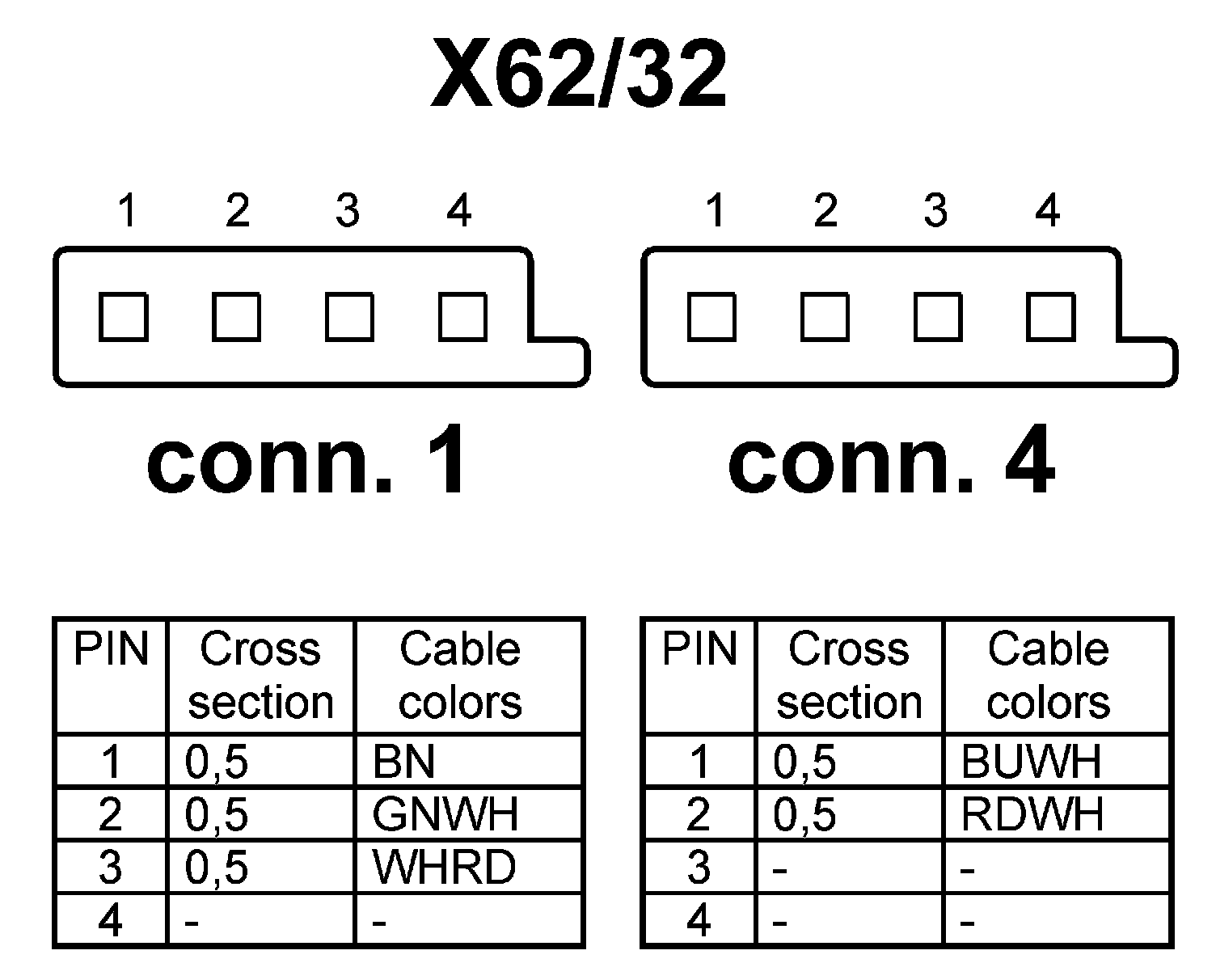

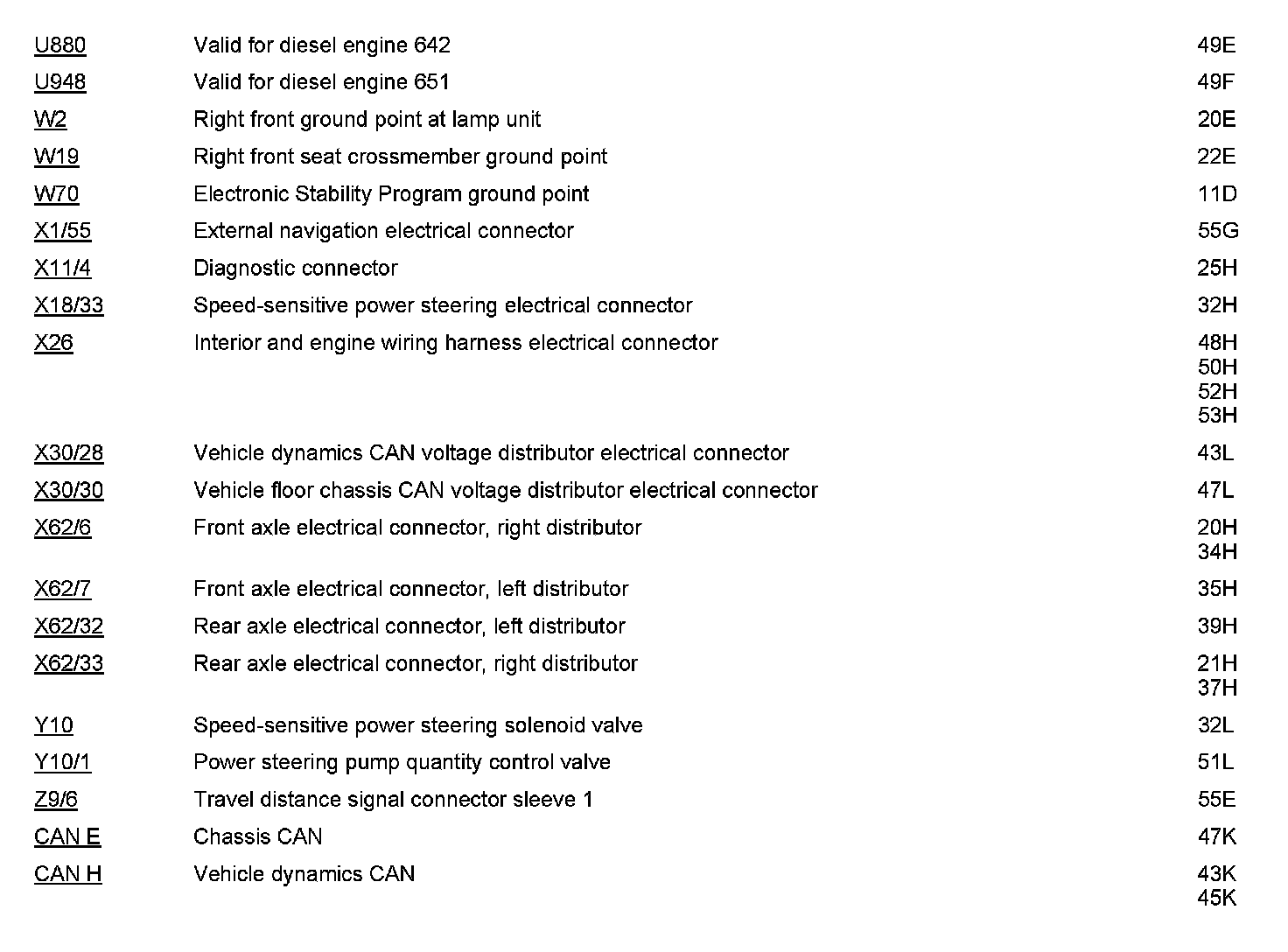

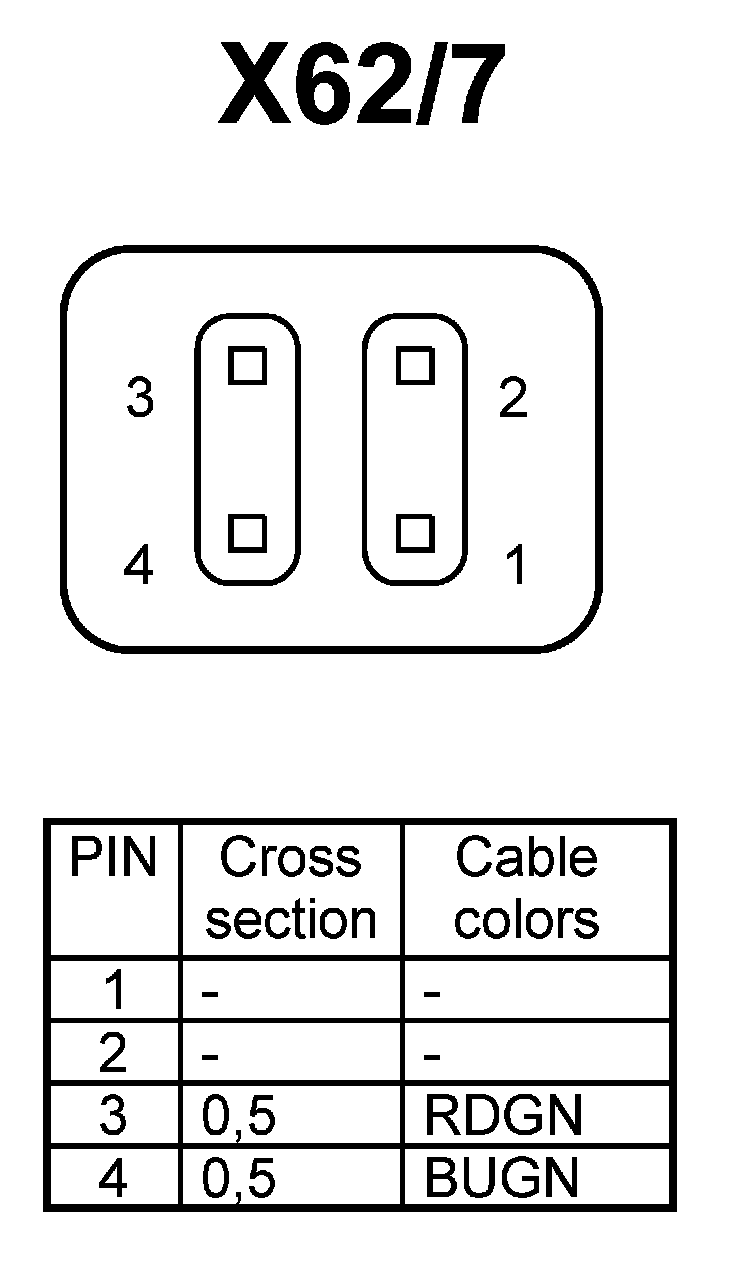

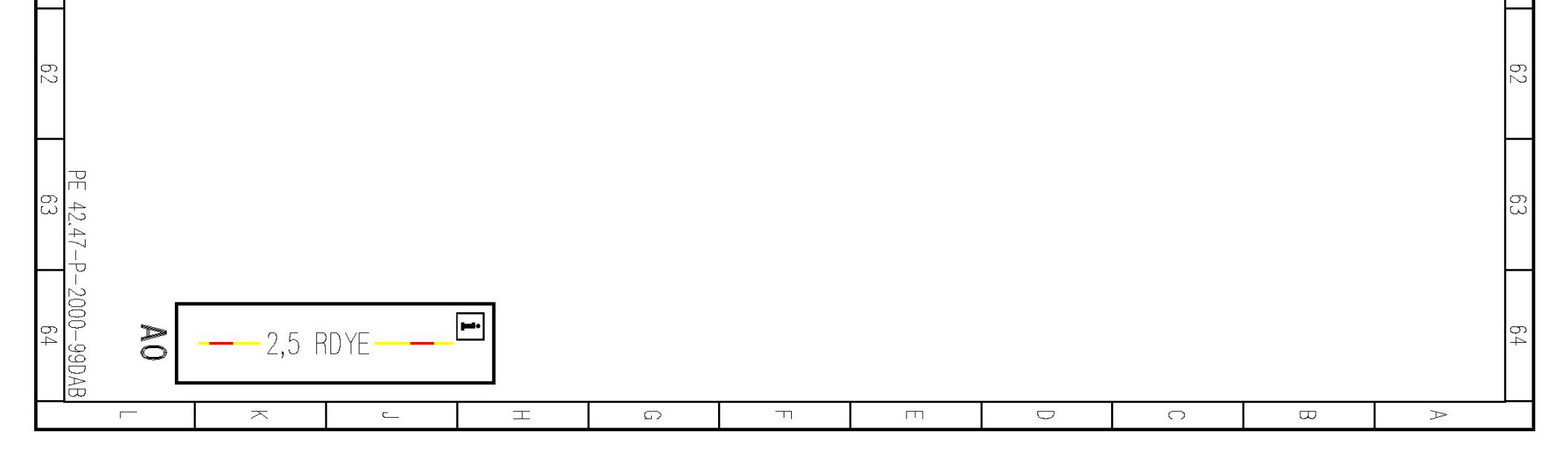

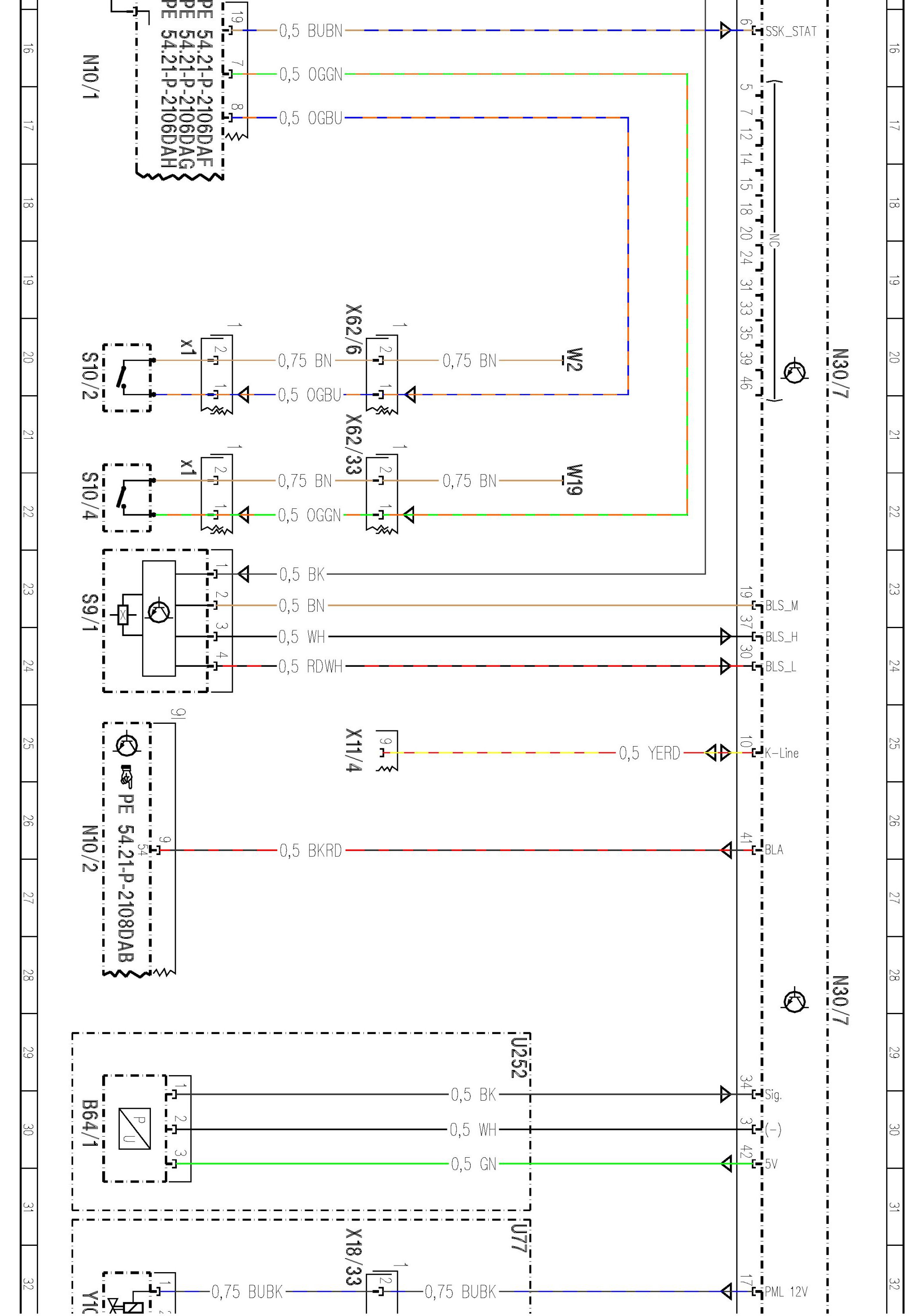

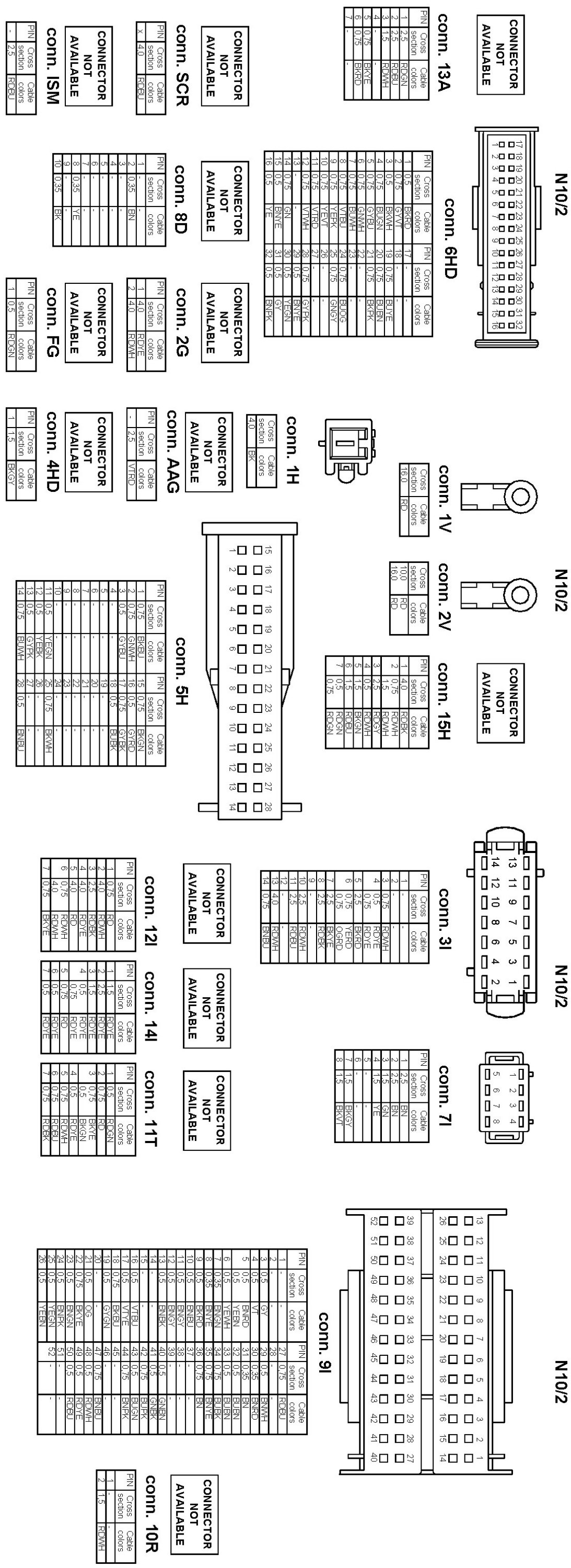

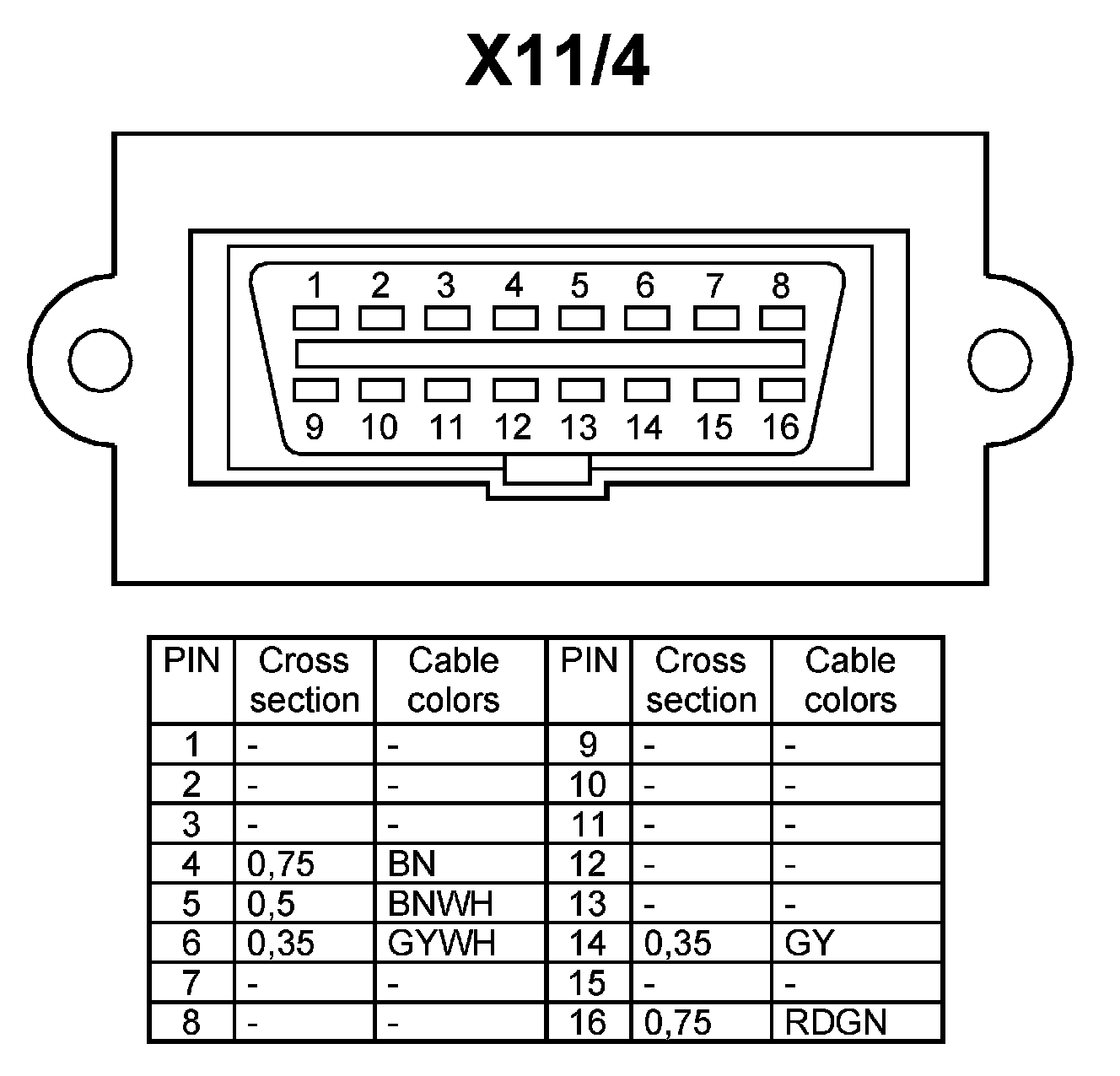

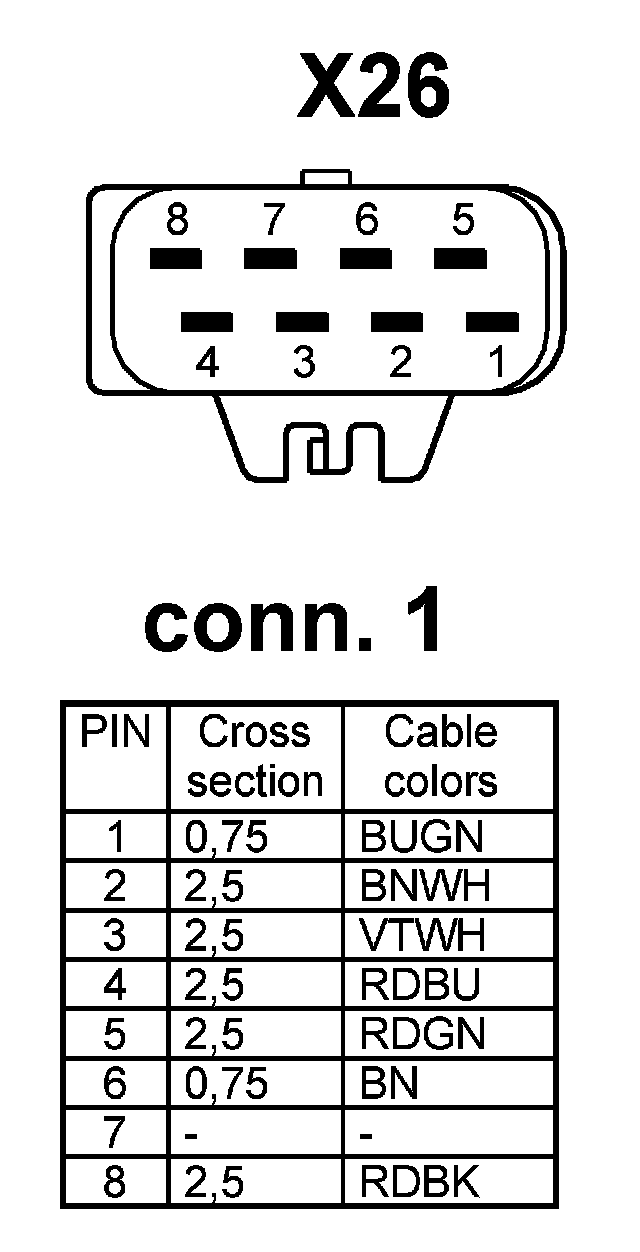

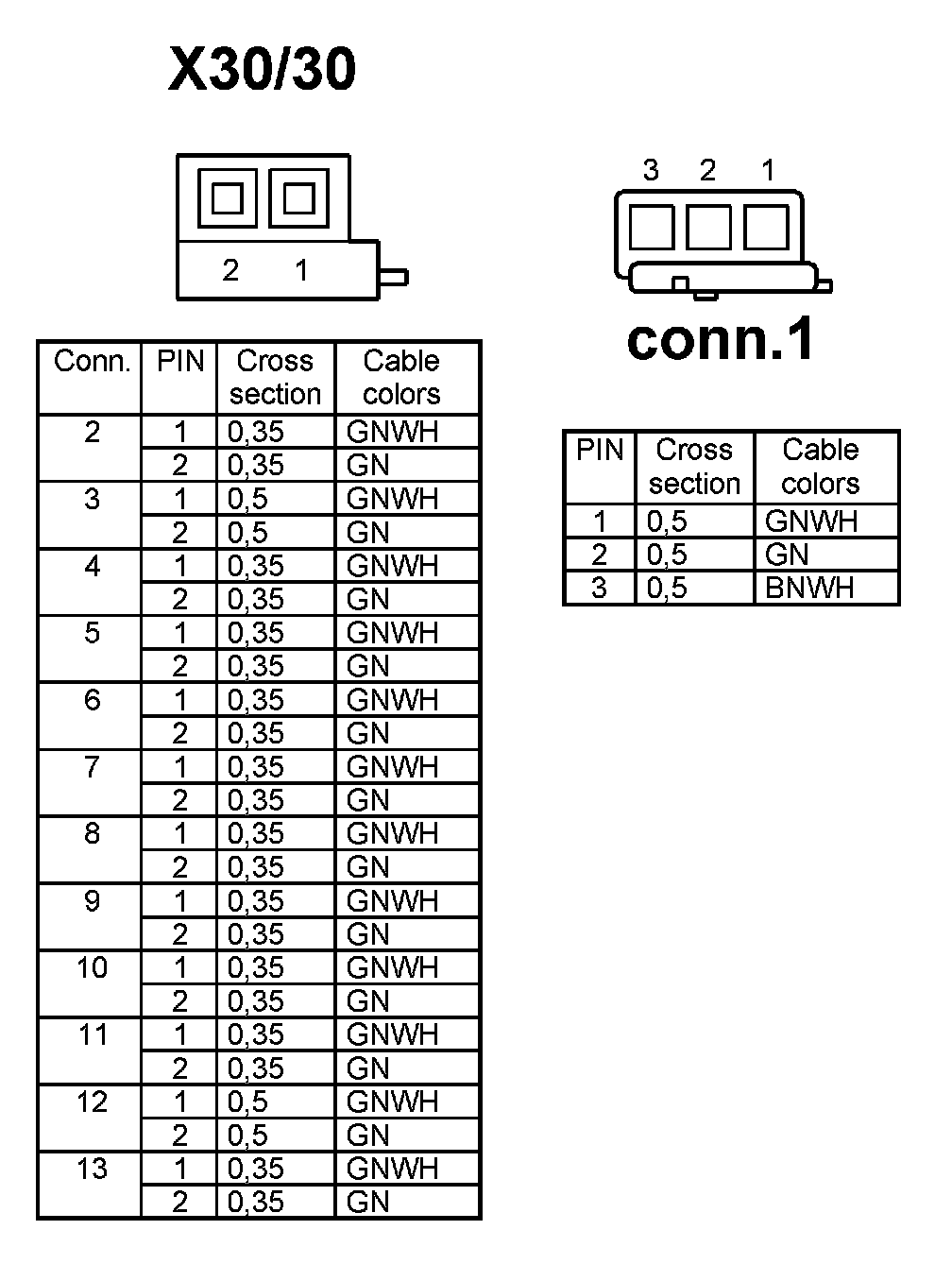

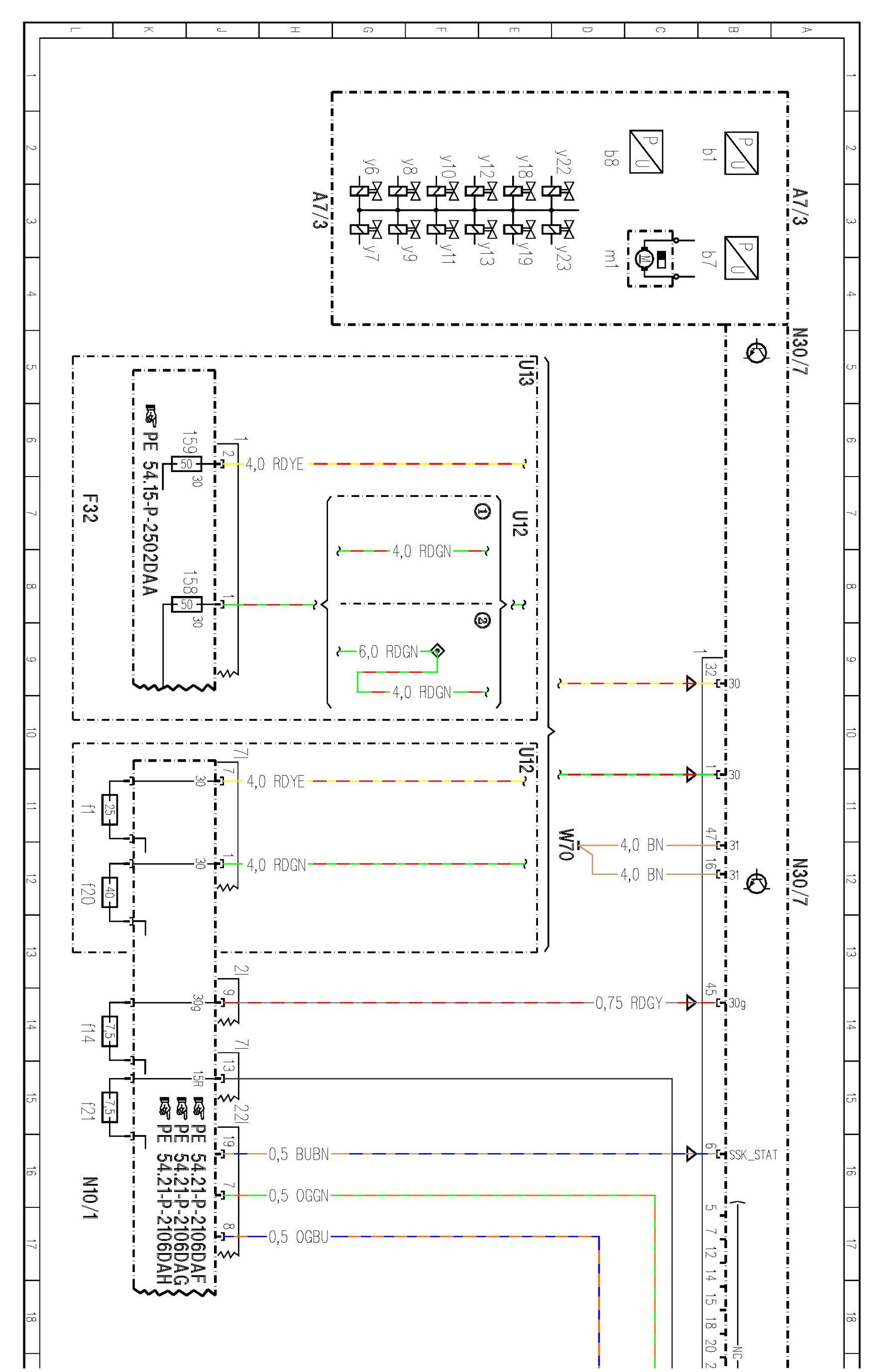

PE42.47-P-2000DAB Adaptive Brake (ABR)



PE42.47-P-2000DAB Adaptive Brake (ABR)
MODEL 212.0 /2

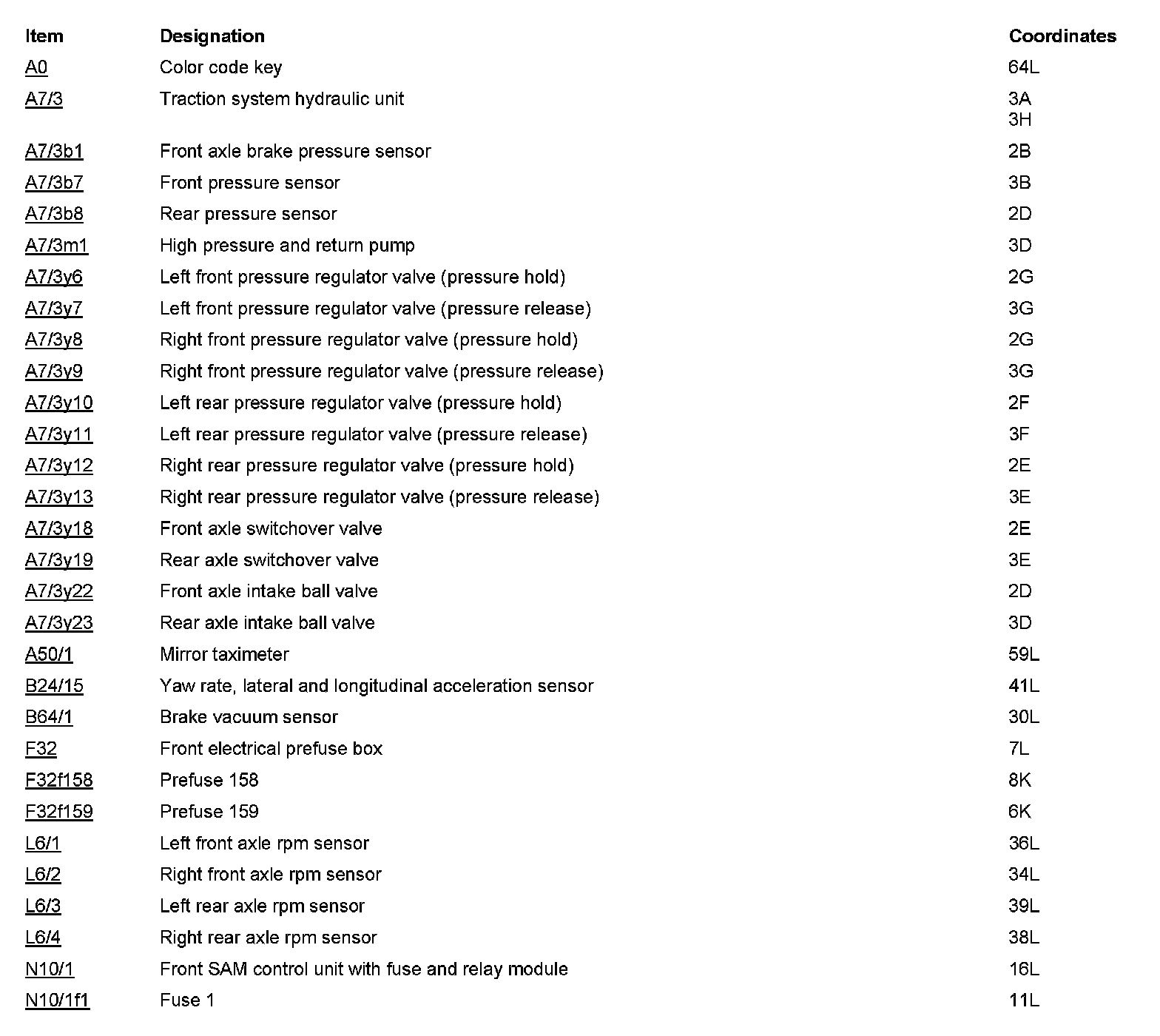

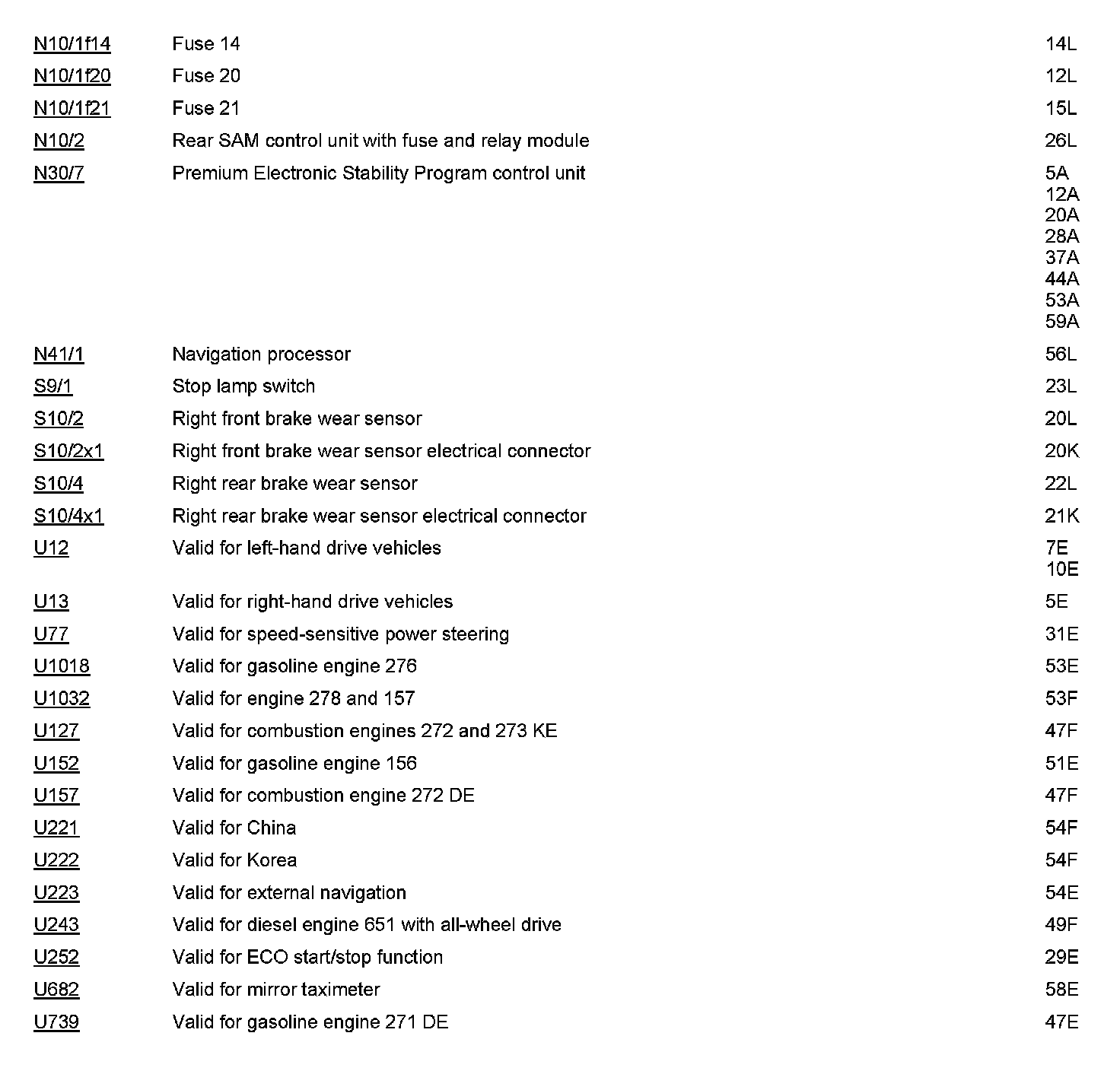

- control unit N30/7, A7/3, Electronic Stability Program (ESP) premium


























































































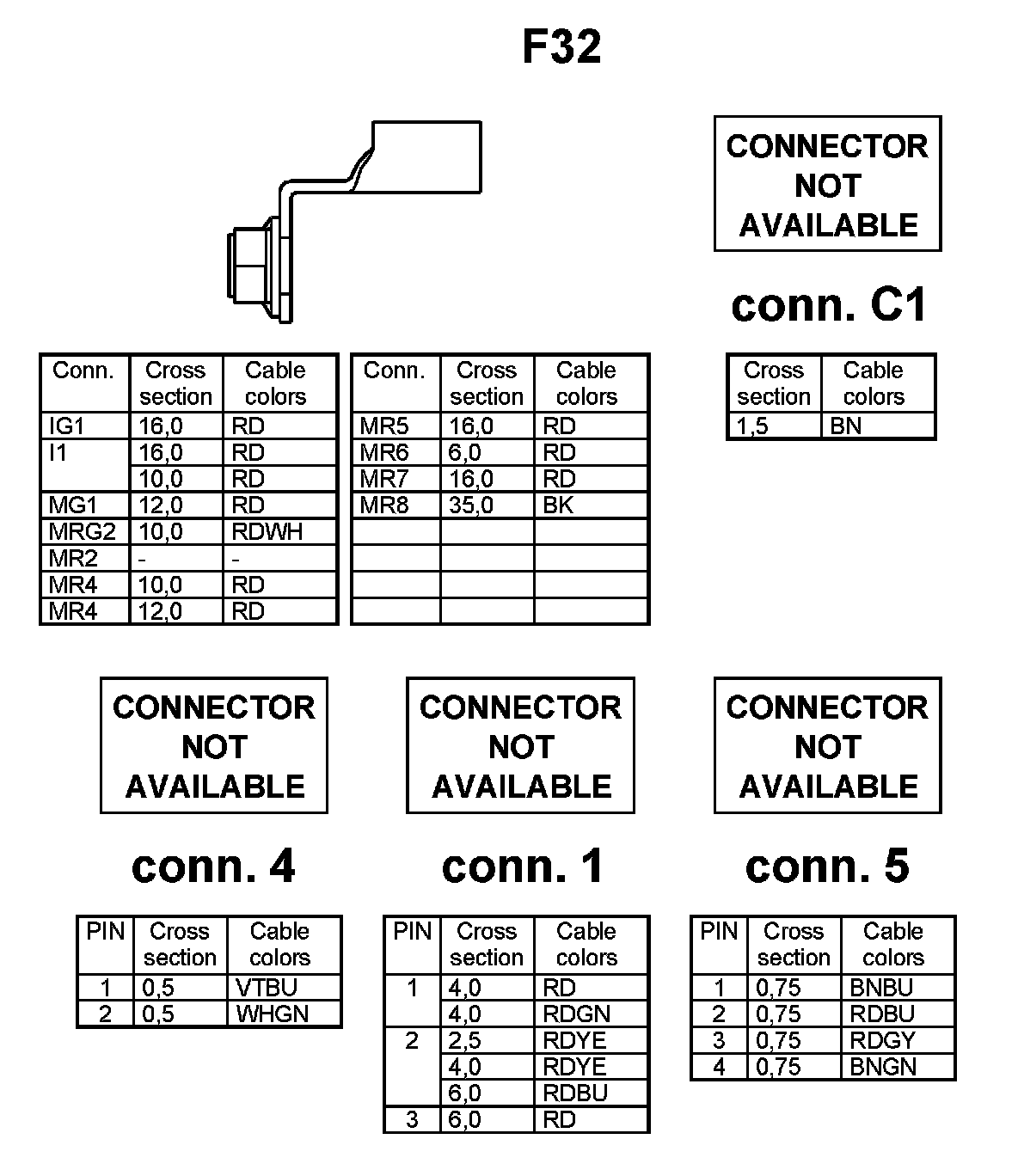

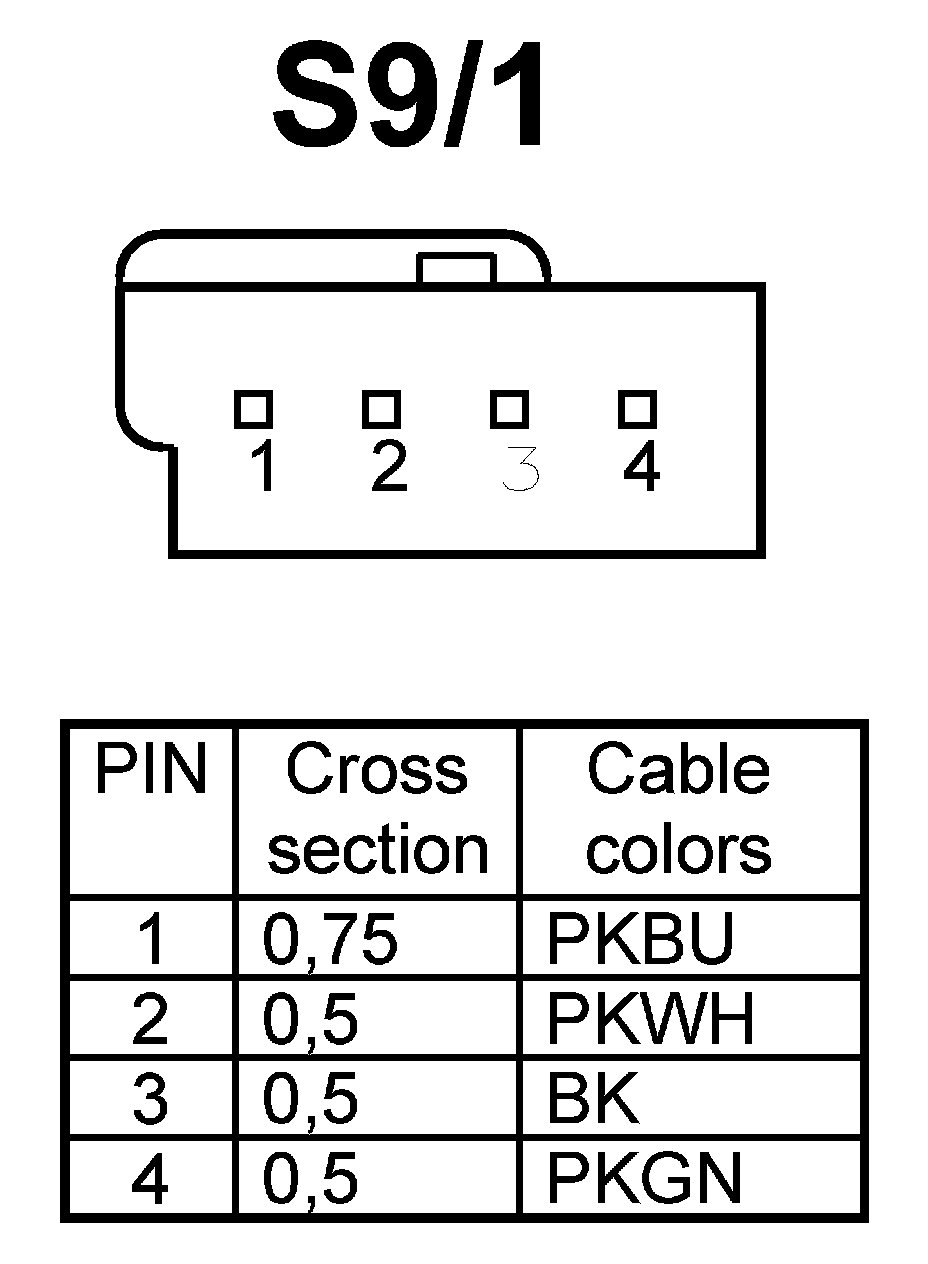

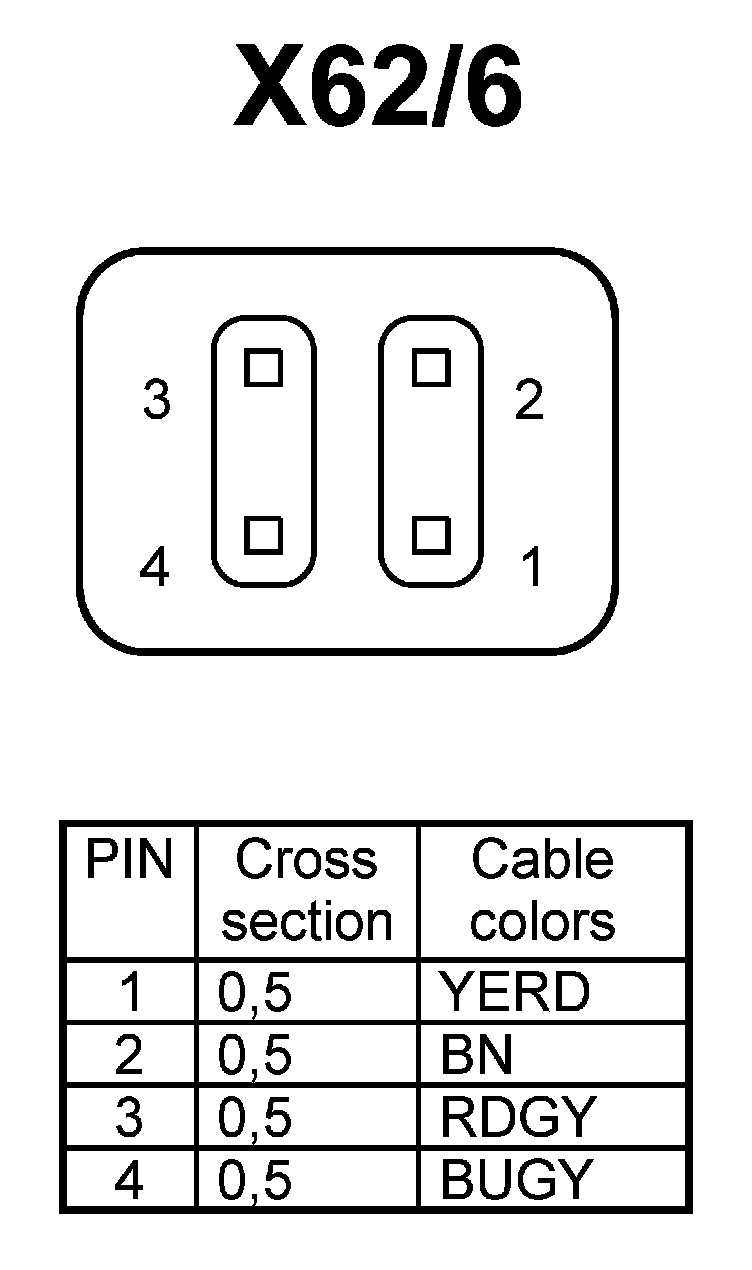

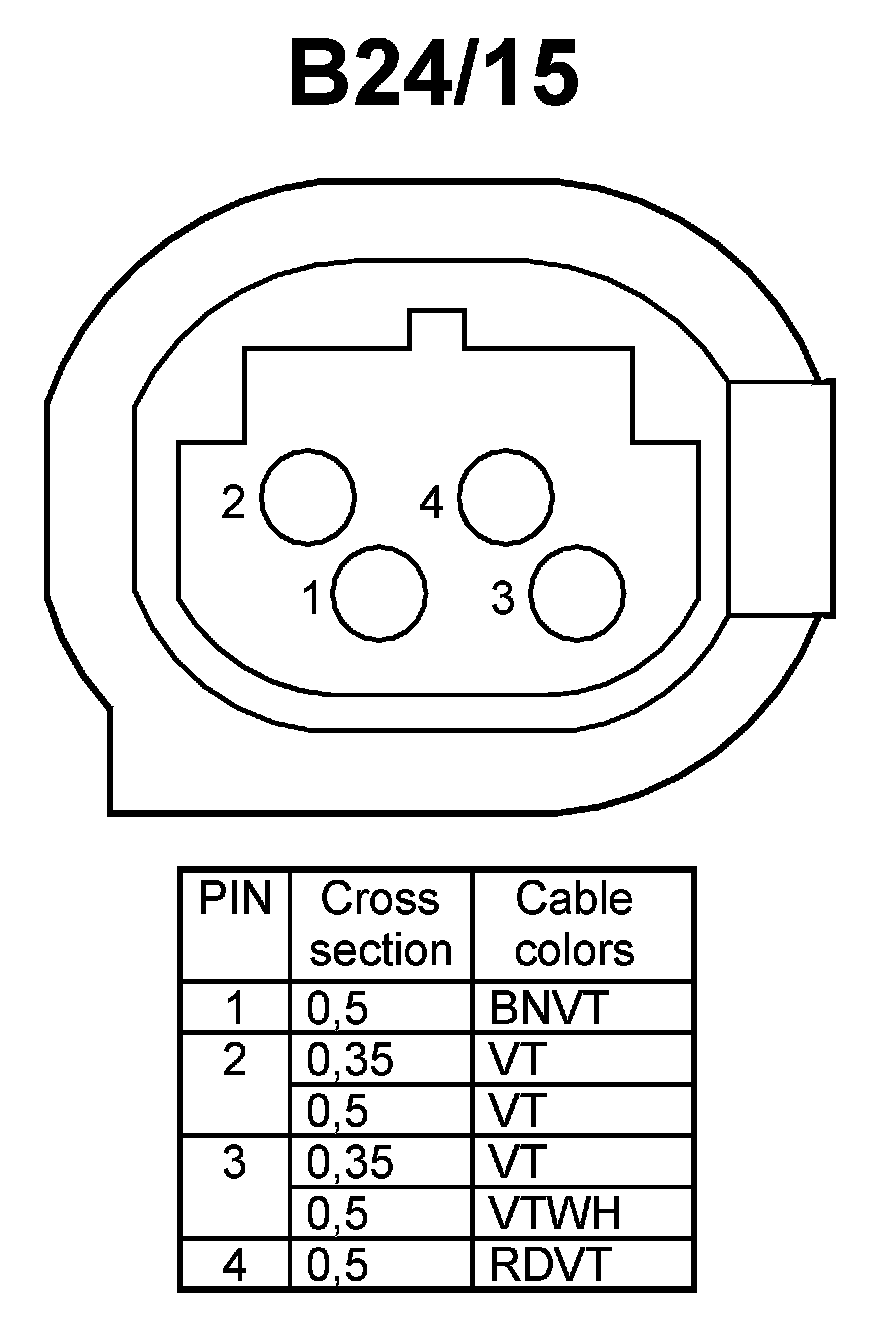

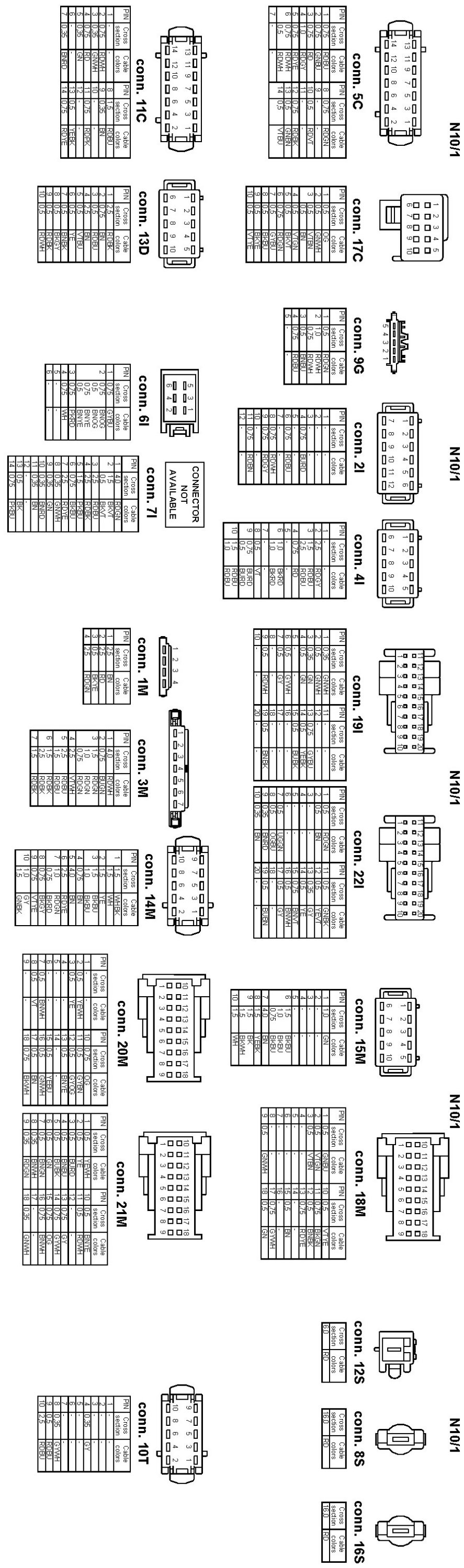

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
