AR72.12-P-1911CW Remove/Install Sealing For Crank Window on Rear Door
AR72.12-P-1911CW Remove/Install Sealing For Crank Window on Rear Door
AR72.12-P-1911CW Remove/install Sealing For Crank Window On Rear Door
- except CODE (Z04) Light armoring [models 212.0]

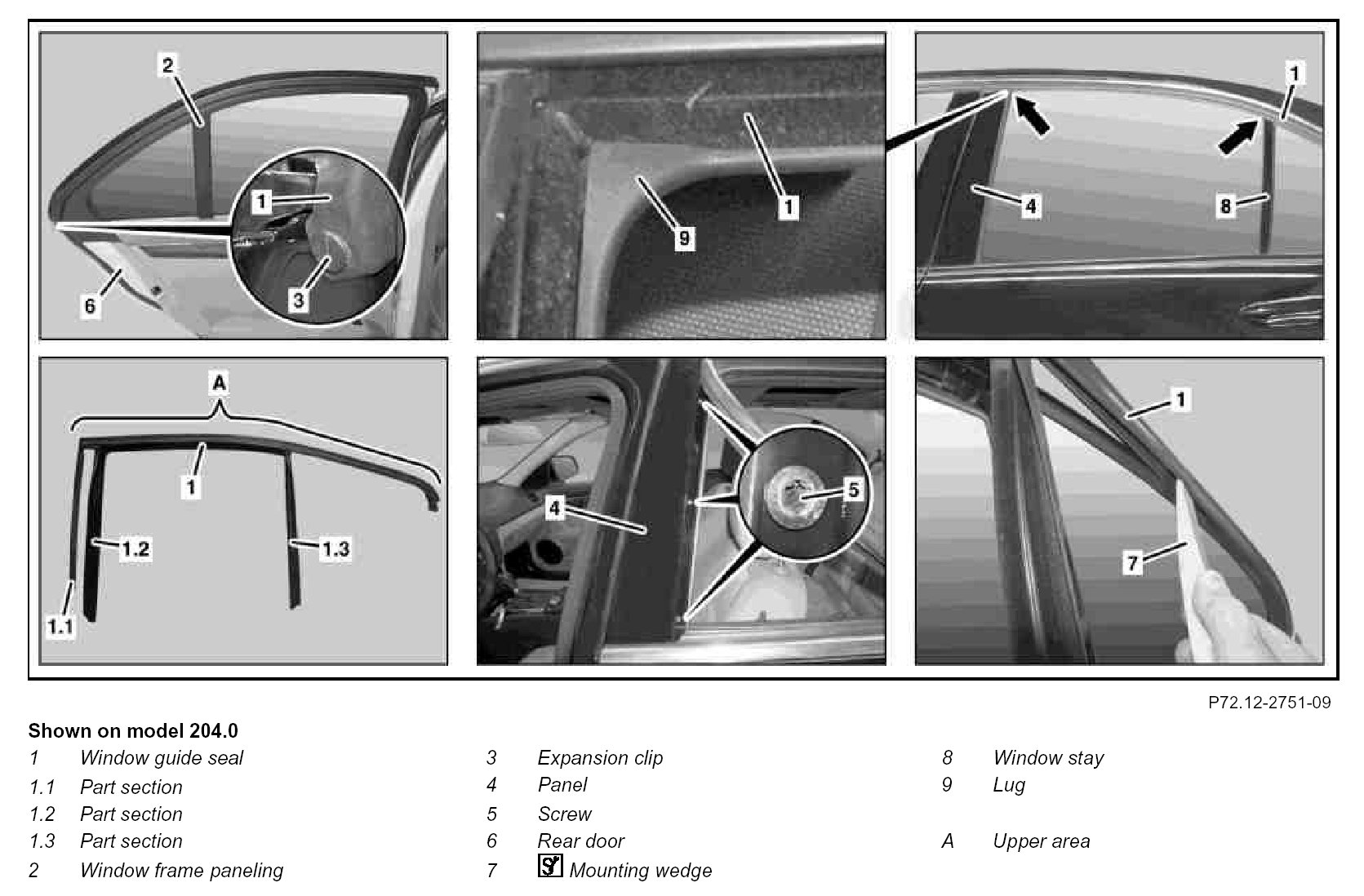

Component Identification:

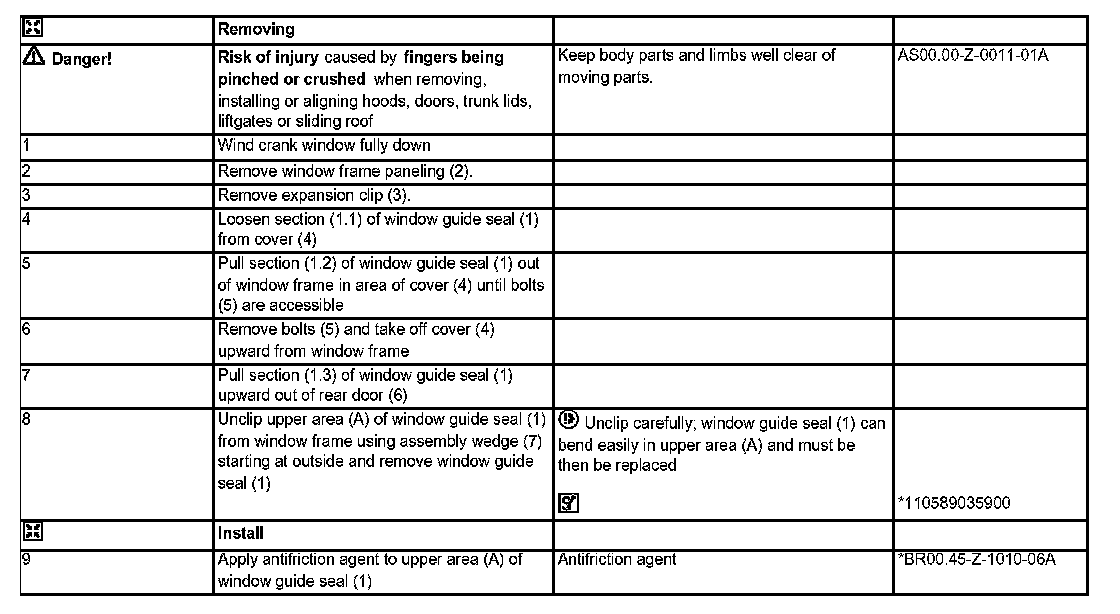

Steps 1 - 9:
Steps 10 - 22:
Special Tools:

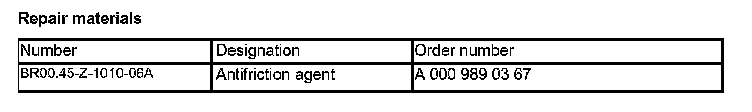

Repair Materials:
