AR72.12-P-1019CW Remove/Install Sealing Strip on Door Bottom Edge
AR72.12-P-1019CW Remove/Install Sealing Strip on Door Bottom Edge
AR72.12-P-1019CW Remove/Install Sealing Strip On Door Bottom Edge

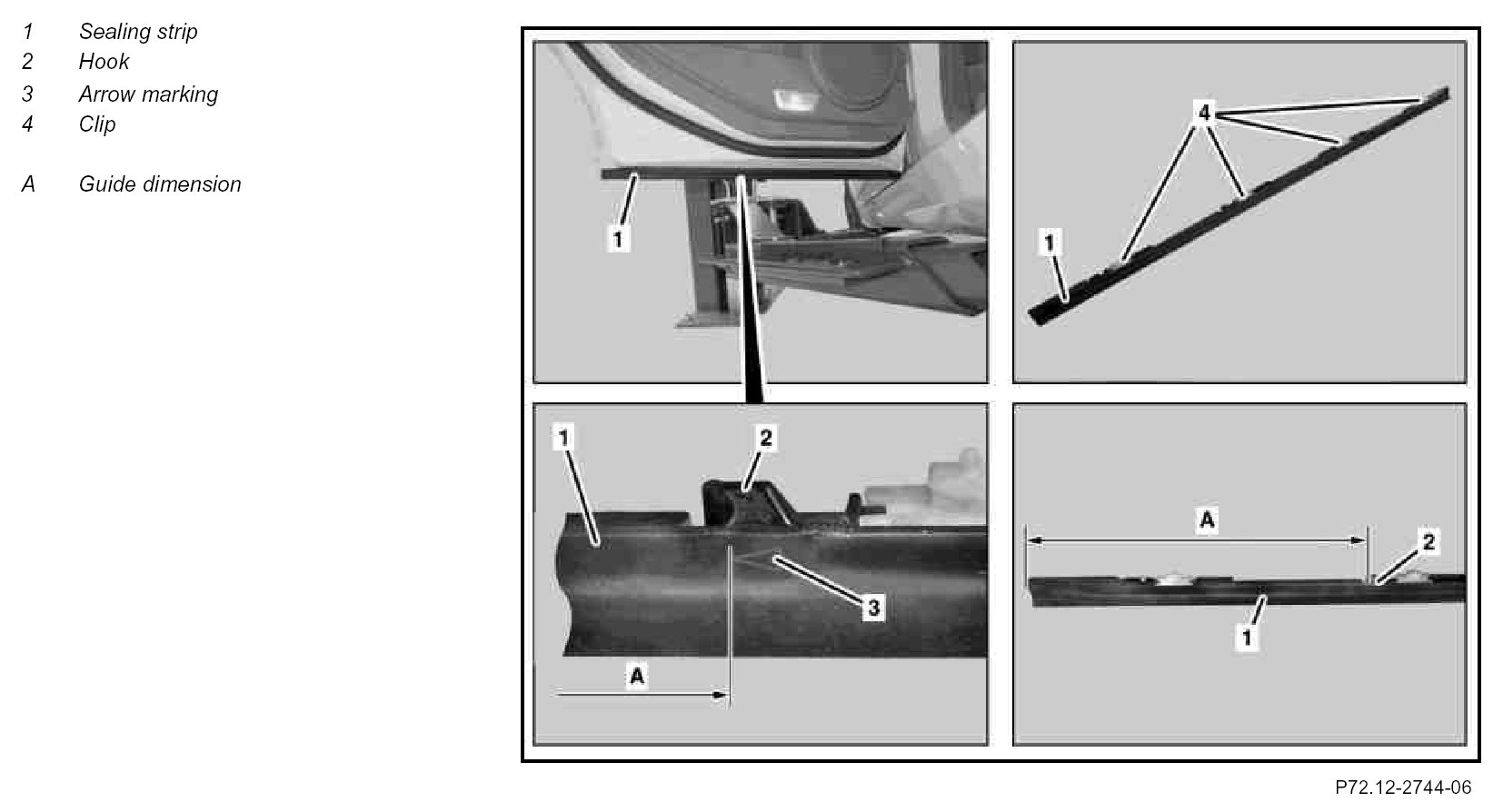

Component Identification:

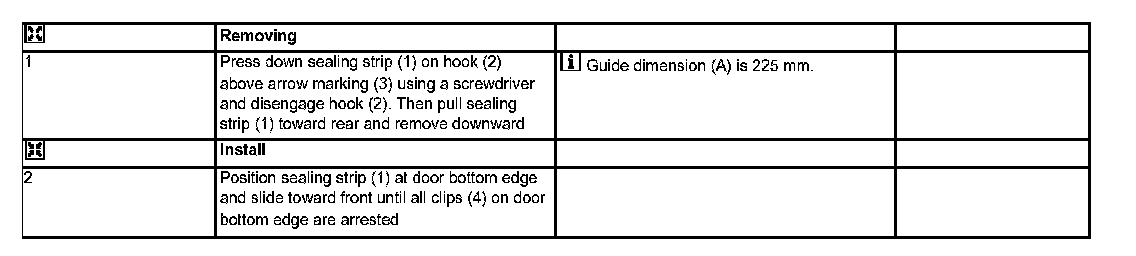

Steps 1 - 2:
