E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Weatherstrip
>>
Rear Door Weatherstrip
>>
Service and Repair
>>
AR72.12-P-1015CY Remove/Install Door Frame Seal on Rear Door
AR72.12-P-1015CY Remove/Install Door Frame Seal on Rear Door
AR72.12-P-1015CY Remove/Install Door
Frame
Seal On Rear Door
- except CODE (Z04) Light armoring [model 212.0]

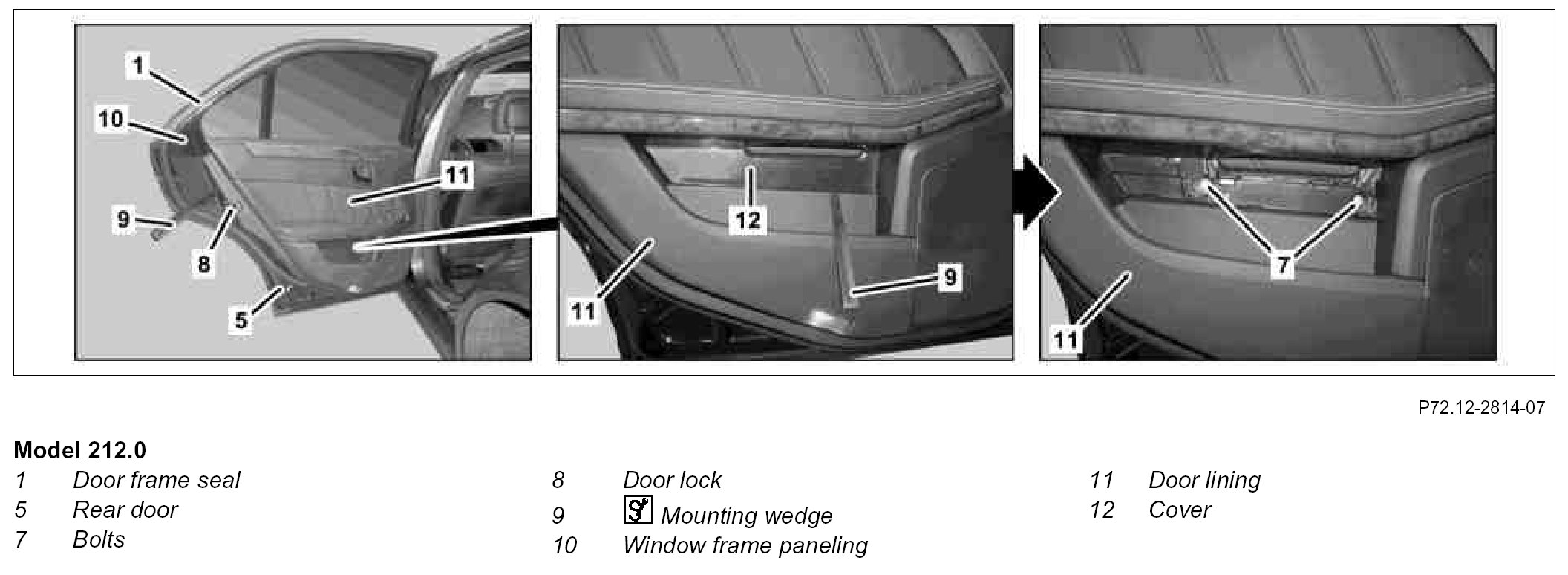

Component Identification:

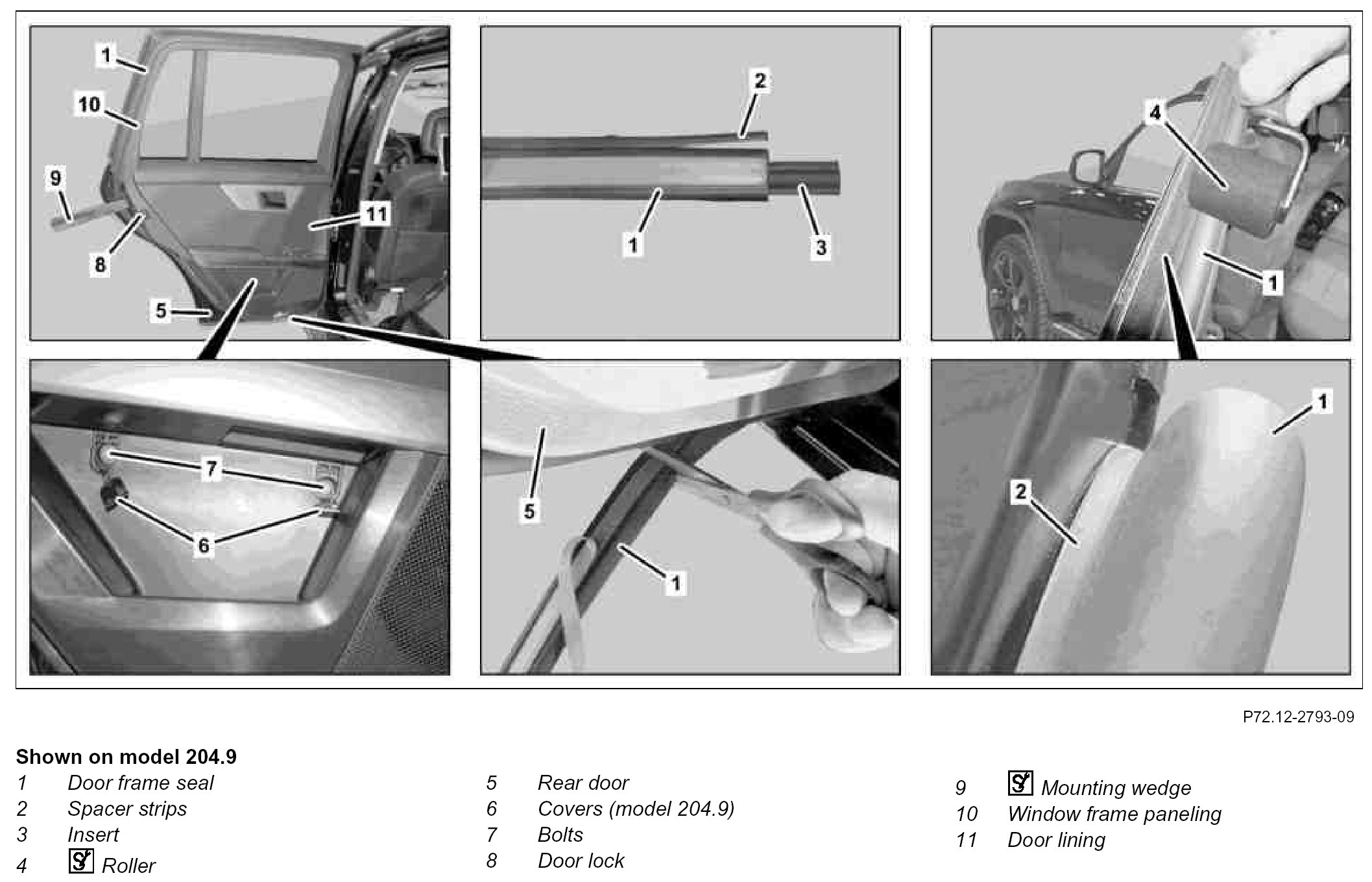

Component Identification:

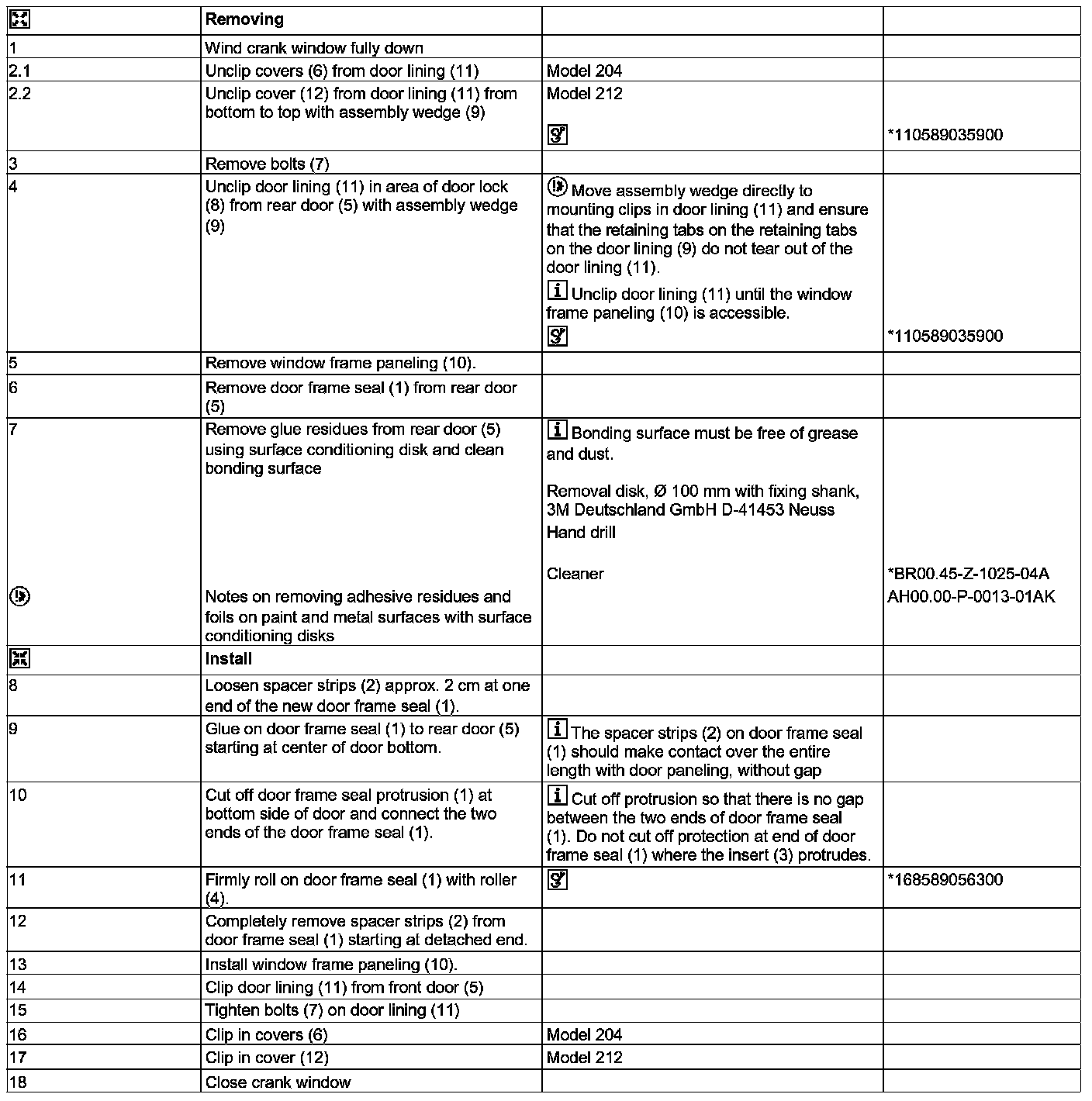

Steps 1 - 18:

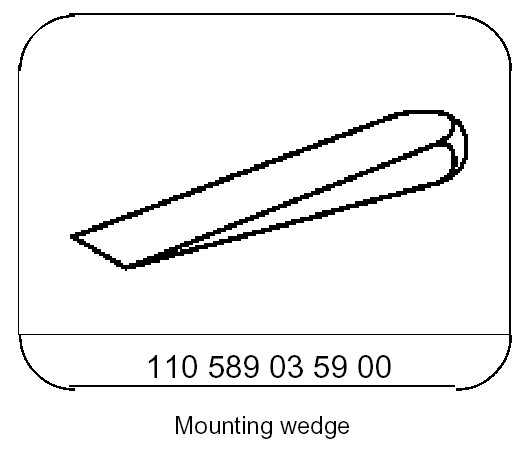

Special Tool:

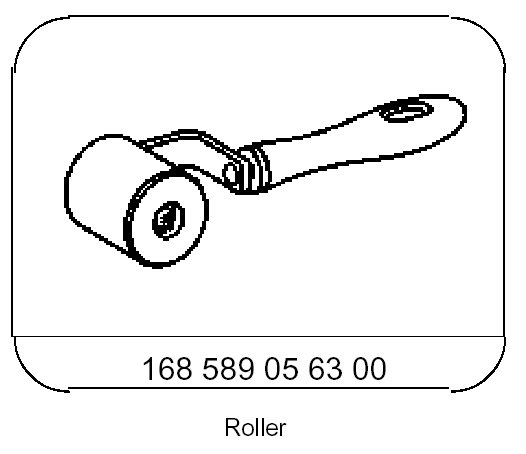

Special Tool:

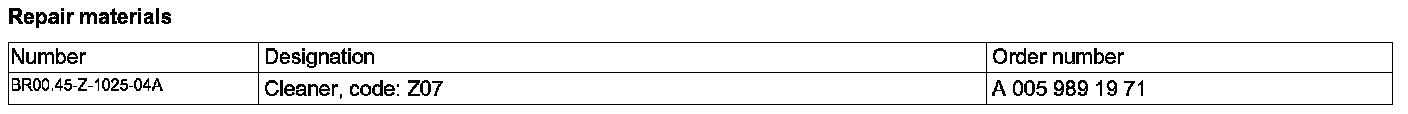

Repair Materials:
