Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Body and Frame >> Weatherstrip >> Front Door Window Glass Weatherstrip >> Service and Repair >> AR72.10-P-1620CW Remove/Install Sealing Strip on Door Bottom Edge on Front Door

AR72.10-P-1620CW Remove/Install Sealing Strip on Door Bottom Edge on Front Door



AR72.10-P-1620CW Remove, Install Sealing Strip On Door Bottom Edge On Front Door

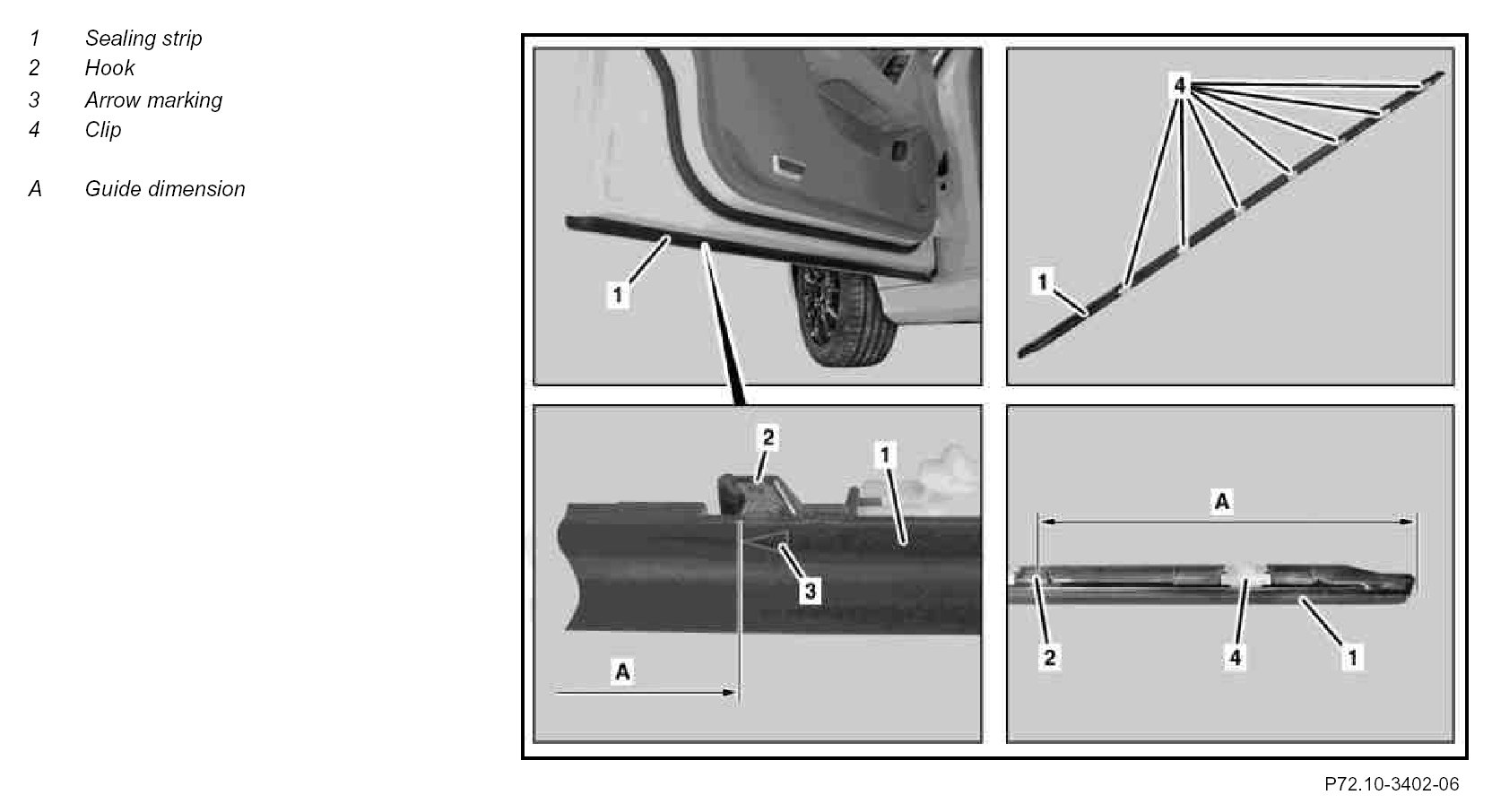

Component Identification:

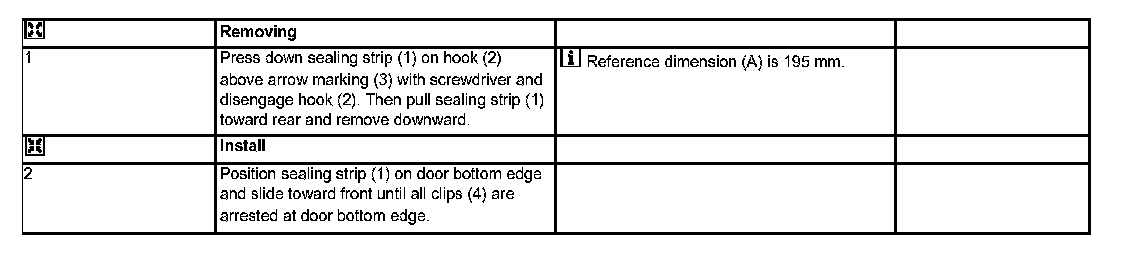

Steps 1 - 2:
