AZ88.30-P-0016-03EW Retrofit Spoiler on Rear Bumper

AZ88.30-P-0016-03EW Retrofit Spoiler On Rear Bumper
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package


The following steps are shown on model 212.0.







1. Remove protective foil on front adhesive strip from spoiler (3)

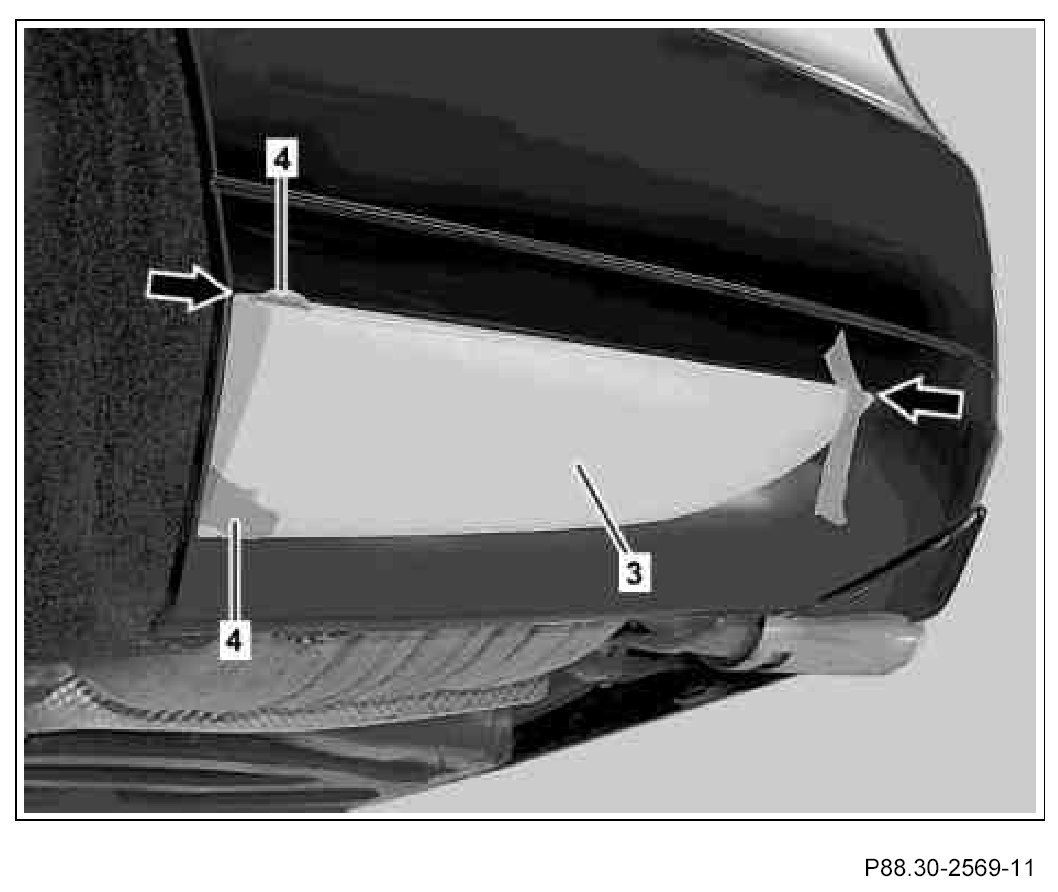

2. Slightly remove protective foils (4) from adhesive strips on spoiler (3) at ends and bend 45° in direction of outer edge.

If necessary, fix bent protective foils (4) in place on outside of spoiler (3) with adhesive tape.

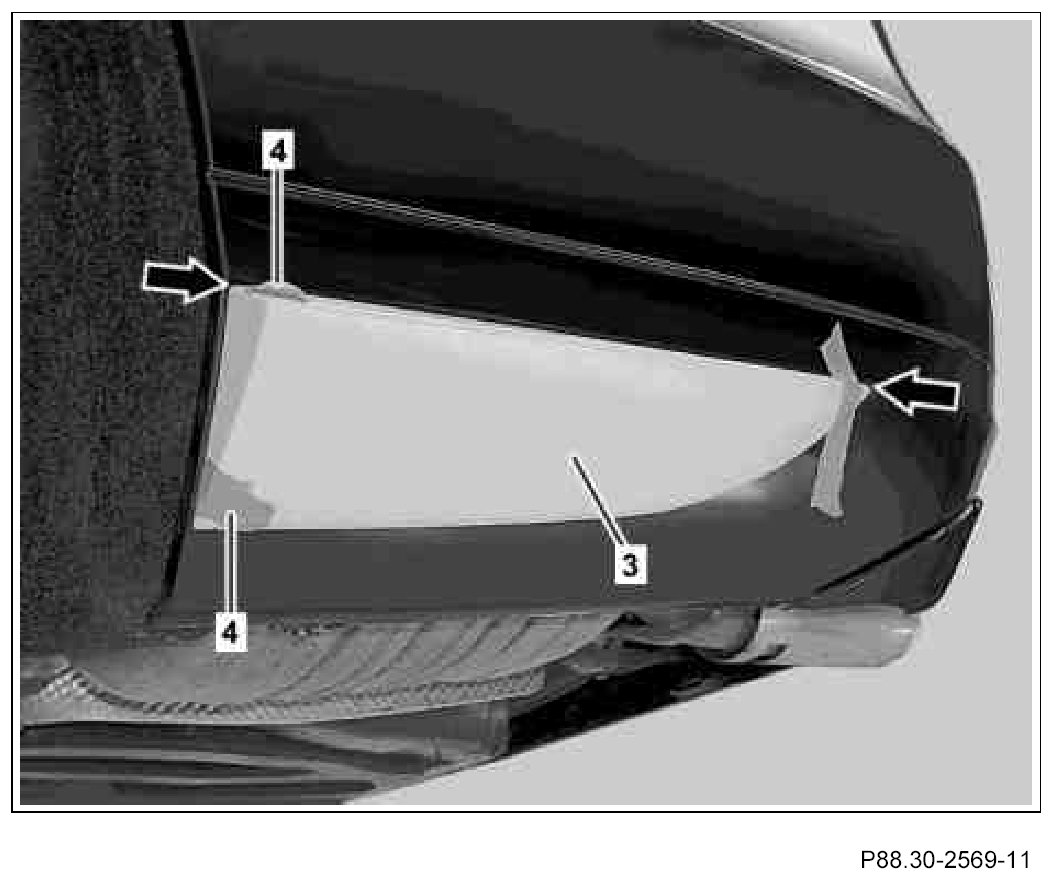

3. Position spoiler (3) at edge of bumper (arrows) and press on.

The spoiler (3) should make contact with the edge of the bumper.







4. Remove protective foil in increments of 15 to 20 cm starting at one side and firmly press on spoiler (3).

When pressing on, press directly on adhesive strips on spoiler (3) to prevent adhesion problems. The maximum adhesive force is reached after approx. 72 hours at 20 °C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress.

Do not remove protective foil all at once. To increase processing reliability when installing spoiler (3), conclude by pressing spoiler (3) down on bumper using clean cotton rag, starting at one side.

5. Remove adhesive tape (4) and remaining adhesive tape.
