AZ88.30-P-0003EW Retrofit Mud Guards



AZ88.30-P-0003EW Retrofit Mud Guards
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package
- except on vehicles with spoiler on longitudinal member paneling

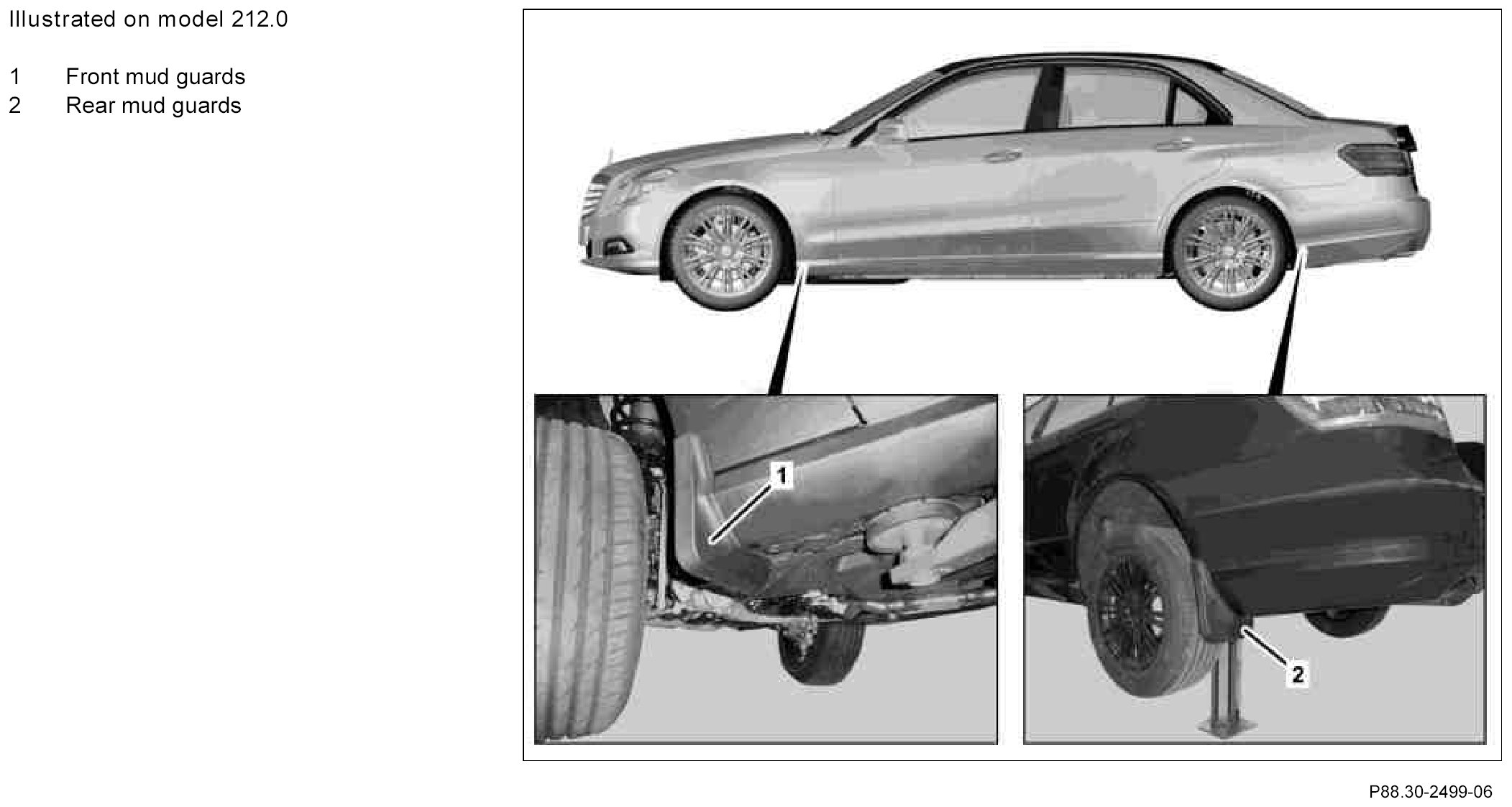

Component Identification:

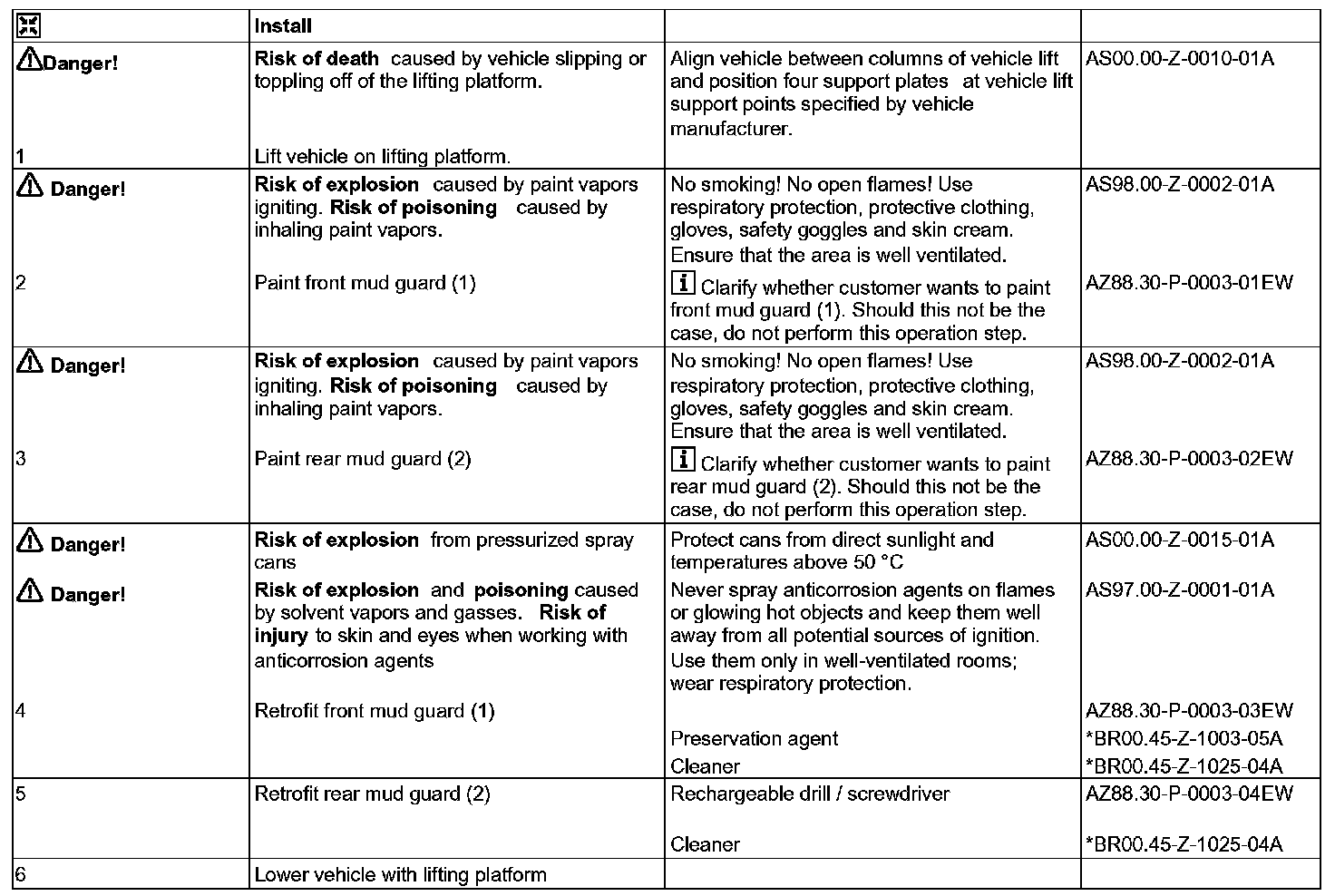

Steps 1 - 6:

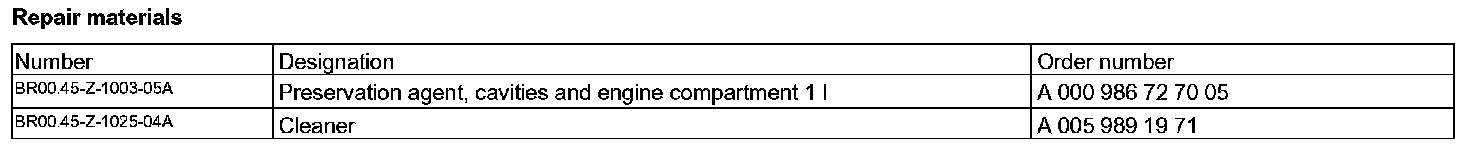

Repair Materials:

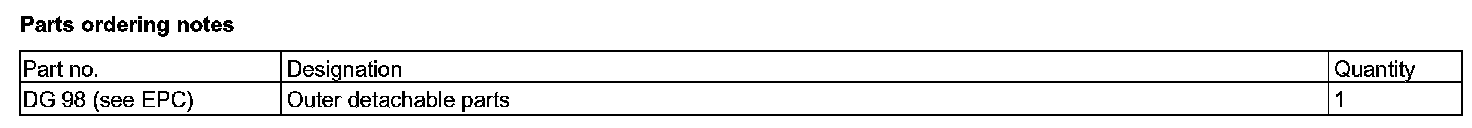

Parts Ordering Notes:
