AZ88.30-P-0003-04EW Retrofit Rear Mud Guards

AZ88.30-P-0003-04EW Retrofit Rear Mud Guards
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package

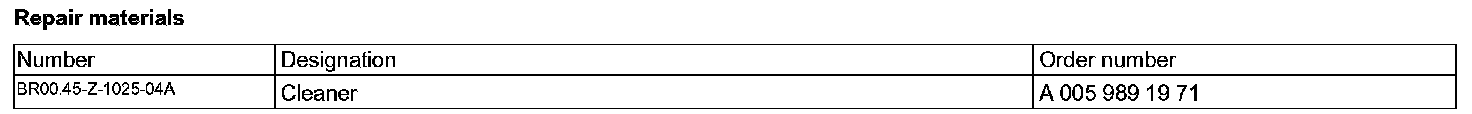

Repair Materials:

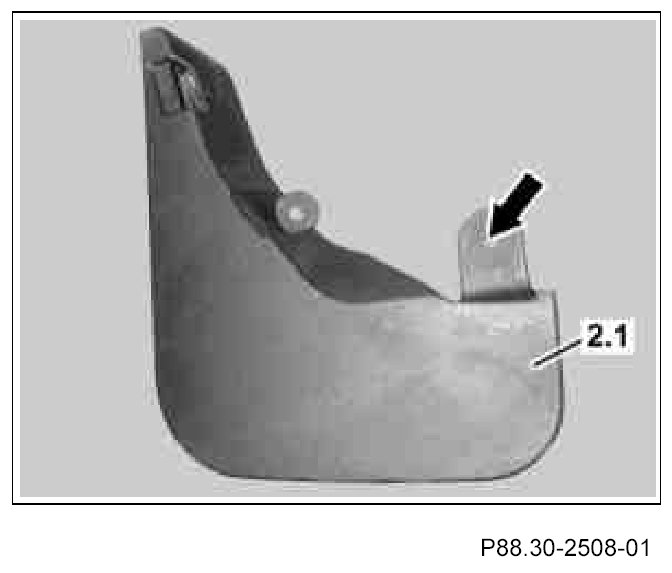

1. Drill dia. 9 mm hole (arrow) into right rear mud guard (2.1).

Cordless drill/driver

On vehicles with single-pipe exhaust system.







The following steps are shown on the left side of the vehicle on model 212.0. Install on the right side of vehicle as well as on model 212.2 in the same manner.

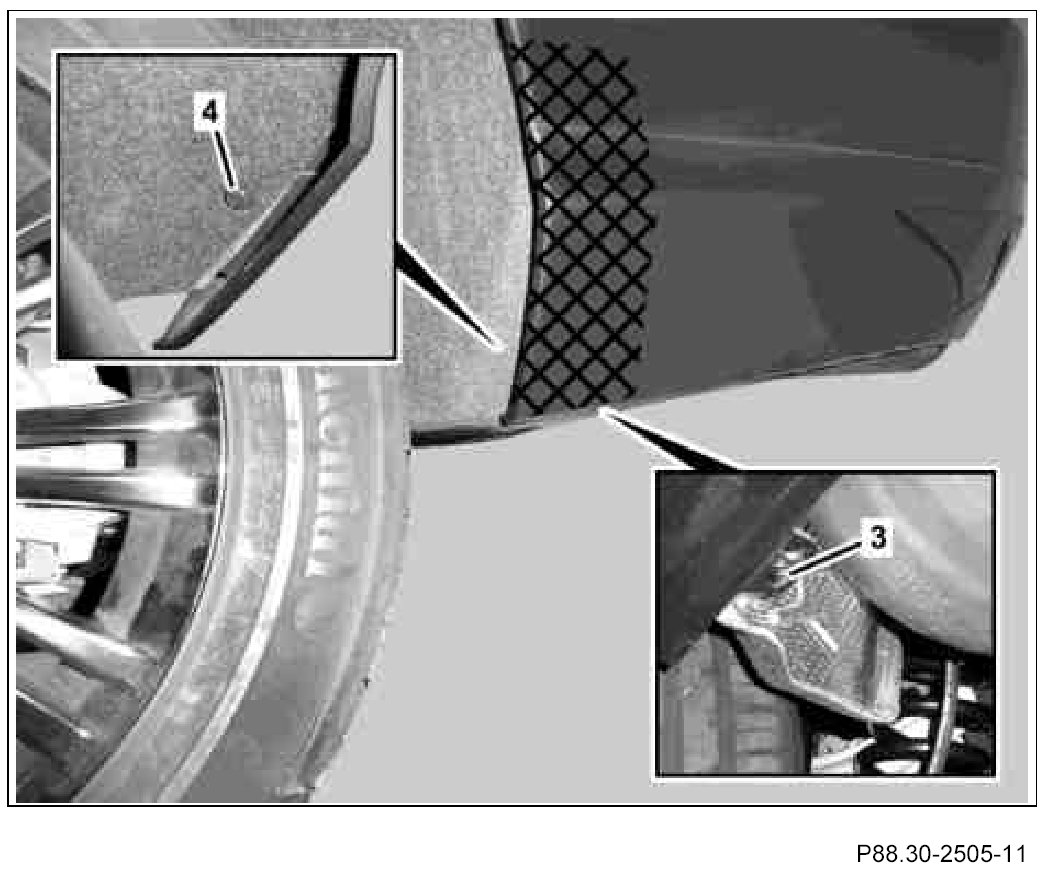

2. Clean rear bumper in cross-hatched area with specified cleaning agent.

Rear bumper must be dry, free of dust and grease in cross-hatched area.

3. Unscrew sheet metal screws (3, 4) from fender liner and rear bumper.

On vehicles with single-pipe exhaust system an expansion rivet is installed in addition on the right side of the vehicle in the area below the sheet metal screw (4); it must also be removed.







4. Loosen protective foil on adhesive strips on rear mud guards (2) from corners and position so that ends of protective foil extend beyond outer edge of rear mud guards (2).

Do not remove protective foil on adhesive strips completely.

5. Position rear mud guard (2) on rear bumper as shown in figure.

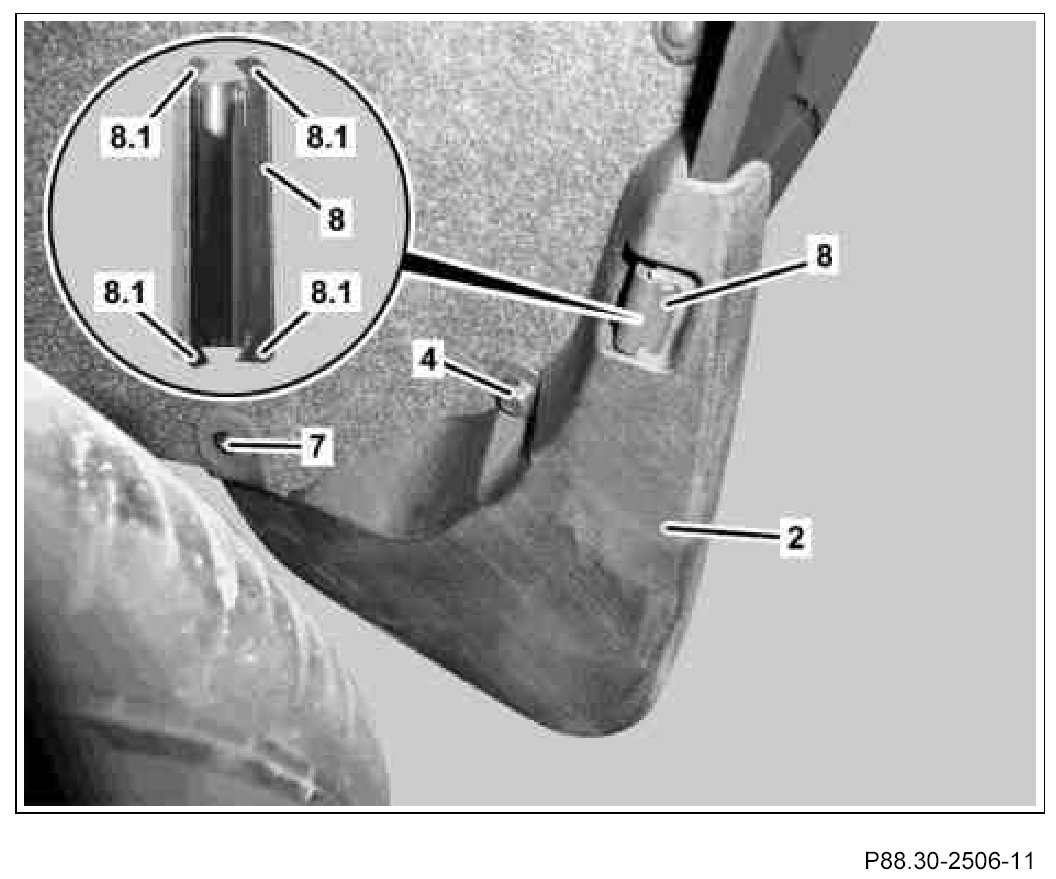

6. Screw sheet metal screws (4) into fender liner.
7. Screw in self-tapping sheet metal screw (7)

On vehicles with single-pipe exhaust system, install the previously removed expansion rivet on the right side of the vehicle instead of the self-tapping sheet metal screw (7).

8. Position rear mud guards (2) on rear fender as shown in figure and fasten with clips (8).

A barb (8.1) is present on the clips (8) for the rear mud guards (2) on both sides.

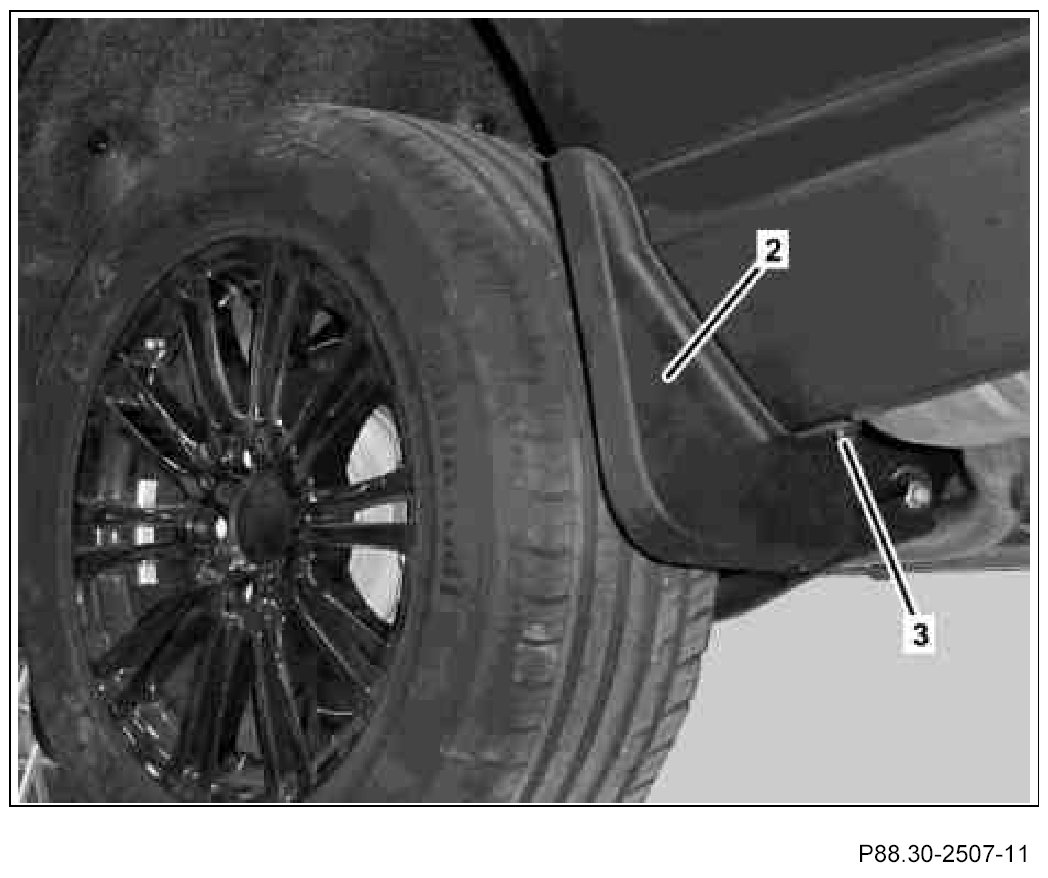

9. Screw sheet metal screw (3) into rear bumper.
10. Remove entire protective foil from adhesive strips on rear mud guards (2) and uniformly press adhesive strips against rear bumper (2).
