AZ88.30-P-0003-02EW Paint Rear Mud Guards

AZ88.30-P-0003-02EW Paint Rear Mud Guards
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package

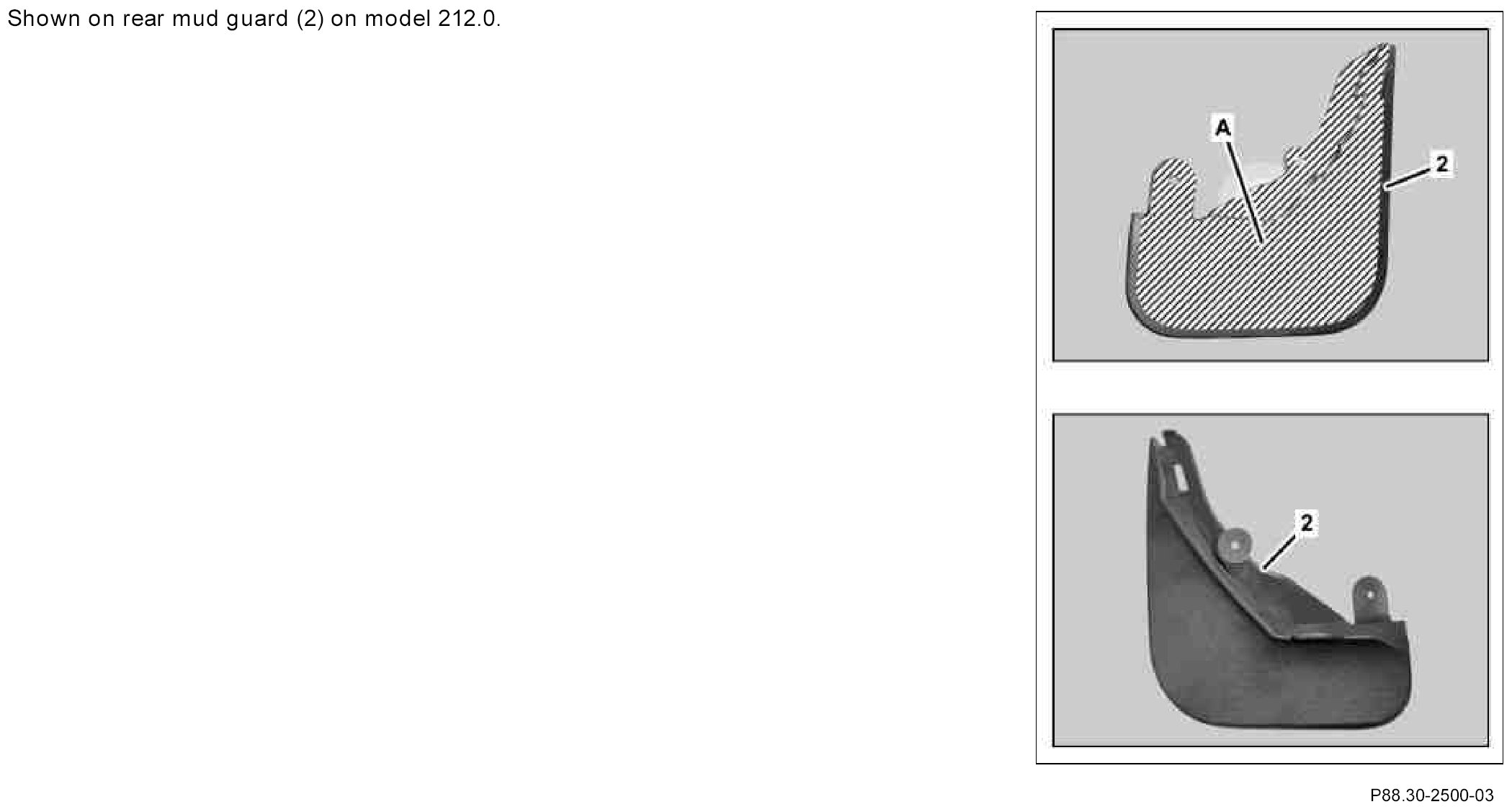

Component Identification:

Use only paint and paint system approved by Daimler AG.

1. Mask cross-hatch pattern (A) on contour edge of rear mud guards (2), according to figure.

Ensure that no paint or paint fog gets onto the cross-hatch pattern (A) of the rear mud guards (2).

2. Pretreat rear mud guards (2) according to Daimler AG painting guidelines and paint outside of rear mud guards (2) to match vehicle color.

Outside of new rear mud guards (2) is already primed transparently.

3. Remove masking tape from rear mud guards (2) when the paint is cured.
