AZ88.30-P-0003-01EW Paint Front Mud Guards

AZ88.30-P-0003-01EW Paint Front Mud Guards
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package








Use only paint and paint system approved by Daimler AG.

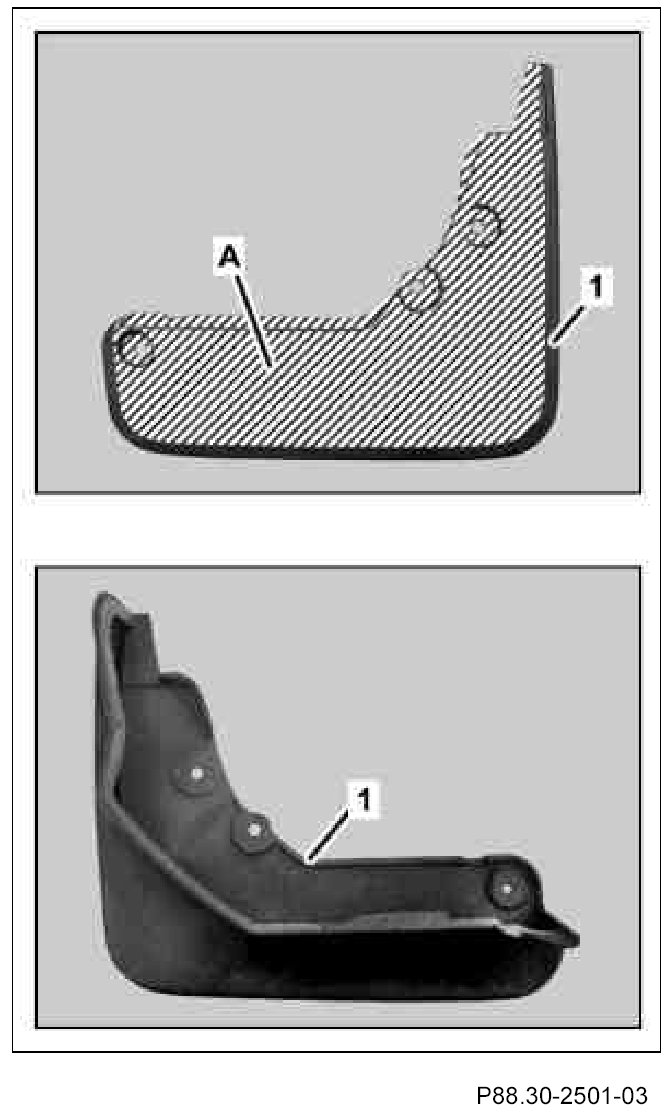

1. Mask cross-hatch pattern (A) on contour edge of front mud guards (1), according to figure.

Ensure that no paint or paint fog gets onto the cross-hatch pattern (A) of the front mud guards (1).

2. Pretreat front mud guards (1) according to Daimler AG painting guidelines and paint outside of front mud guards (1) to match vehicle color.

Outside of new front mud guards (1) is already primed transparently.

3. Remove masking tape from front mud guards (1) when the paint is cured.
