AZ88.30-P-0020-02EW Retrofit Rear Diffuser on Bumper

AZ88.30-P-0020-02EW Retrofit Rear Diffuser On Bumper
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package
- except CODE (550) Trailer hitch

The following steps are shown on model 212.0.

Removing

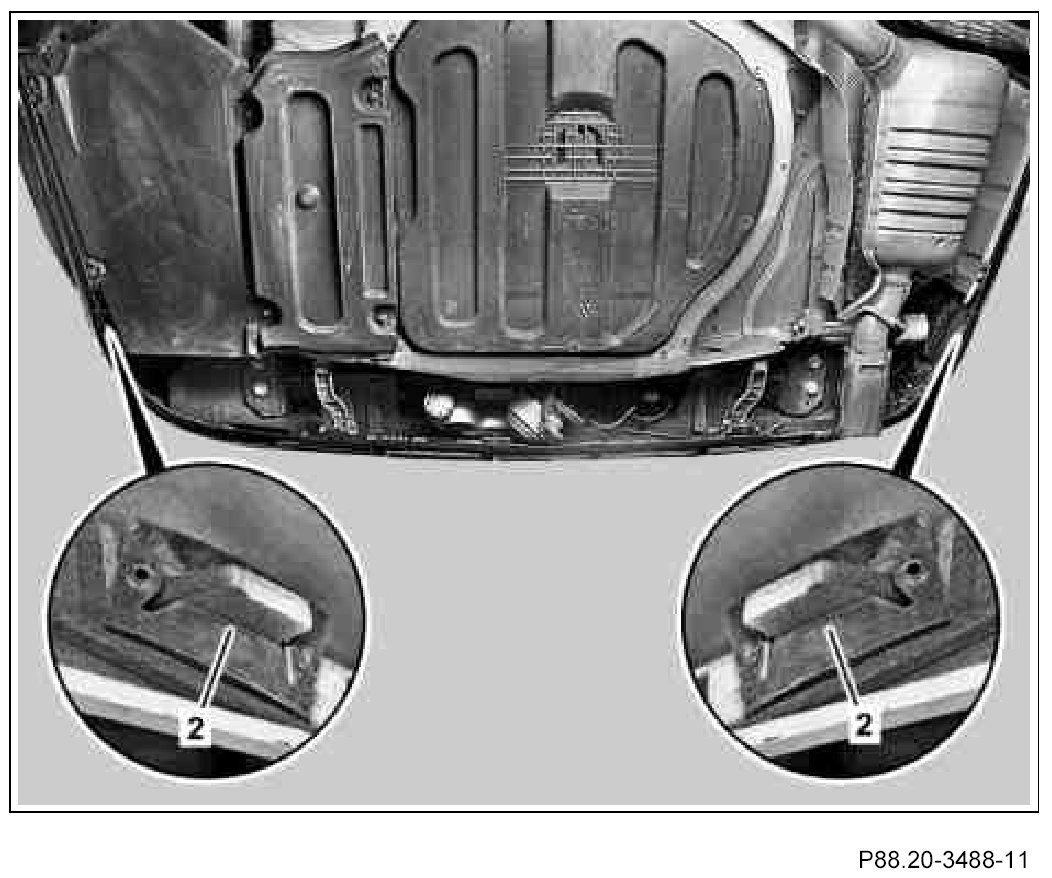

1. Remove retaining clamps (2) from bumper cover.

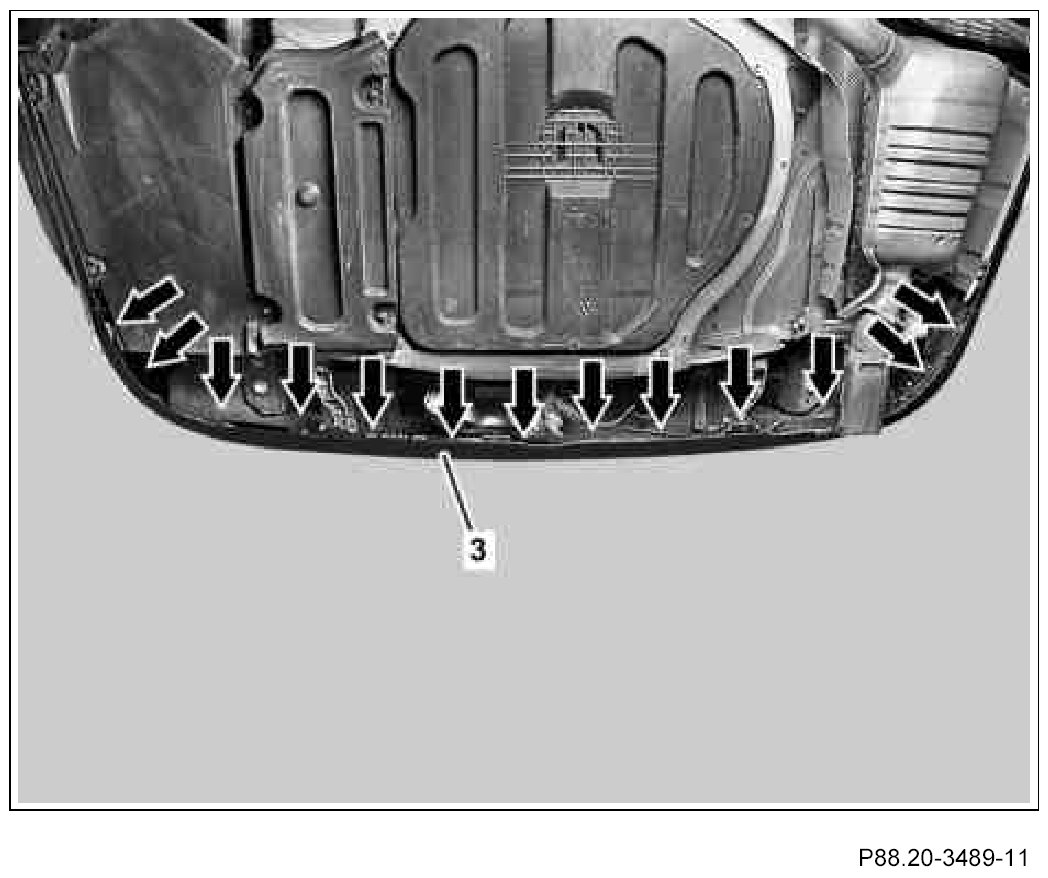

2. Unclip catch tabs (arrows) from bumper cover (3).
3. Remove bumper cover (3)

Install

4. Install in the reverse order.

Replace bumper cover (3) with rear diffuser.
