AR91.25-P-1430EW Remove/Install Air Pump For Multicontour Seat



AR91.25-P-1430EW Remove/Install Air Pump For Multicontour Seat
- with CODE (409) Left/right front multicontour seats.

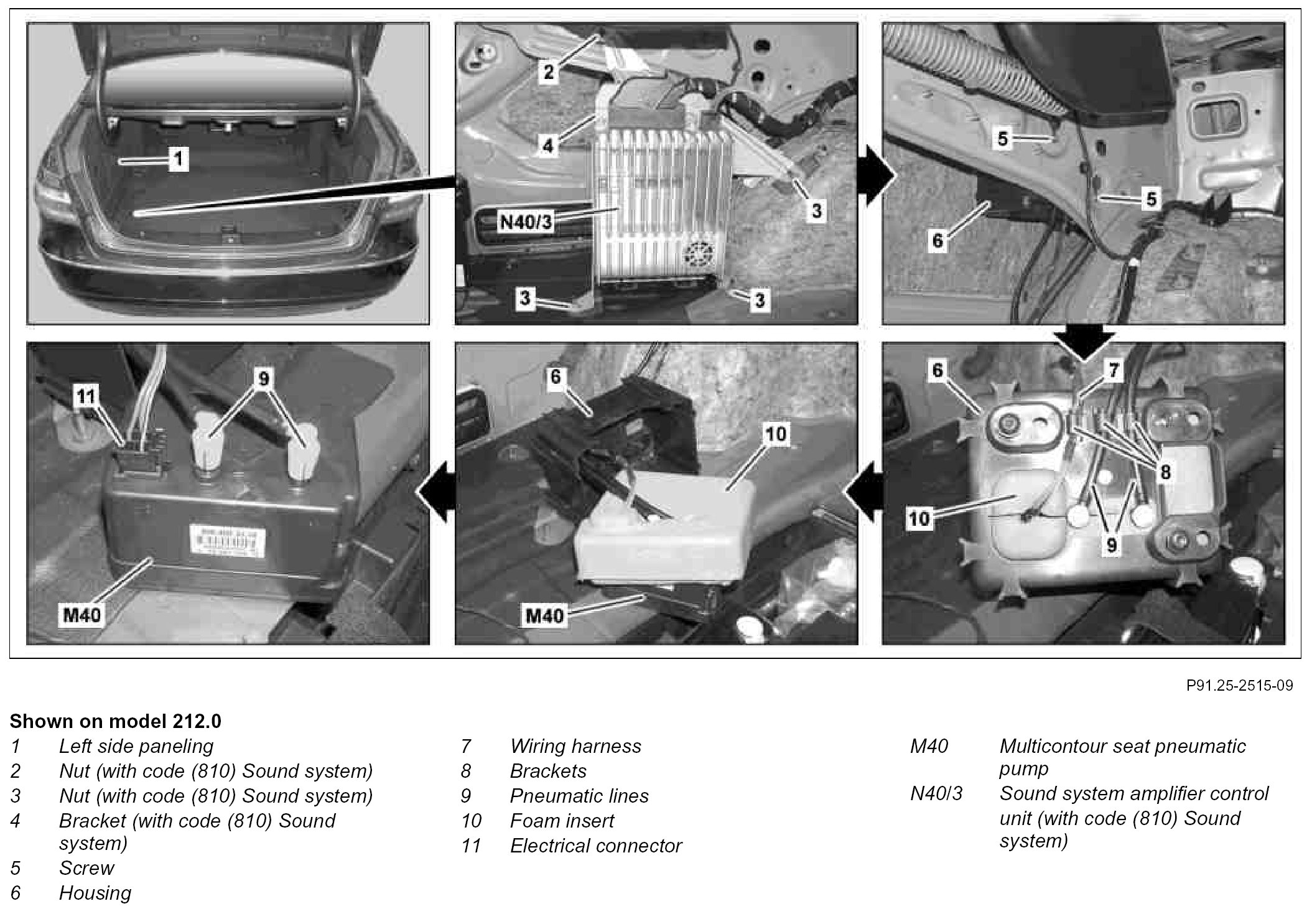

Component Identification:

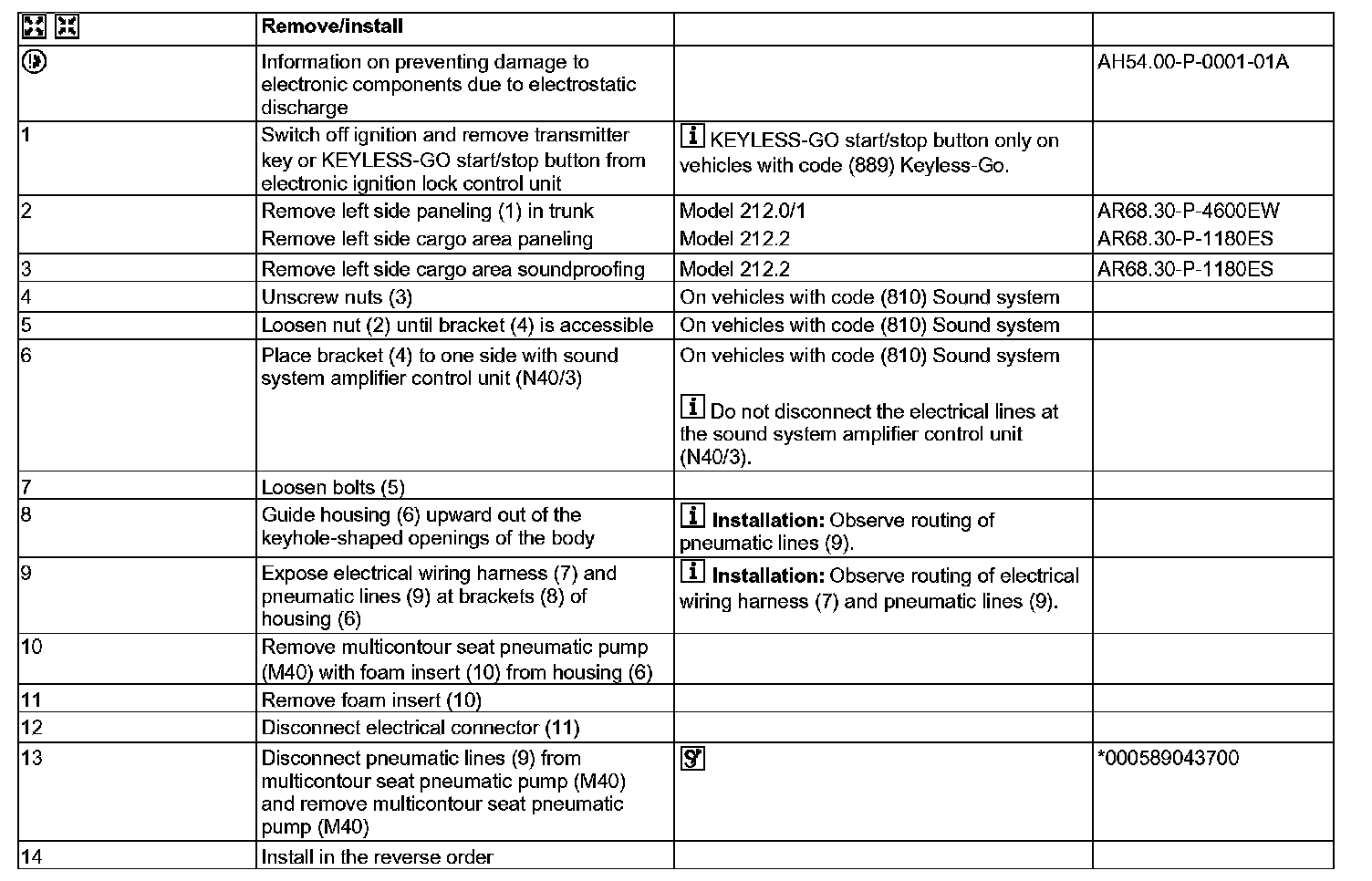

Steps 1 - 14:




Special Tools:
