AR91.12-P-1730CW Remove/Install Locking Mechanism for Folding Rear Seat Backrest

AR91.12-P-1730CW Remove/Install Locking Mechanism For Folding Rear Seat Backrest
MODEL 204.0 /3, 212.0, 218.3
- with CODE (287) Through-loading feature
MODEL 207.3

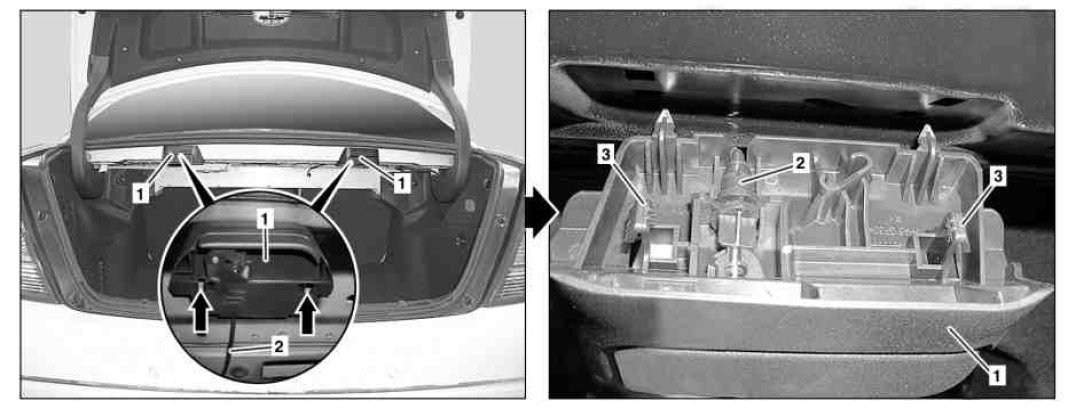

Shown on model 204.0

1 Release handle
2 Bowden cable
3 Catch hook

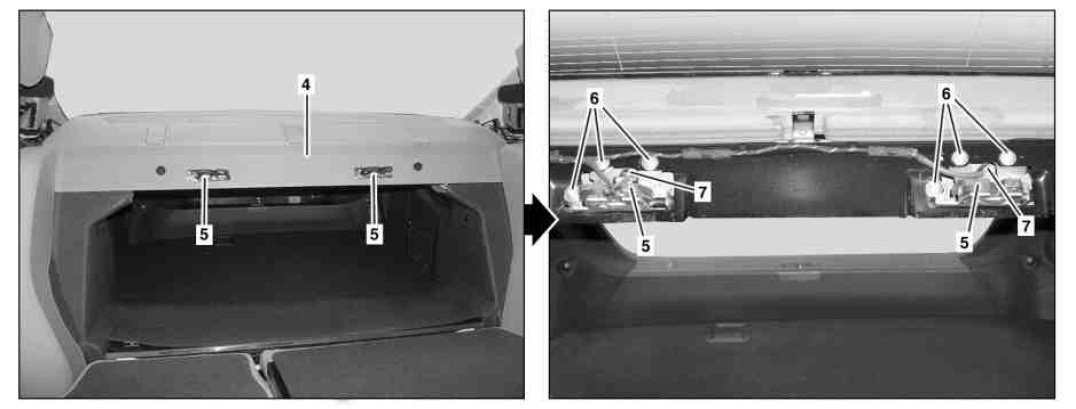

Shown on model 204.0

4 Rear shelf
5 Rear backrest lock
6 Bolts
7 Electrical connector
