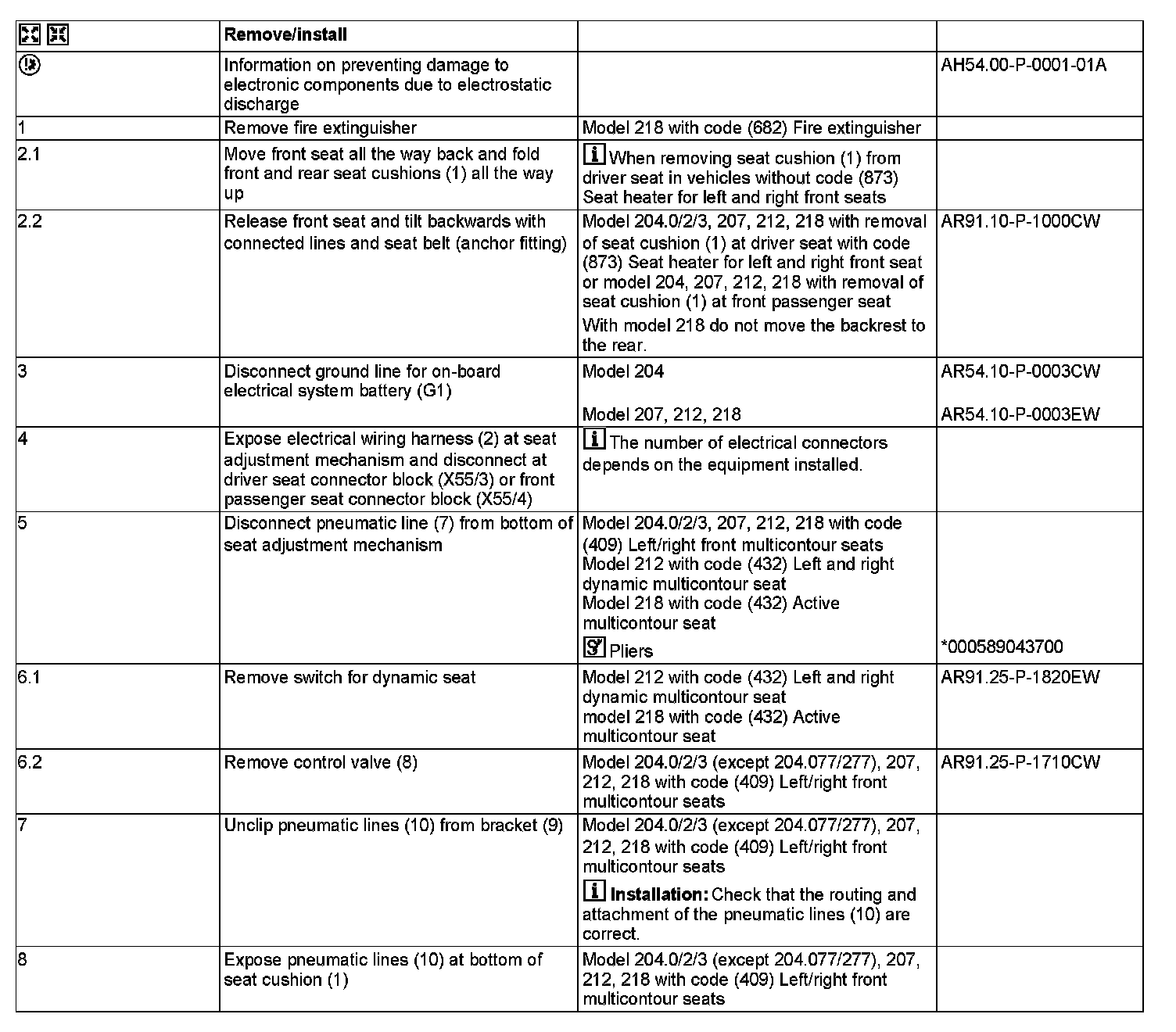

AR91.10-P-3310CW Remove/Install Seat Cushion

AR91.10-P-3310CW Remove/Install Seat Cushion
MODEL 204, 207, 212, 218





Shown on left front seat in model 204.0 with code (409) Left/ right front multicontour seats and with code (873) Seat heater for left and right front seat

1 Seat cushion
2 Wiring harness
3 Screw
4 Bow
5 Bearing shell
6 Electrical connector for seat heater (with code (873) Seat heater for left and right front seats)
7 Pneumatic line (Model 204.0/2/3, 207, 212, 218 with code (409) Left/right front multicontour seats, model 212 with code (432) Left and right dynamic multicontour seat Model 218 with code (432) Active multicontour seat)

X55/3 Driver seat connector block
X55/4 Front passenger seat connector block

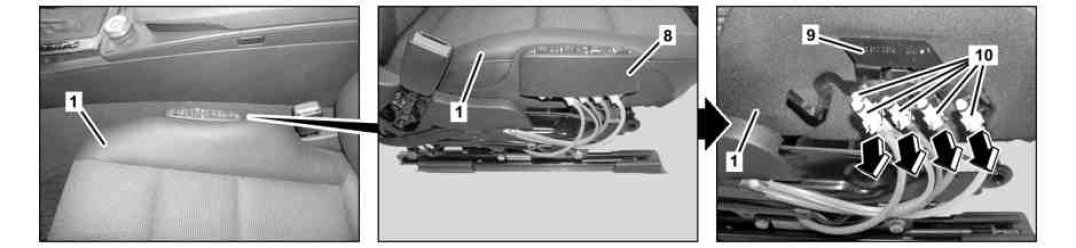

Model 204.0/2/3 (except 204.077/277), 207, 212, 218 with code (409) Left/right front multicontour seats, shown on left front seat

1 Seat cushion
8 Control valve (with code (409) Front left/right multicontour seats)
9 Bracket (with code (409) Left/right front multicontour seats)
10 Pneumatic lines (with code (409) Front left/right multicontour seats)

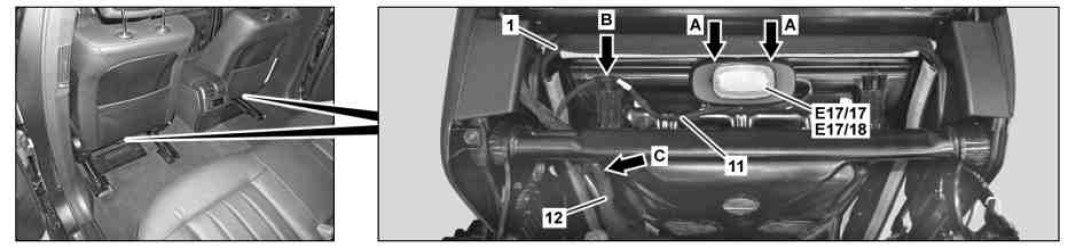

Model 218, 212 with code (954) Avant-garde or with code (955) Elegance

1 Seat cushion
11 Electrical wiring harness (model 218, 212 with code (954) Avant-garde or with code (955) Elegance)
12 Wiring harness

E17/17 Left rear footwell lamp (model 218, 212 with code (954) Avant-garde or with code (955) Elegance)
E17/18 Right rear footwell lamp (model 218, 212 with code (954) Avant-garde or with code (955) Elegance)

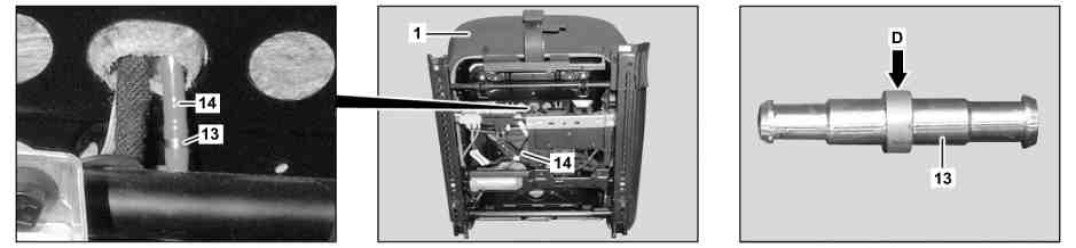

Model 212 with code (432) Left and right dynamic multicontour seat, model 218 with code (432) Active multicontour seat

1 Seat cushion
13 Pneumatic cable connector
14 Pneumatic line











000 589 04 37 00
Pliers





000 589 12 28 00
Slitting knife
