Seat Track: Service and Repair
AR91.10-P-1450CW Remove/Install Front Seat Adjustment Mechanism

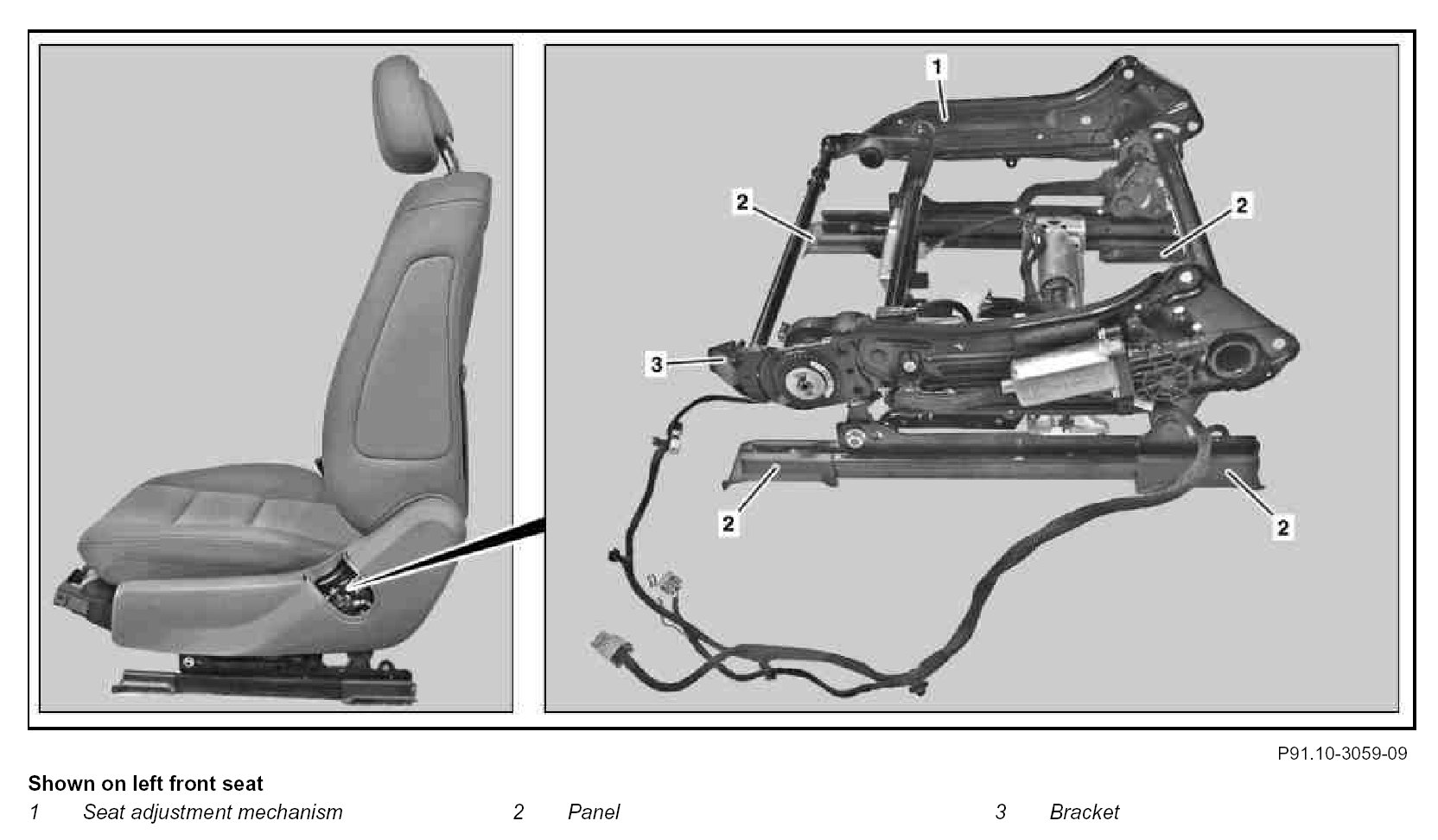

Component Identification:

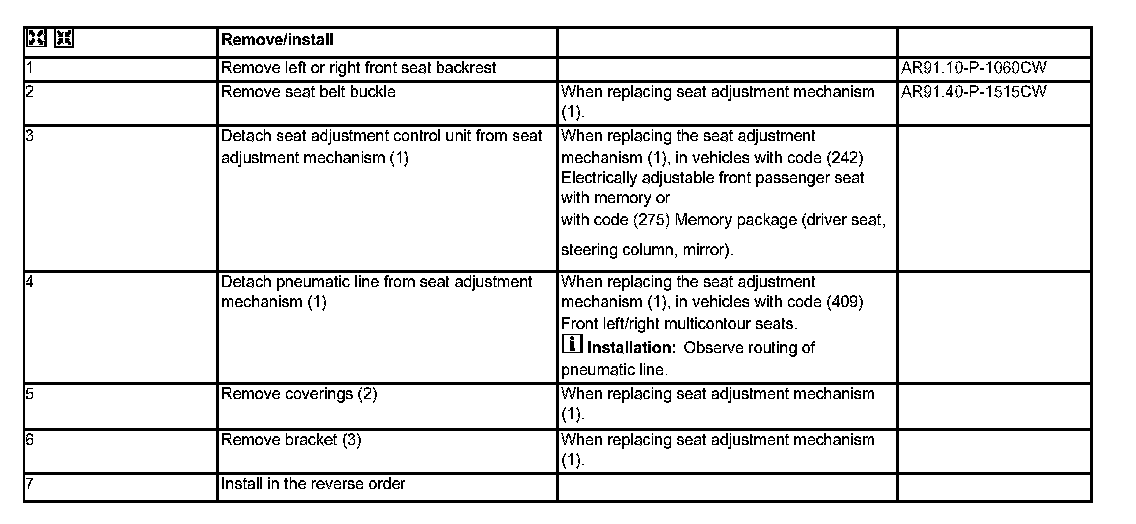

Steps 1 - 7:
