Seat Latch: Service and Repair

AR91.12-P-1730CW Remove And Install Locking Mechanism For Folding Rear Seat Backrest
- with CODE (287) Through-loading feature (model 204.0 and model 212.0)

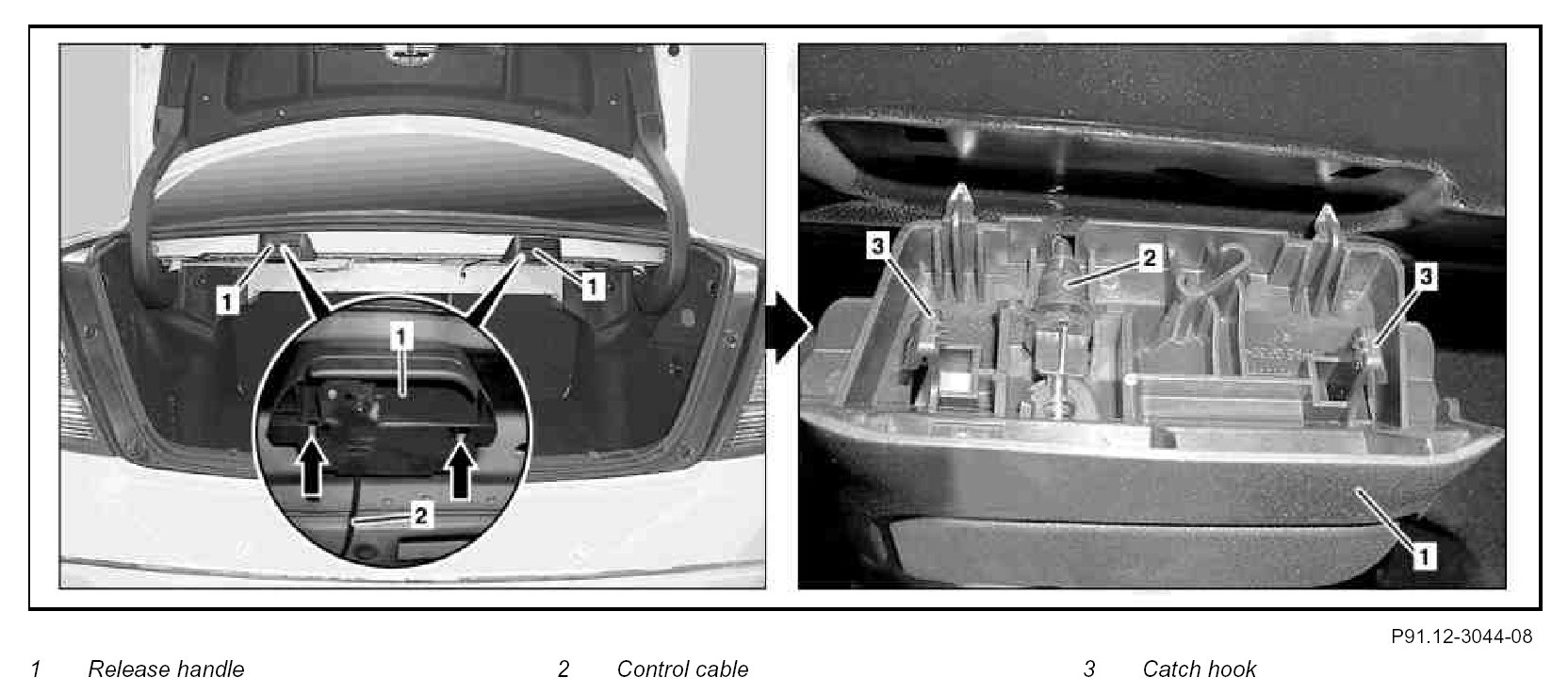

Component Identification:

Component Identification:

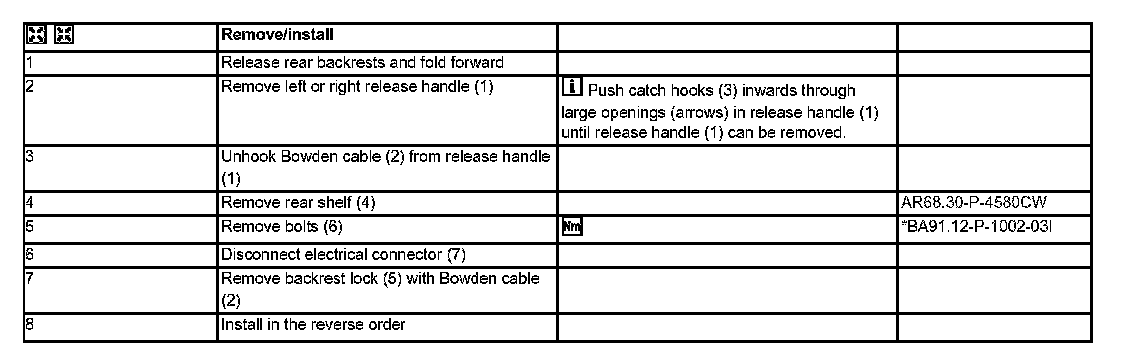

Steps 1 - 8:

Rear Seats:
