AR91.30-P-1950EW Remove/Install Front Seat Cushion Ventilation Motors

AR91.30-P-1950EW Remove/Install Front Seat Cushion Ventilation Motors
MODEL 204.0 /2, 212 (except 204.077 /277)
- with CODE (401) Front comfort seats, incl. seat heating and seat ventilation
MODEL 463.222 /270 /271 /303 /340 /341
- with CODE (S50) Seat ventilation for driver and front passenger seat
as of model year 2010
MODEL 463.306 /336
- with CODE (S50) Seat ventilation for driver and front passenger seat
MODEL 463.202 /236 /237
- with CODE (S50) Seat ventilation for driver and front passenger seat
up to model year 2013
as of model year 2010, /model refinement package 2012
MODEL 463.346
- with CODE (S50) Seat ventilation for driver and front passenger seat
up to model year 2013 /model refinement package 2012

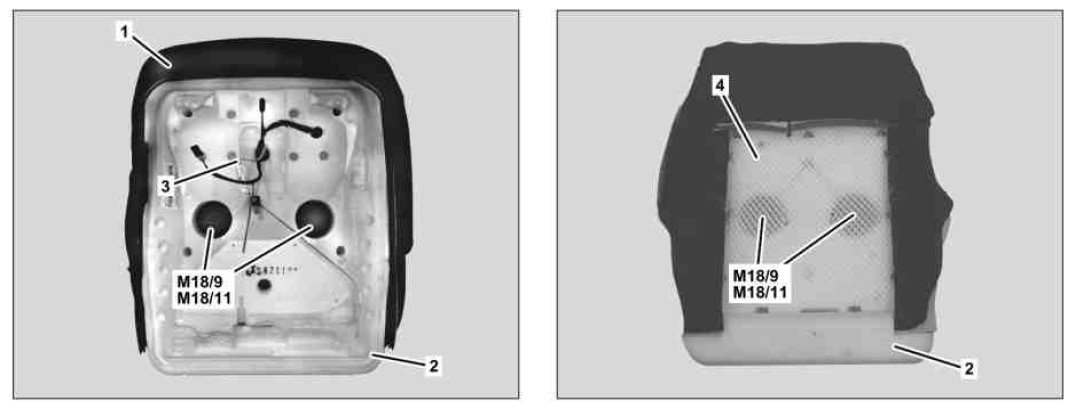

Shows model 212.057

1 Cover
2 Padding
3 Wiring harness
4 Net

M18/9 Left front seat cushion seat ventilation motors
M18/11 Right front seat cushion seat ventilation motors
