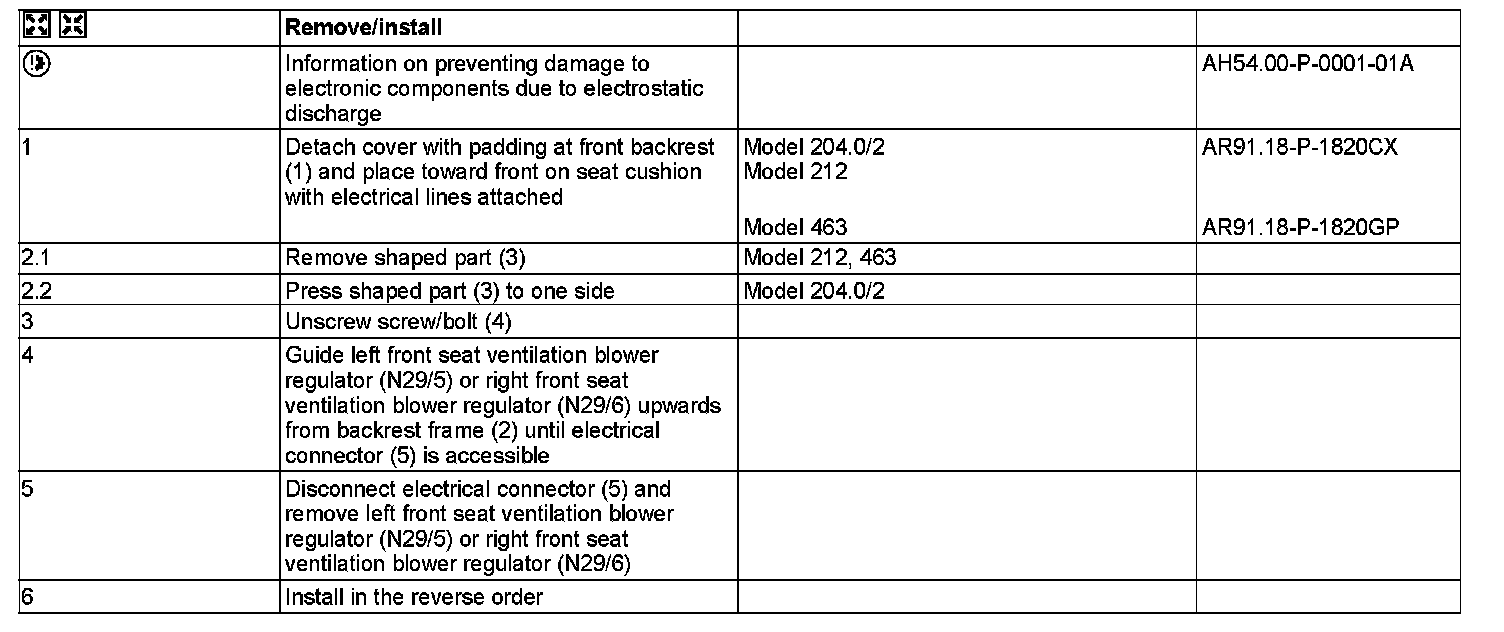

AR91.30-P-1910EW Remove/Install Blower Regulator For Seat Ventilation Motors In Front Seat

AR91.30-P-1910EW Remove/Install Blower Regulator For Seat Ventilation Motors in Front Seat
MODEL 204.0 /2, 212 (except 204.077 /277)
- with CODE (401) Front comfort seats, incl. seat heating and seat ventilation
MODEL 463.222 /270 /271 /303 /340 /341
- with CODE (S50) Seat ventilation for driver and front passenger seat
as of model year 2010
MODEL 463.306 /336
- with CODE (S50) Seat ventilation for driver and front passenger seat
MODEL 463.202 /236 /237
- with CODE (S50) Seat ventilation for driver and front passenger seat
up to model year 2013
as of model year 2010, /model refinement package 2012
MODEL 463.346
- with CODE (S50) Seat ventilation for driver and front passenger seat
up to model year 2013 /model refinement package 2012

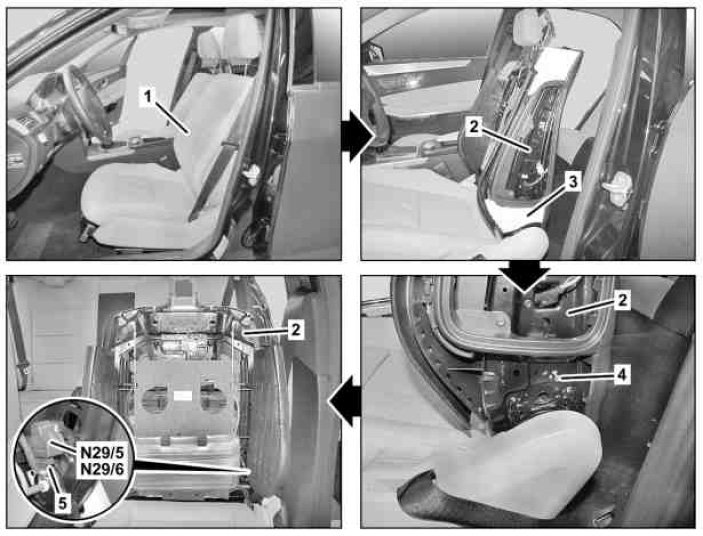

Shows model 212.054

1 Front backrest
2 Backrest frame
3 Shaped part
4 Screw
5 Electrical connector

N29/5 Left front seat ventilation blower regulator
N29/6 Right front seat ventilation blower regulator
