AR91.12-P-1710CW Remove/Install Rear Seat Backrest Side Padding



AR91.12-P-1710CW Remove/Install Rear Seat Backrest Side Padding
- with CODE (287) Through-loading feature


Component Identification:

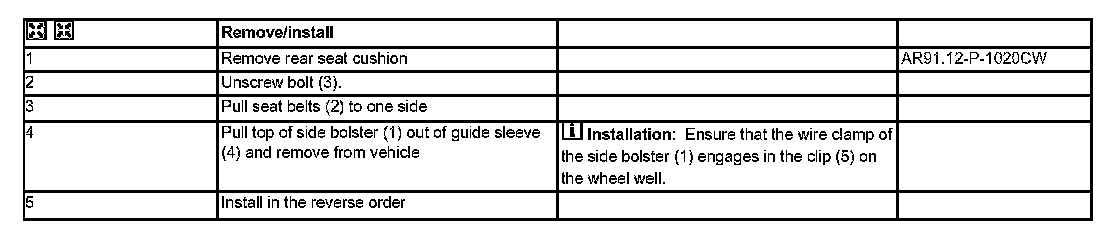

Steps 1 - 5:
