AR91.12-P-1020CW Remove/Install Rear Seat Cushion



AR91.12-P-1020CW Remove/Install Rear Seat Cushion
- except CODE (224) Design individual seats in rear [model 212]

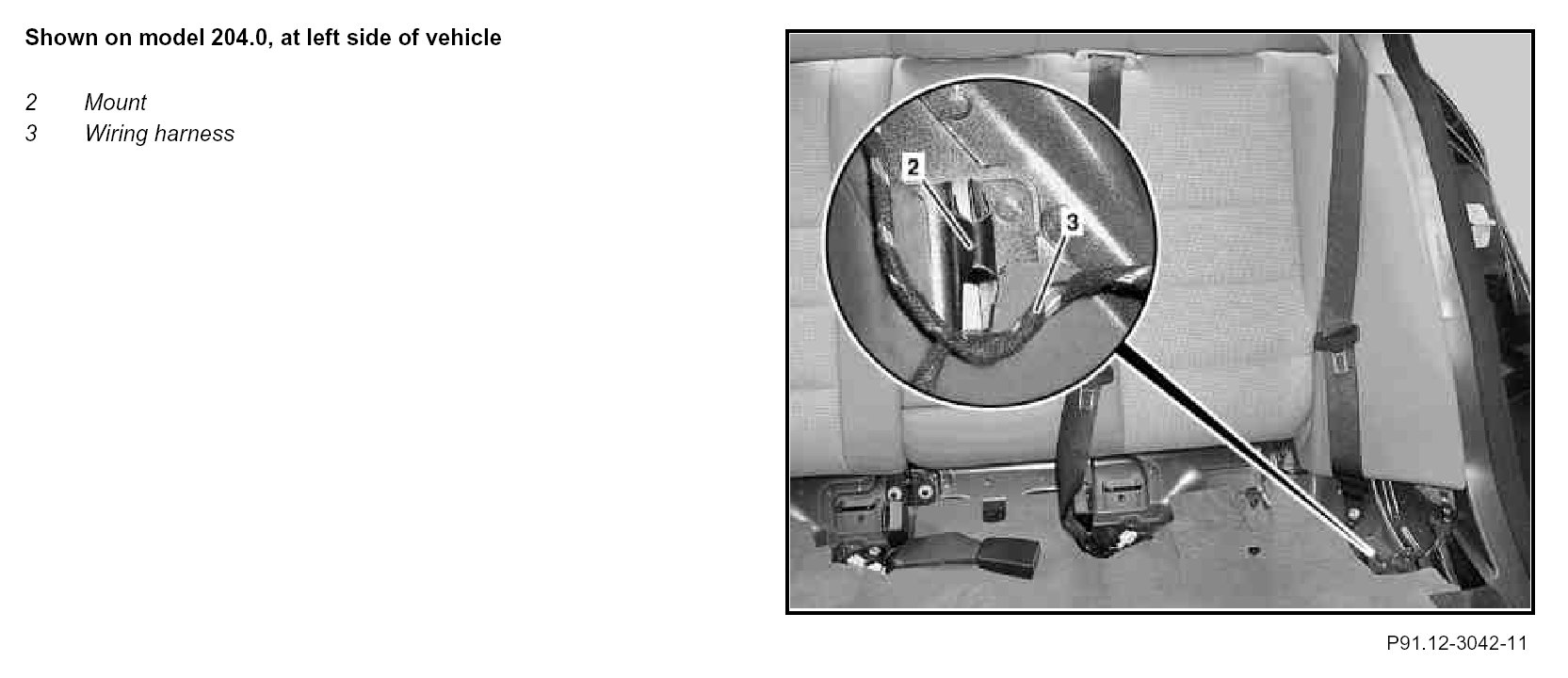

Component Identification:

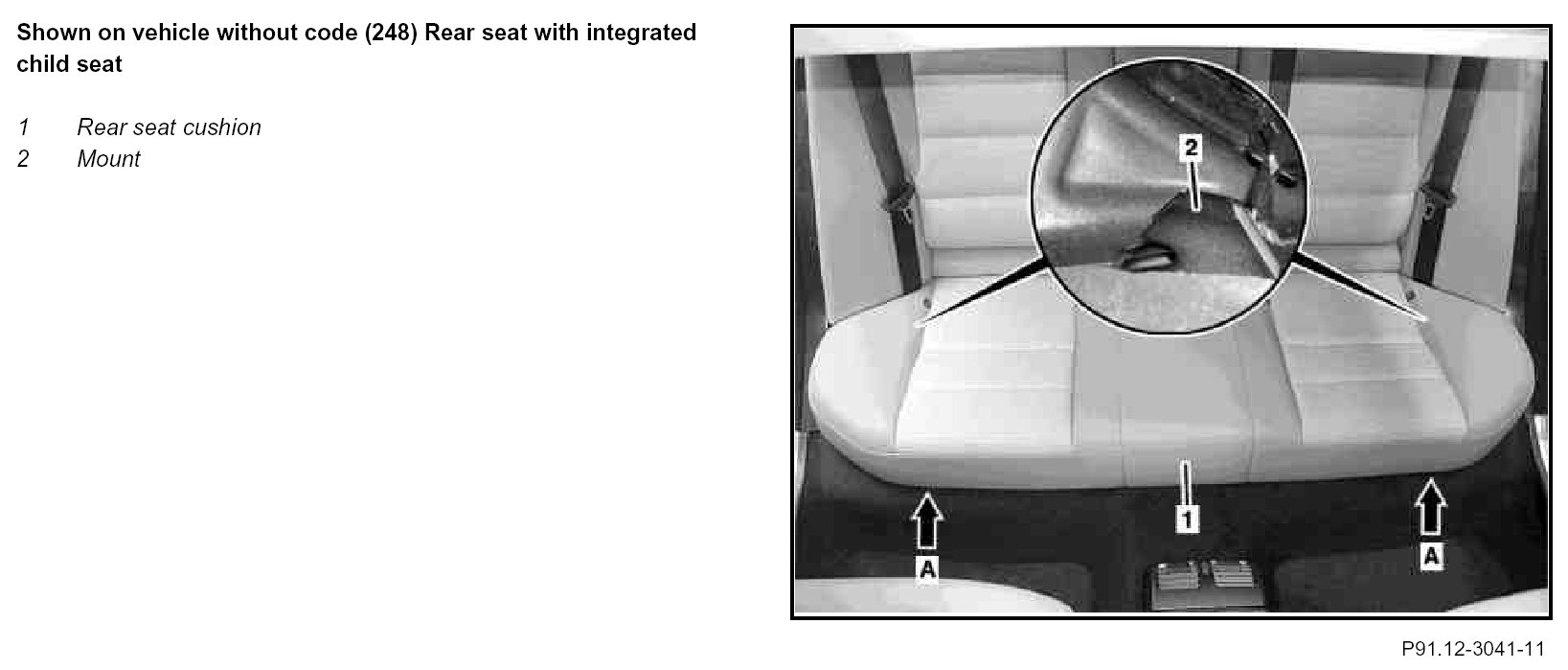

Component Identification:

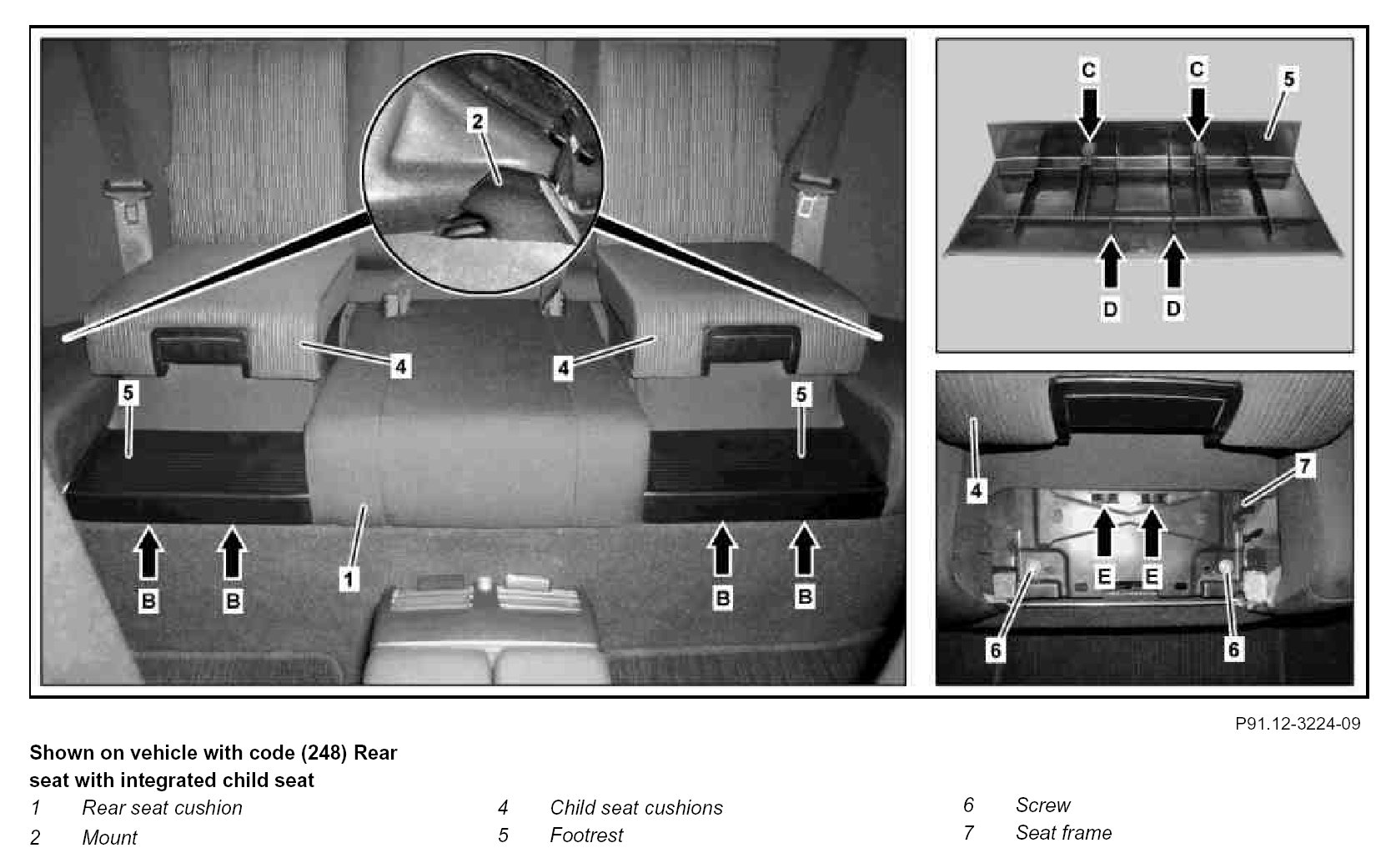

Component Identification:

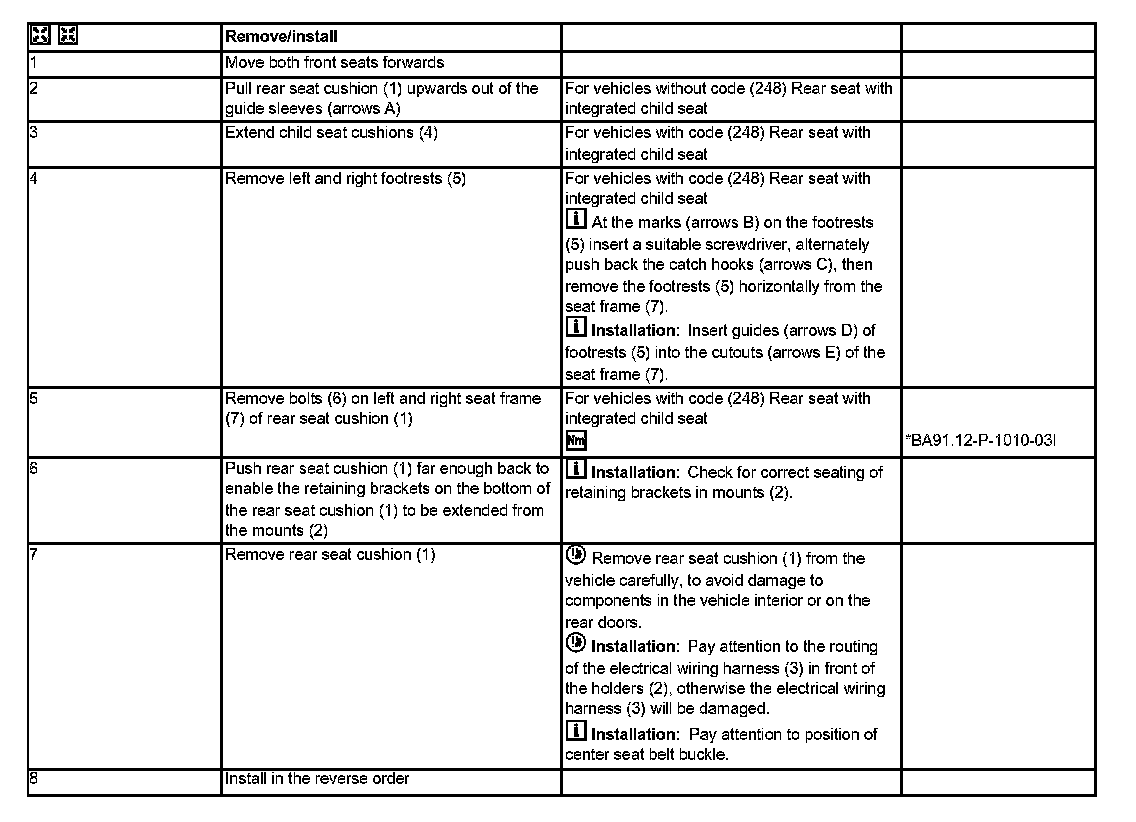

Steps 1 - 8:

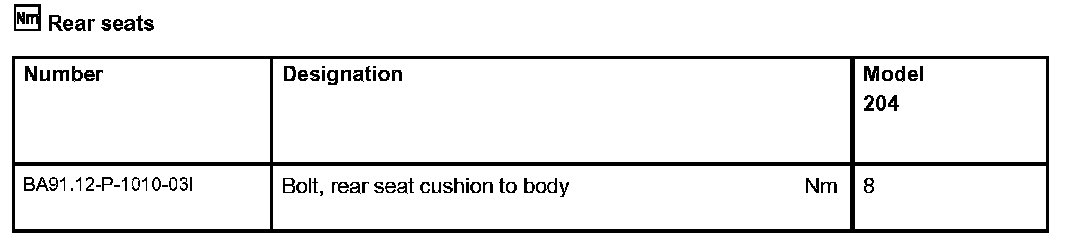

Rear Seats:
