AR91.18-P-1878CW Remove/Install Right Rear Seat Backrest Cover



AR91.18-P-1878CW Remove/Install Right Rear Seat Backrest Cover
- with CODE (287) Through-loading feature [model 204.0, 212.0]

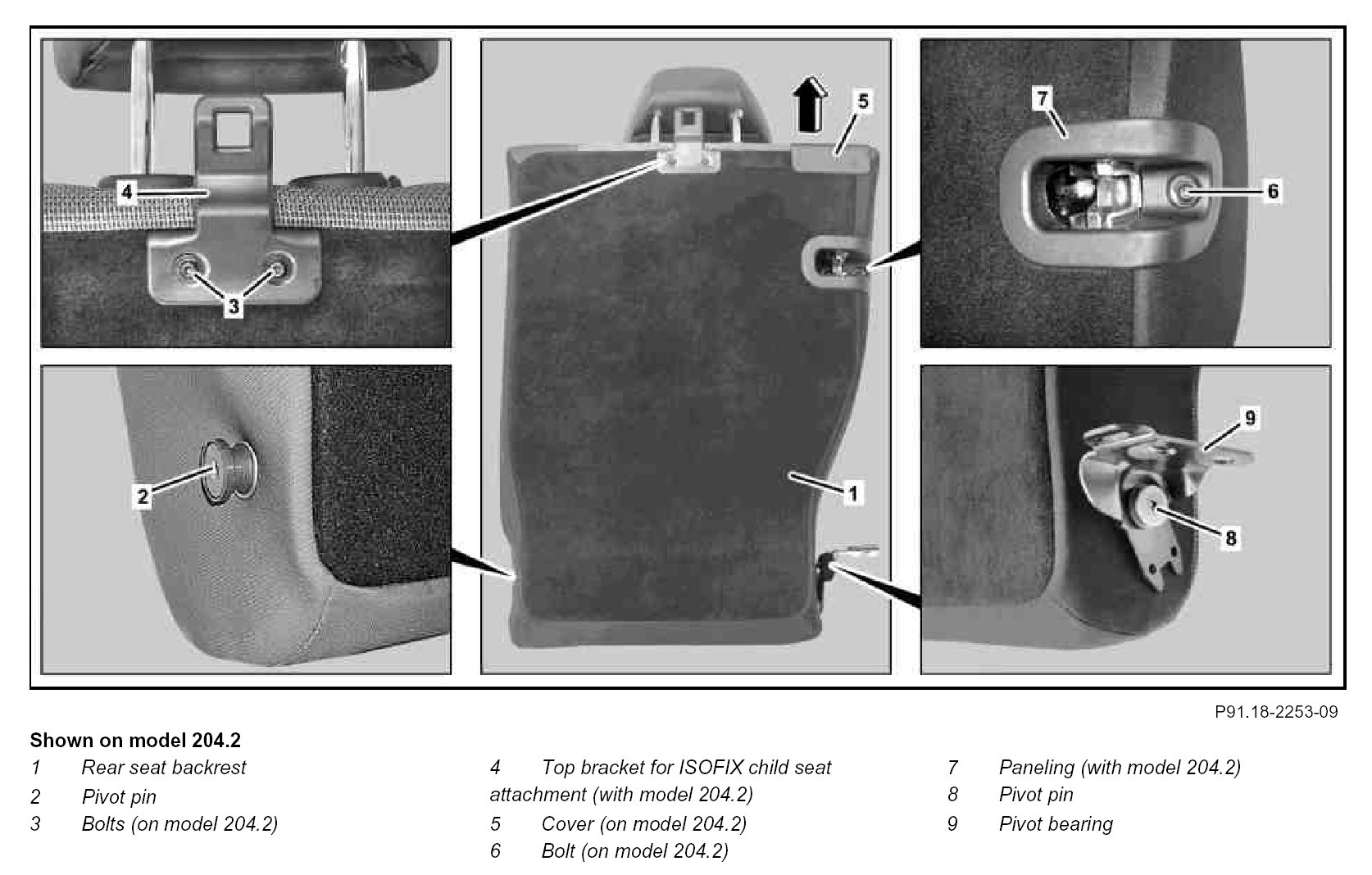

Component Identification:

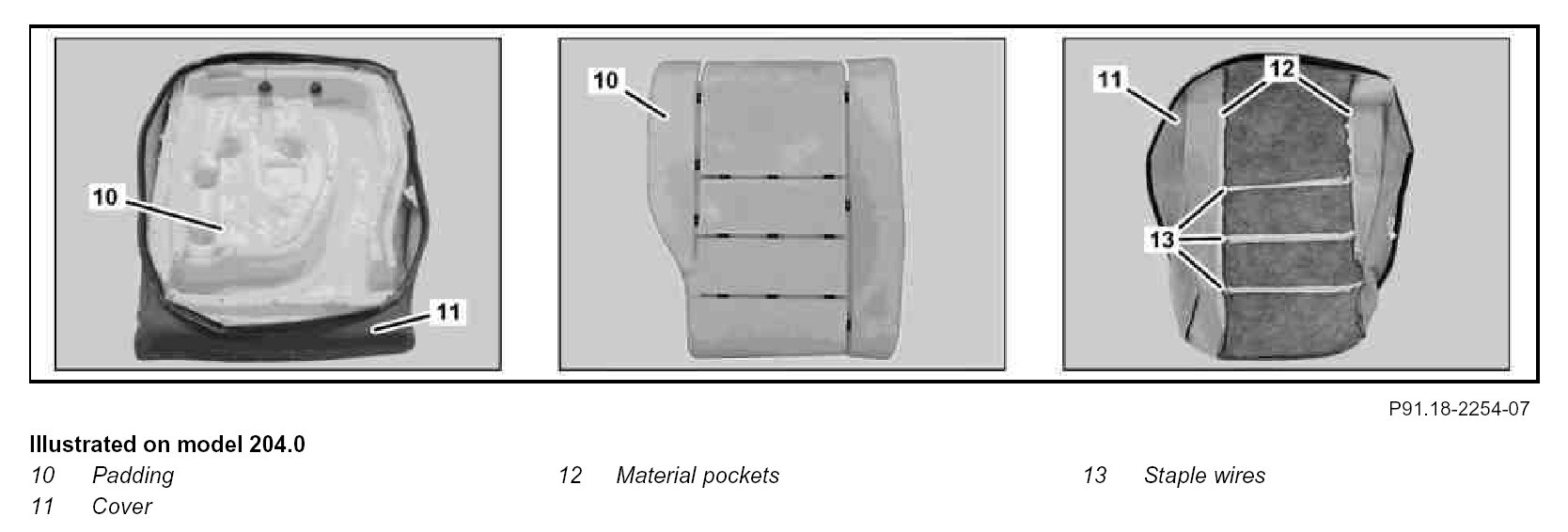

Component Identification:

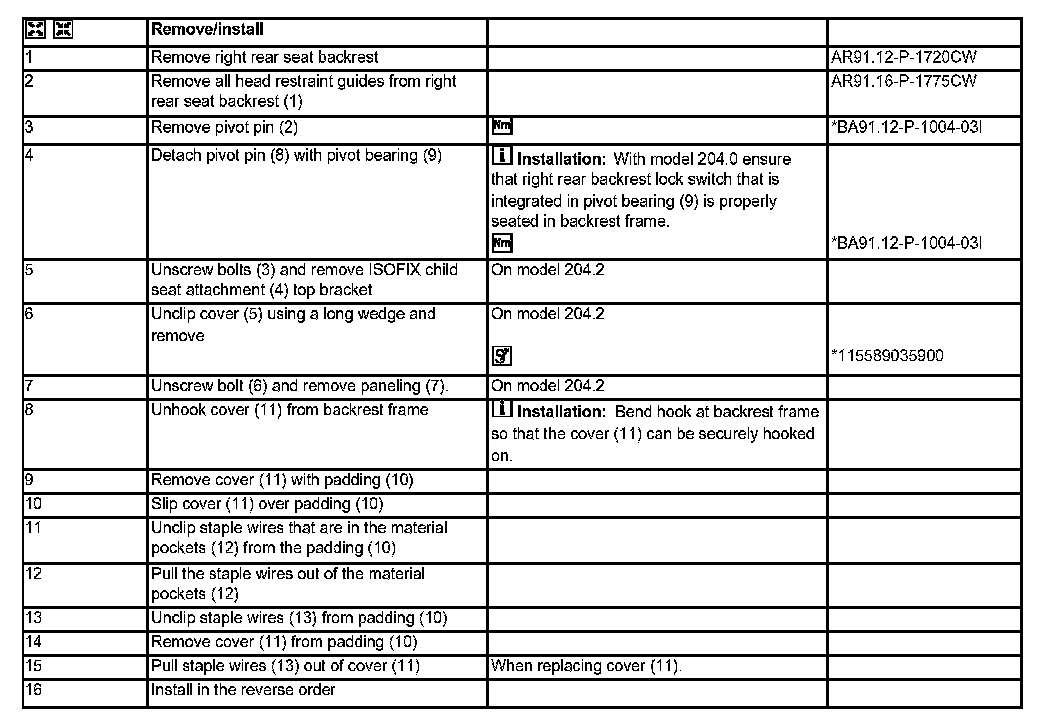

Steps 1 - 16:

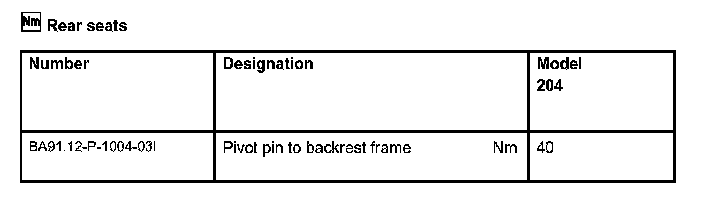

Rear Seats:




Special Tools:
