AR91.18-P-1870CW Remove/Install Rear Seat Backrest Cover



AR91.18-P-1870CW Remove/Install Rear Seat Backrest Cover
- except CODE (287) Through-loading feature
- except CODE (224) Rear individual seat design [models 212.0]


Component Identification:

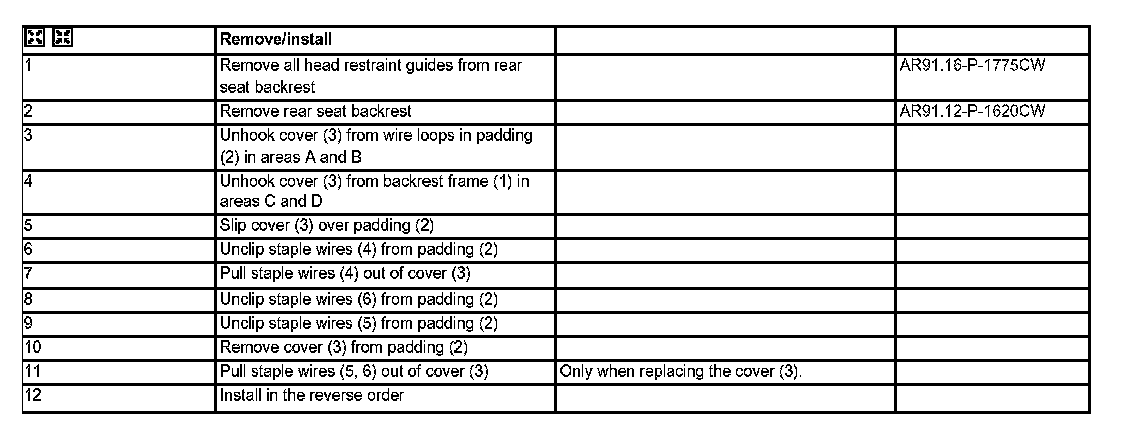

Steps 1 - 12:
