AR91.18-P-1820CX Remove/Install Front Seat Backrest Cover

AR91.18-P-1820CX Remove/Install Front Seat Backrest Cover
- with CODE (409) Left/right front multicontour seat
- with CODE (275) Memory package (driver seat, steering column, mirrors) [model 204.9 and model 212]
- with CODE (242) Electronically adjustable front passenger seat with memory [model 204.9]
- with CODE (401) Front comfort seats, incl. seat heating and seat ventilation [model 212]
- with CODE (432) Left and right dynamic multicontour seat [model 212]

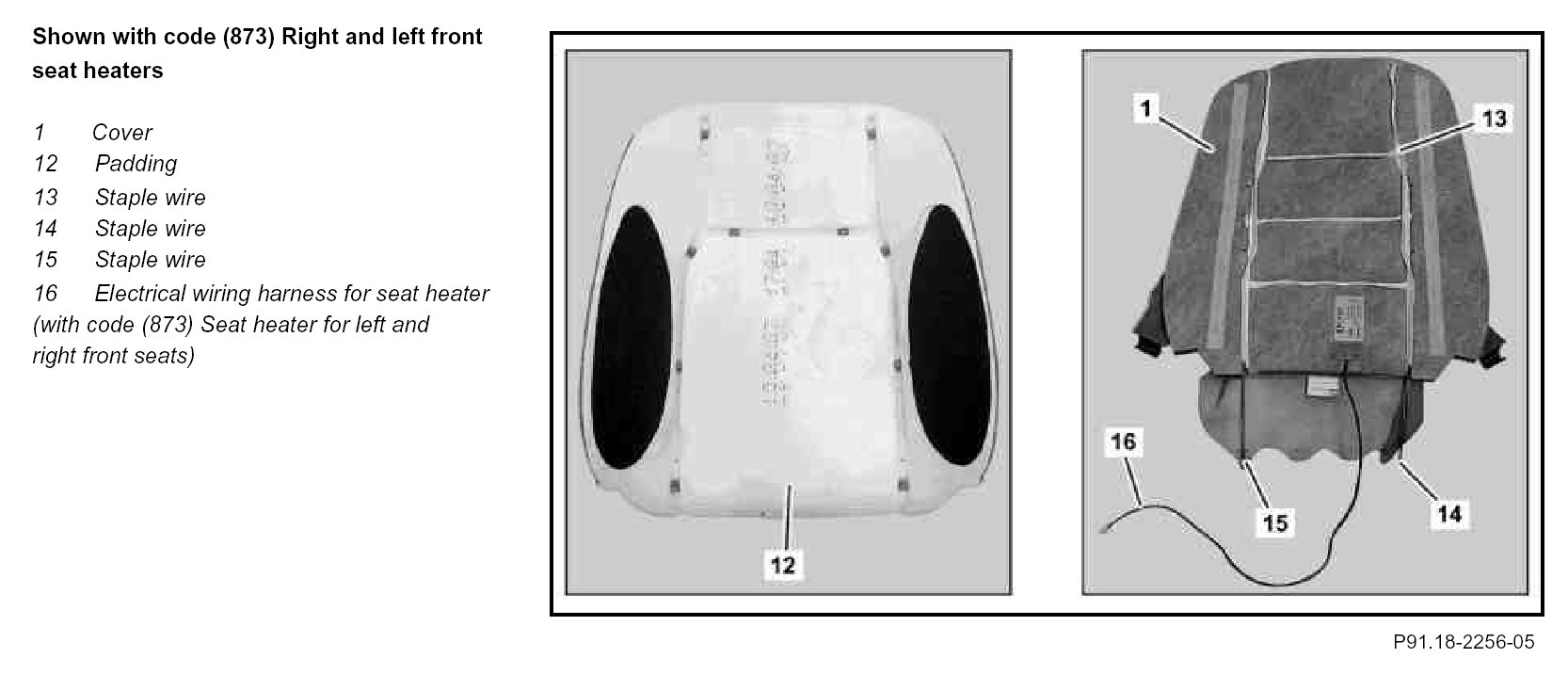

Component Identification:

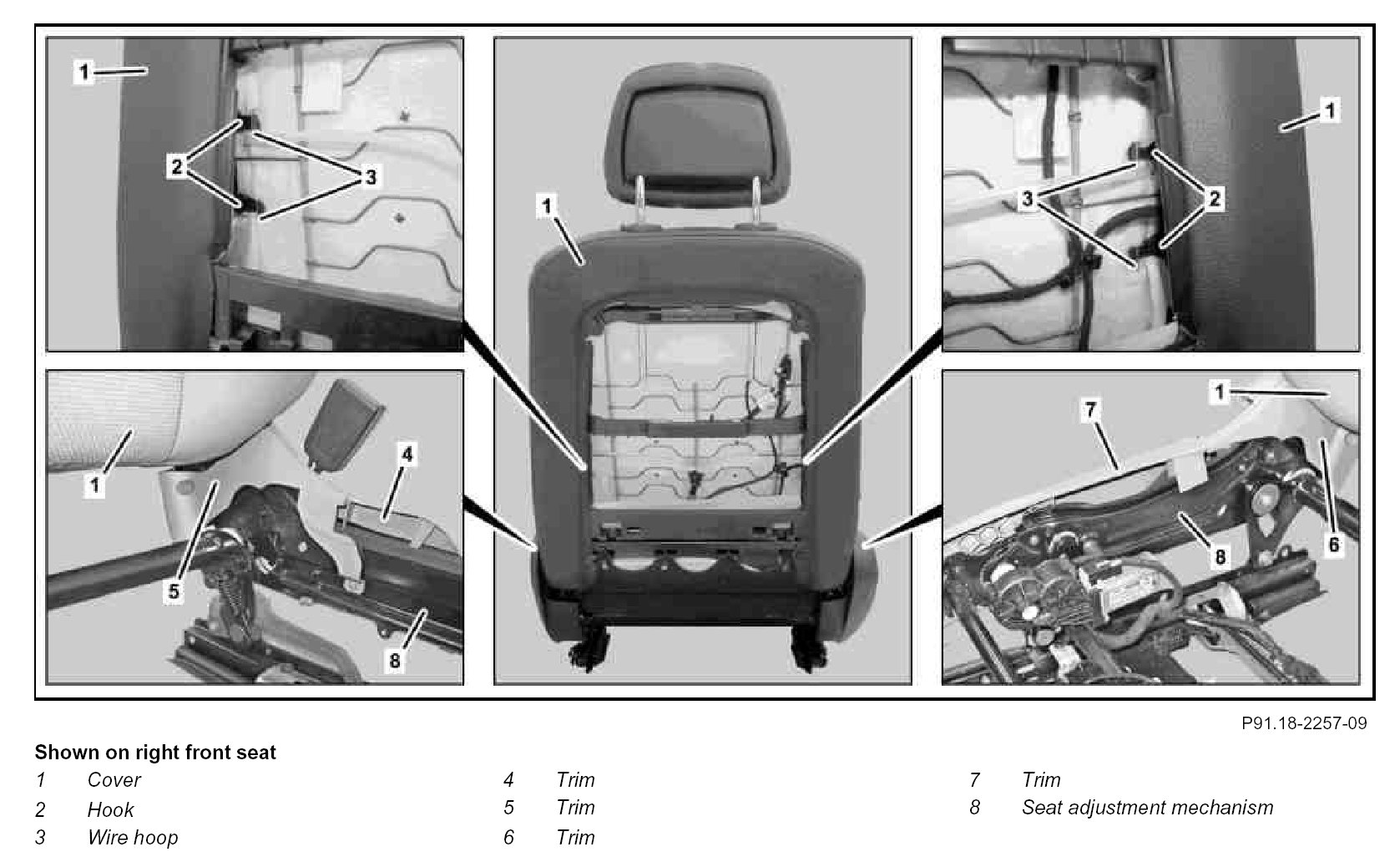

Component Identification:

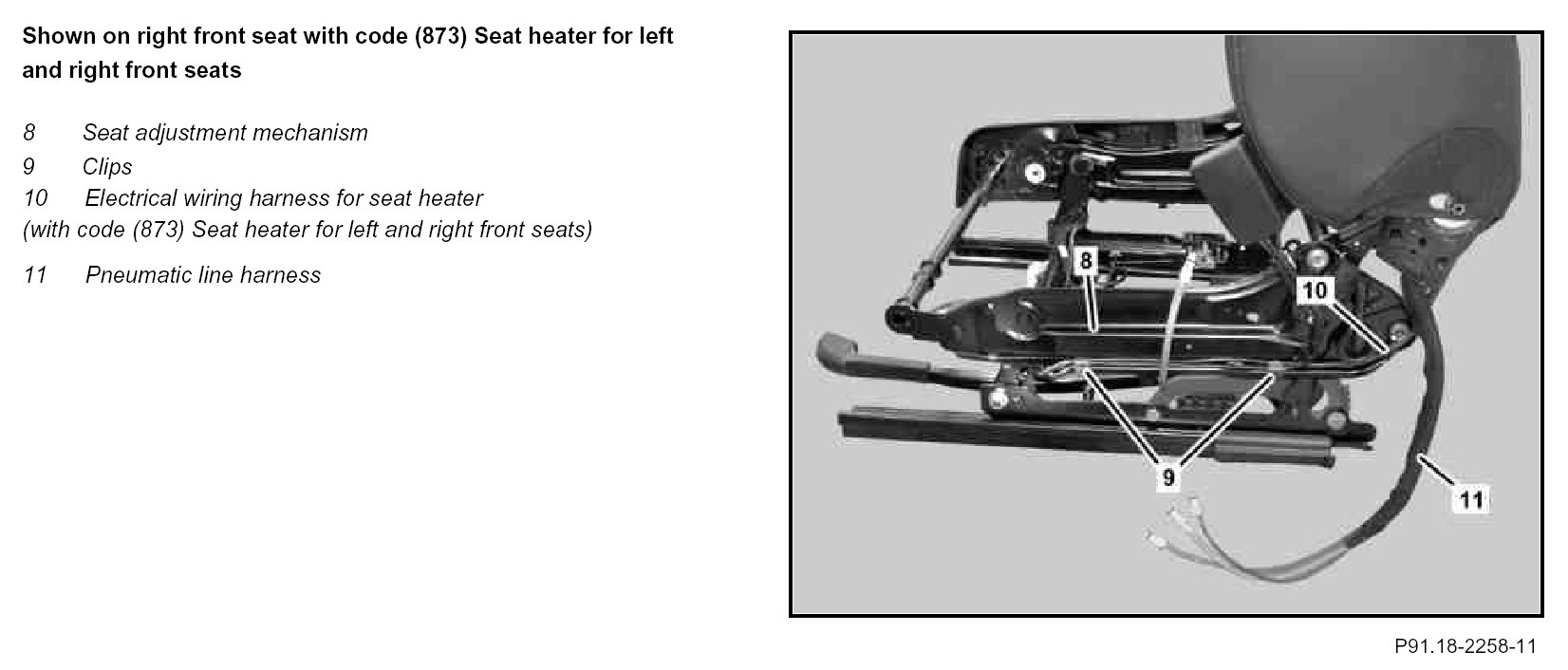

Component Identification:

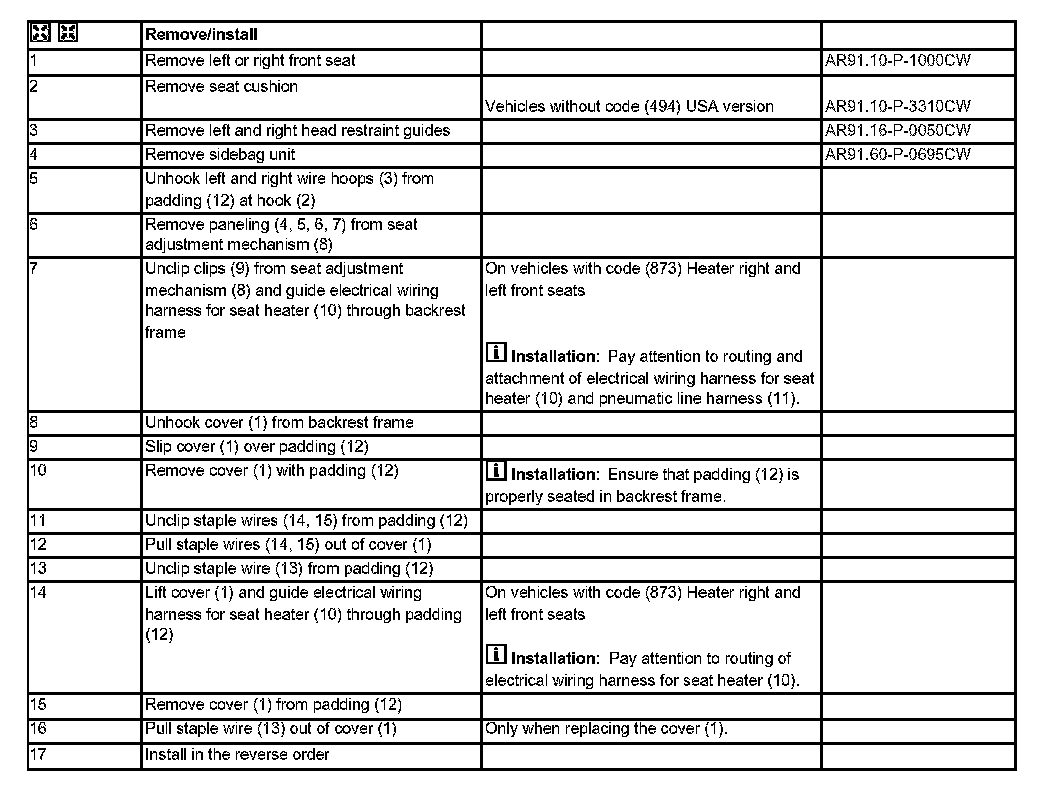

Steps 1 - 17:
