AR91.25-P-1748EW Remove/Install Multicontour Seat or Dynamic Seat Air Cushion at Front Seat Cushion



AR91.25-P-1748EW Remove/Install Multicontour Seat Or Dynamic Seat Air Cushion At Front Seat Cushion
- MODEL 212
with CODE (409) Left/right front multicontour seat
with CODE (432) Left and right dynamic multicontour seat
- MODEL 463.236 /271
except CODE (SM7) Left front multicontour seat
except CODE (SM8) Front passenger multicontour seat

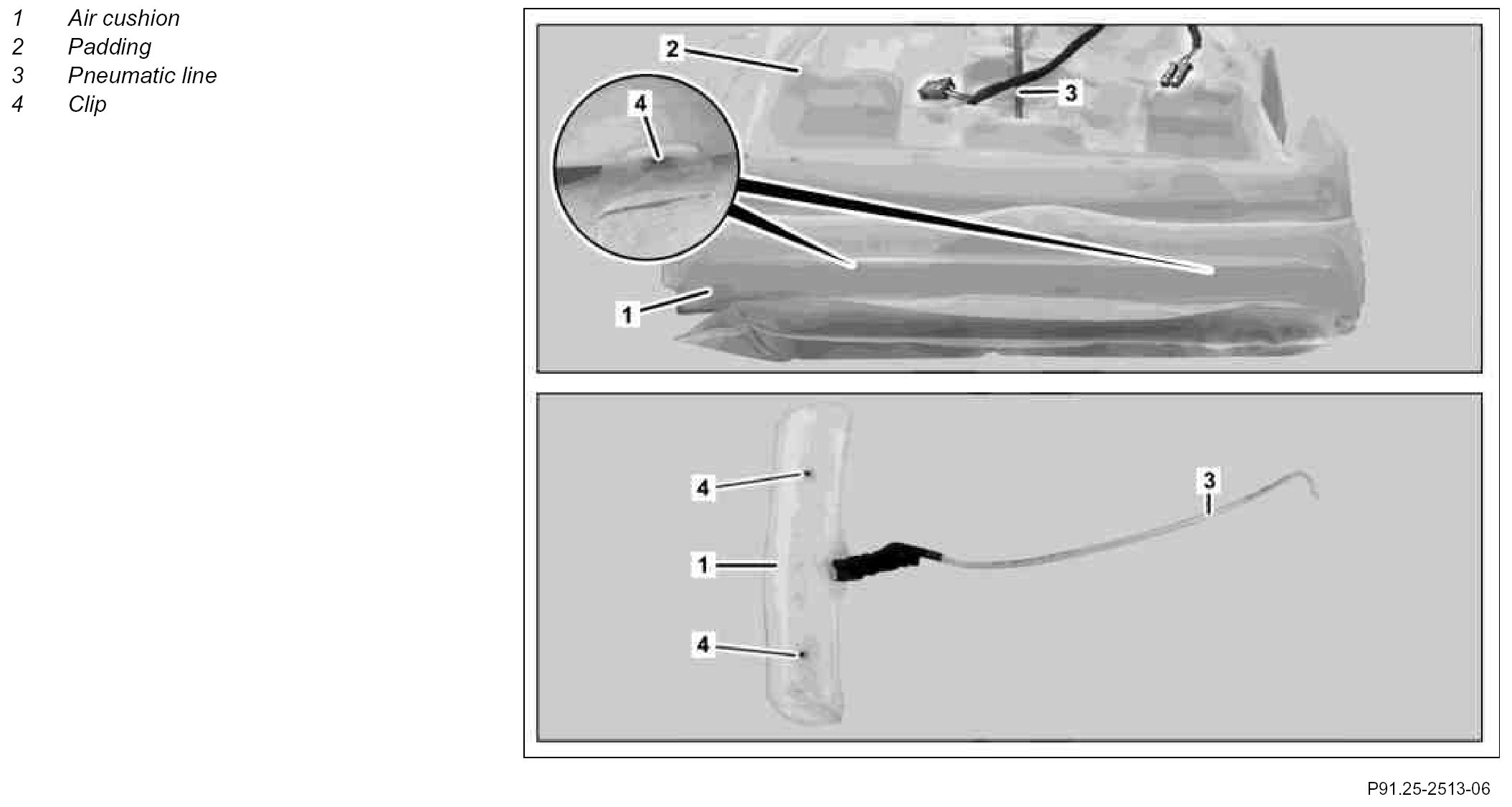

Component Identification:

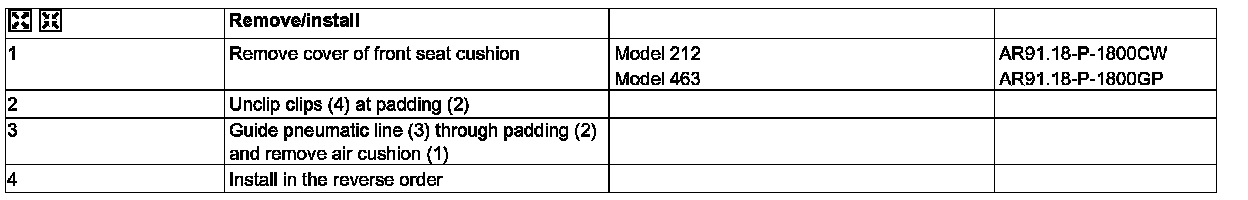

Steps 1 - 4:
