AR91.25-P-1445CY Remove/Install Front Seat Backrest Lumbar Support Air Cushion

AR91.25-P-1445CY Remove/Install Front Seat Backrest Lumbar Support Air Cushion
- with CODE (242) Electrically adjustable front passenger seat with memory [models 204.0 /9]
- with CODE (275) Memory package (driver seat, steering column, mirrors) [models 204.0 /9 and 212]
- except CODE (409) Left/right front multicontour seats [model 204.0]
- except CODE (SM7) Left front multicontour seat [models 463.236 /271]
- except CODE (SM8) Front passenger multicontour seat [models 463.236 /271]

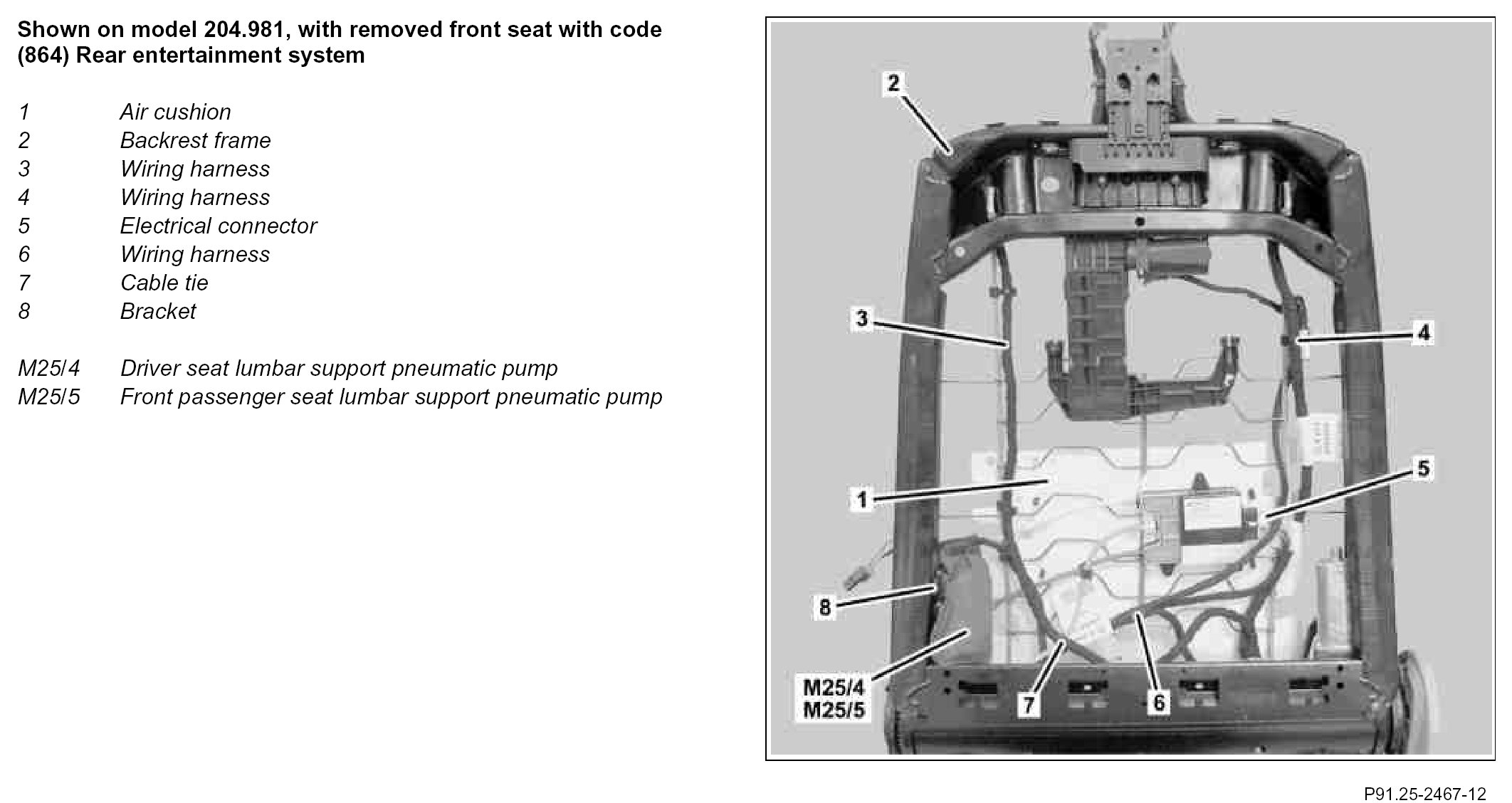

Component Identification:

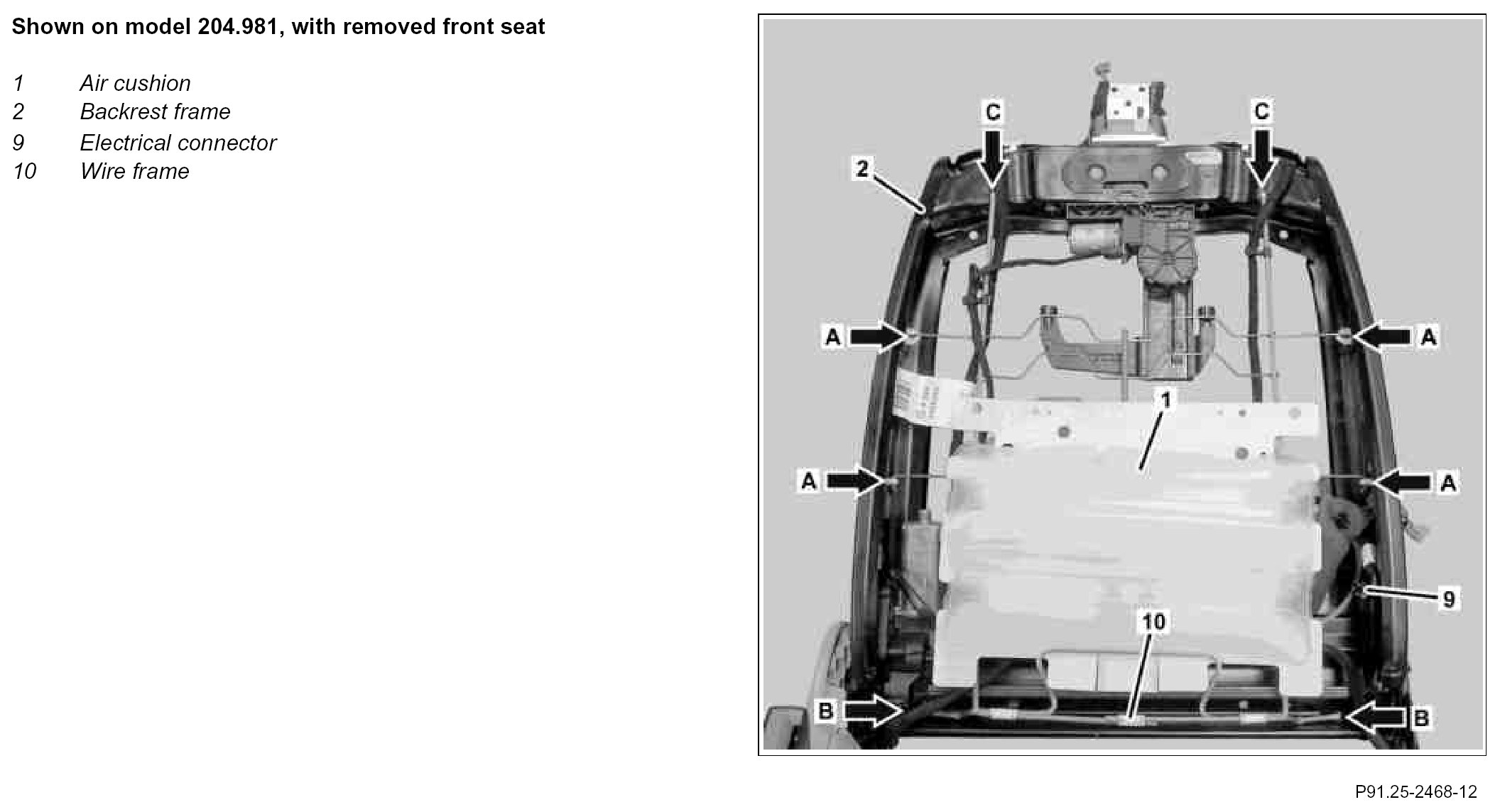

Component Identification:

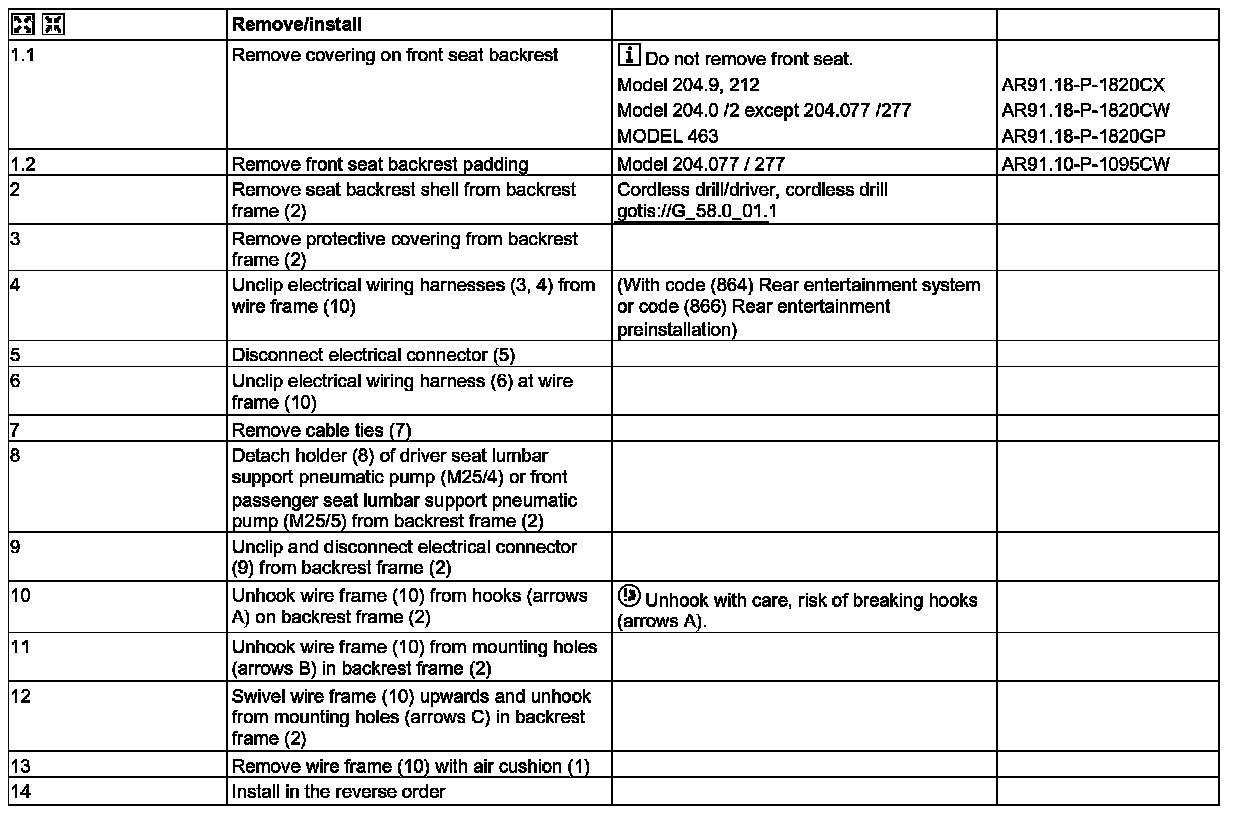

Steps 1.1 - 14:
