AR91.12-P-1620CW Remove/Install Rear Seat Backrest



AR91.12-P-1620CW Remove/Install Rear Seat Backrest
- except CODE (287) Through-loading feature
- except CODE (224) Rear individual seat design [model 212.0]

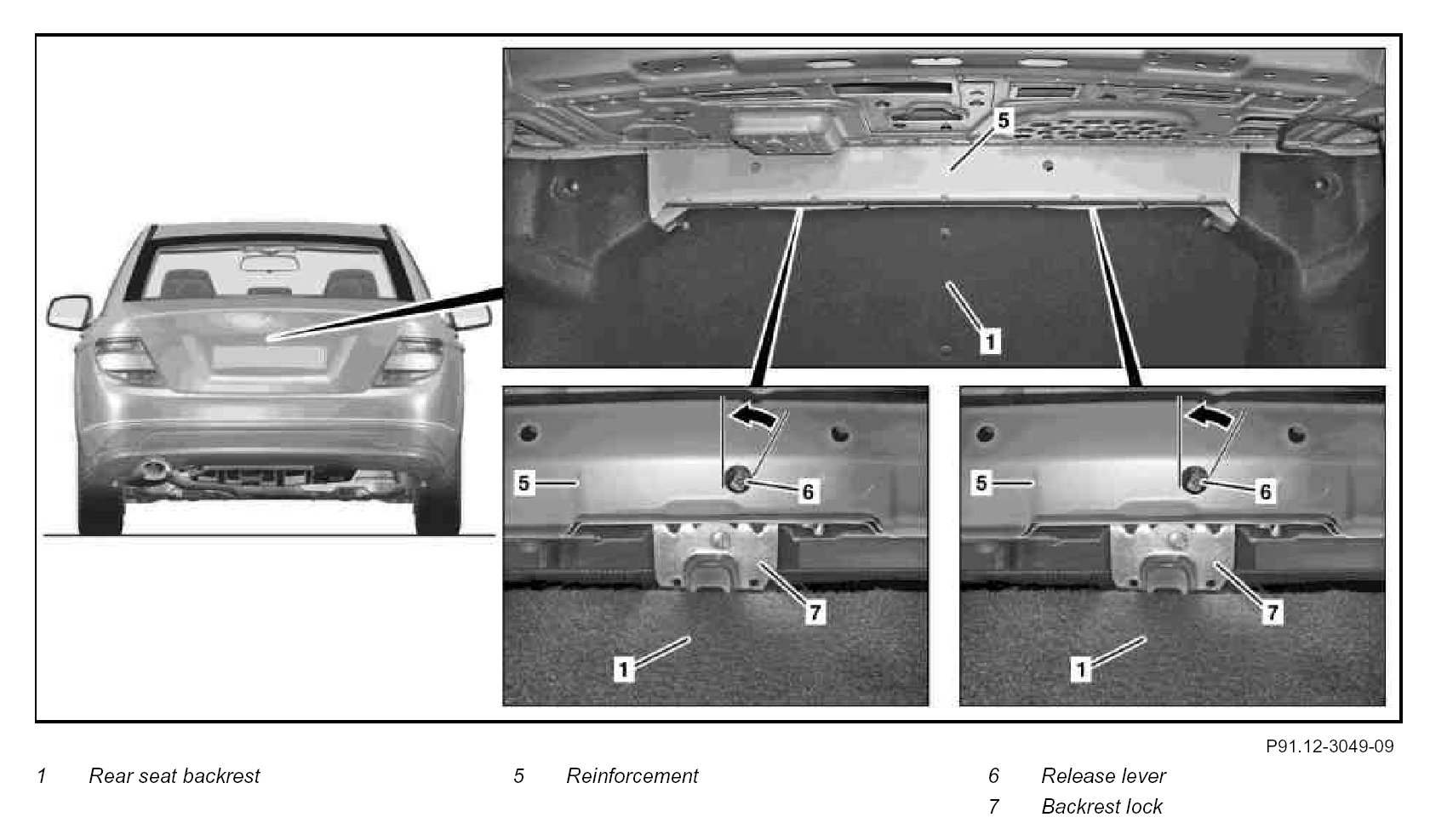

Component Identification:




Component Identification:

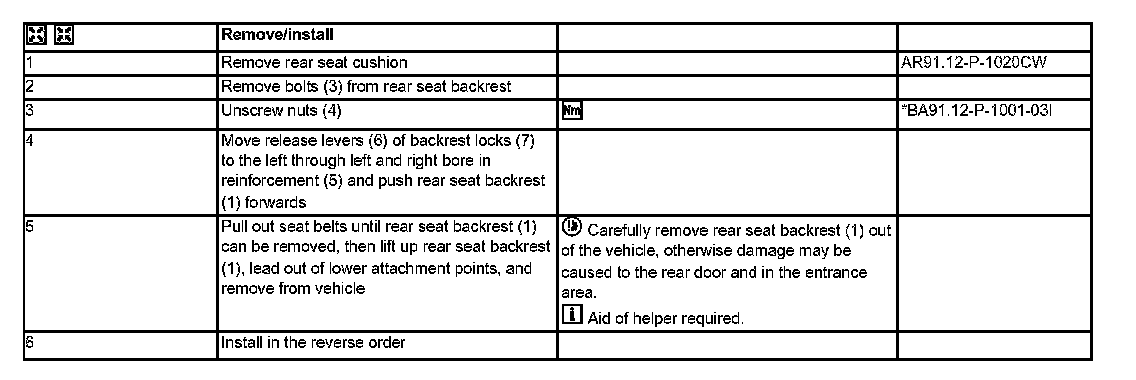

Steps 1 - 6:




Rear Seats:
