Power Seat Motor: Service and Repair

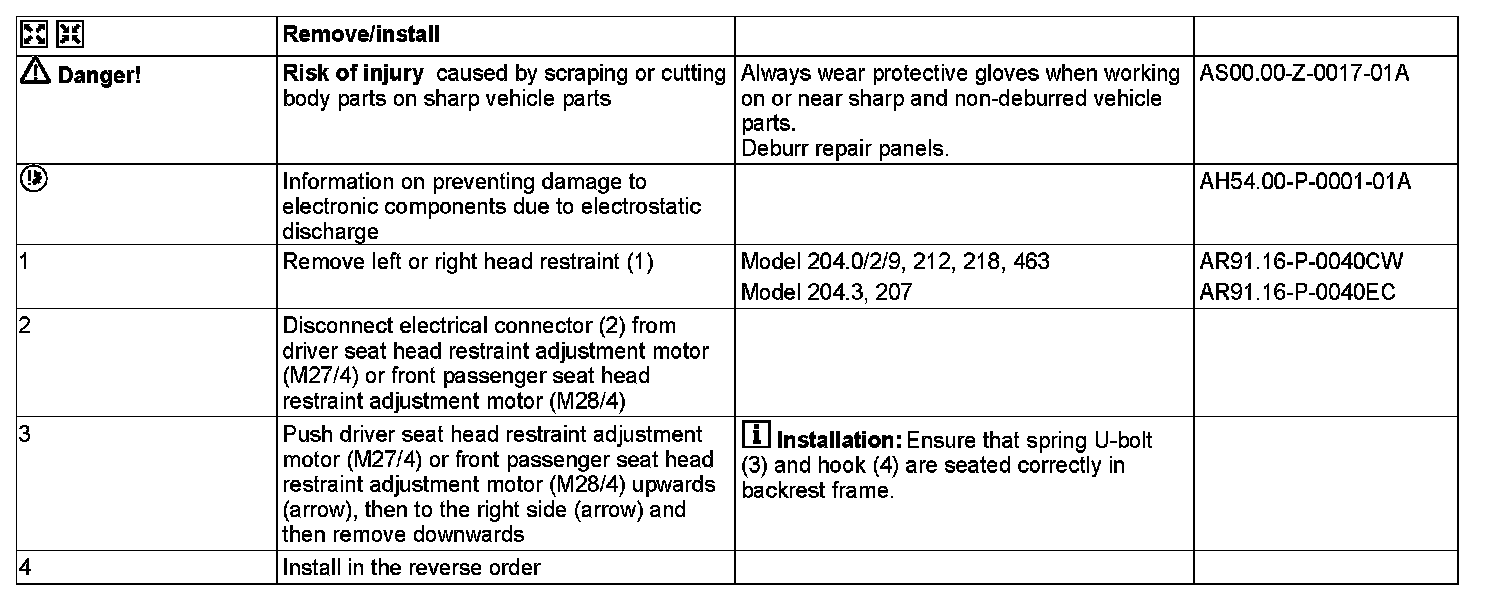

AR91.29-P-1432CW Remove/Install Front Seat Head Restraint Motor
MODEL 204.0 /2 /3 /9 (except 204.077 /277)
- with CODE (242) Electrically adjustable front passenger seat with memory function
- with CODE (275) Memory package (driver seat, steering column, mirrors)
MODEL 212, 218
- with CODE (275) Electrically adjustable front seats with memory
MODEL 463.222 /270 /271 /303 /340 /341
as of model year 2010
MODEL 463.306 /336
MODEL 207
MODEL 463.202 /236 /237 up to model year 2013
as of model year 2010, /model refinement package 2012
MODEL 463.346 up to model year 2013 /model refinement package 2012

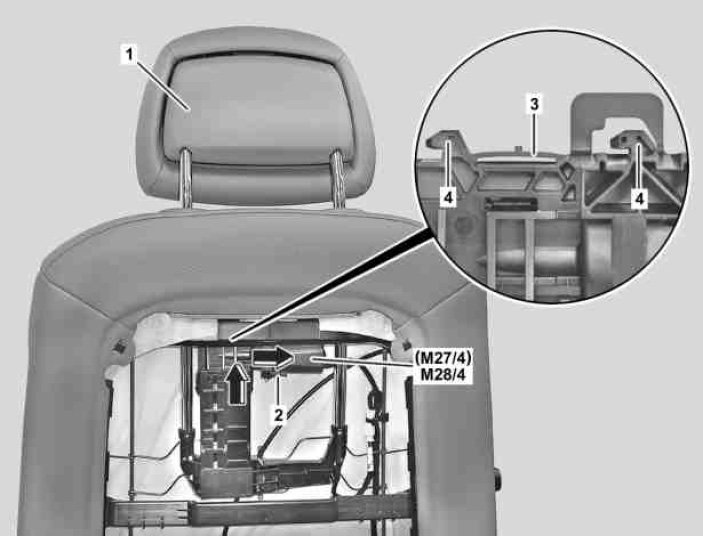

Illustrated on model 204.052

1 Head restraint
2 Electrical connector
3 Spring U-bolt
4 Hook

M27/4 Driver seat head restraint adjustment motor
M28/4 Front passenger seat head restraint adjustment motor
