Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Body and Frame >> Seats >> Head Restraint System >> Description and Operation >> GF91.16-P-0001-05FL Rear Head Restraint Lowering Mechanism (RHR (KAF)), Block Diagram

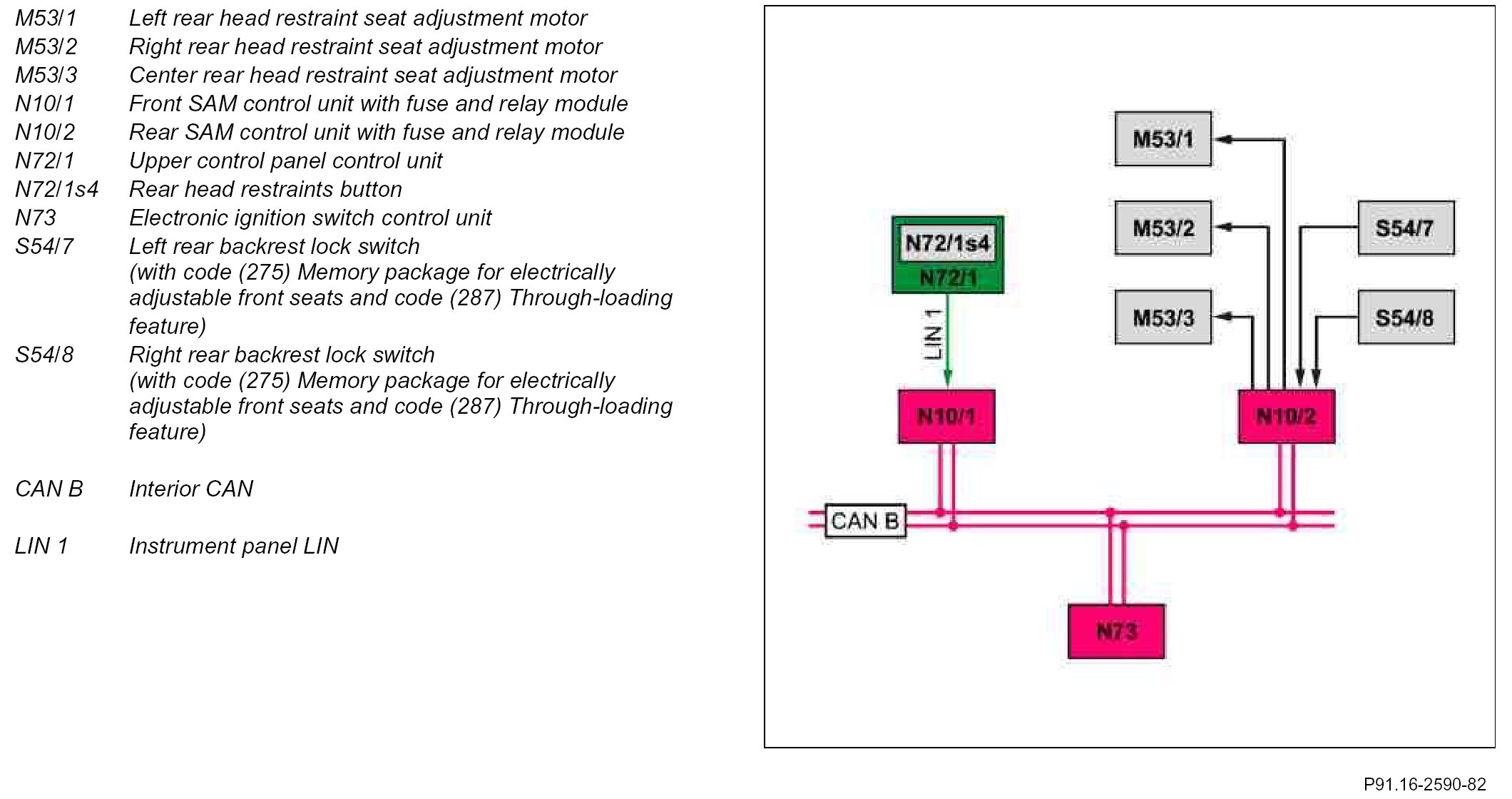

GF91.16-P-0001-05FL Rear Head Restraint Lowering Mechanism (RHR (KAF)), Block Diagram



GF91.16-P-0001-05FL Rear Head Restraint Lowering Mechanism (RHR [KAF]), Block Diagram


Component Identification:
