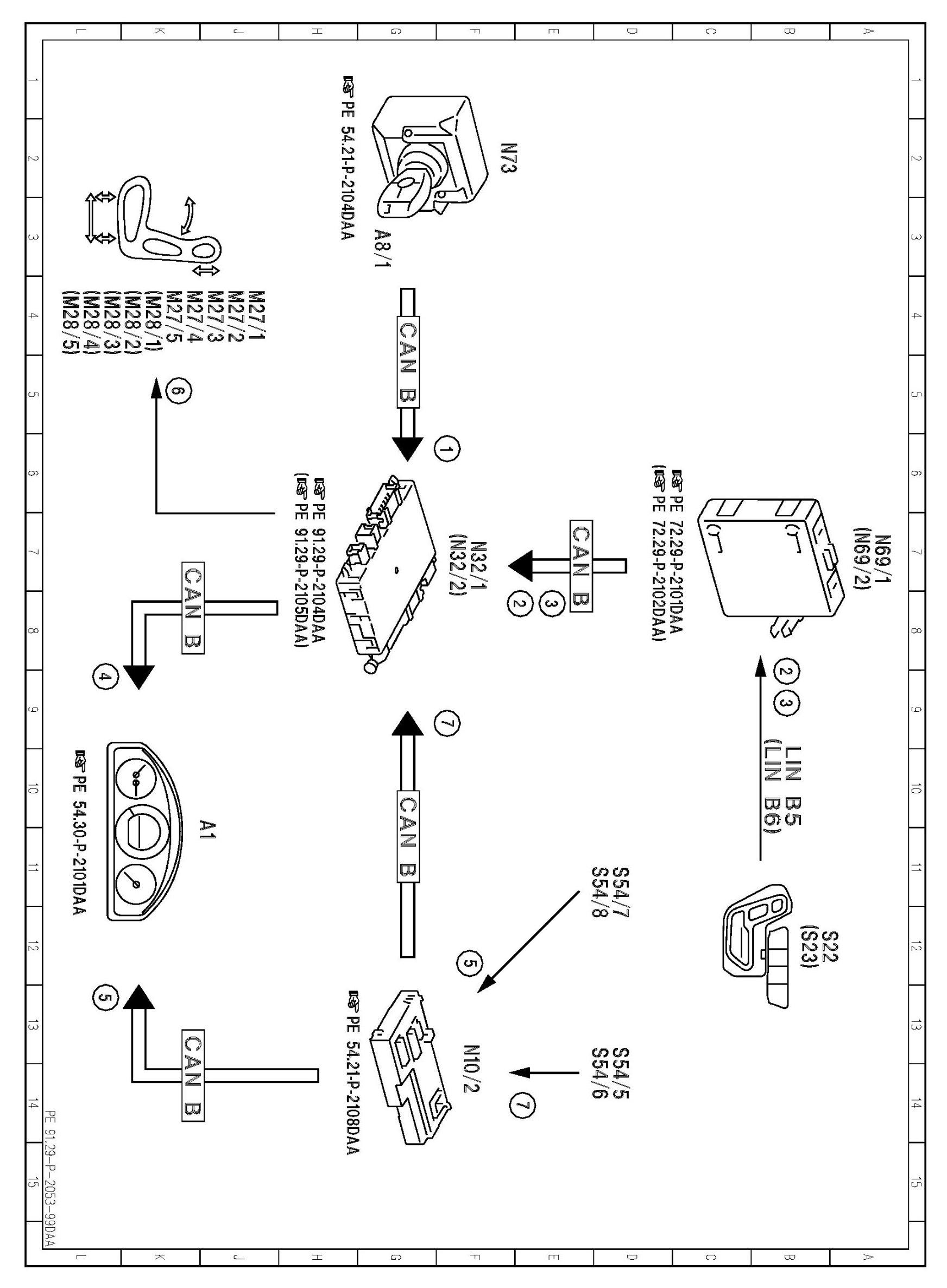

PE91.29-P-2053DAA Electrical Function Schematic Of Fully Electric Seat Adjustment (ESA [ESE])

PE91.29-P-2053DAA Electrical Function Schematic Of Fully Electric Seat Adjustment (ESA [ESE])
MODEL 212
- with CODE (275) Electrically adjustable front seats memory package


























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
