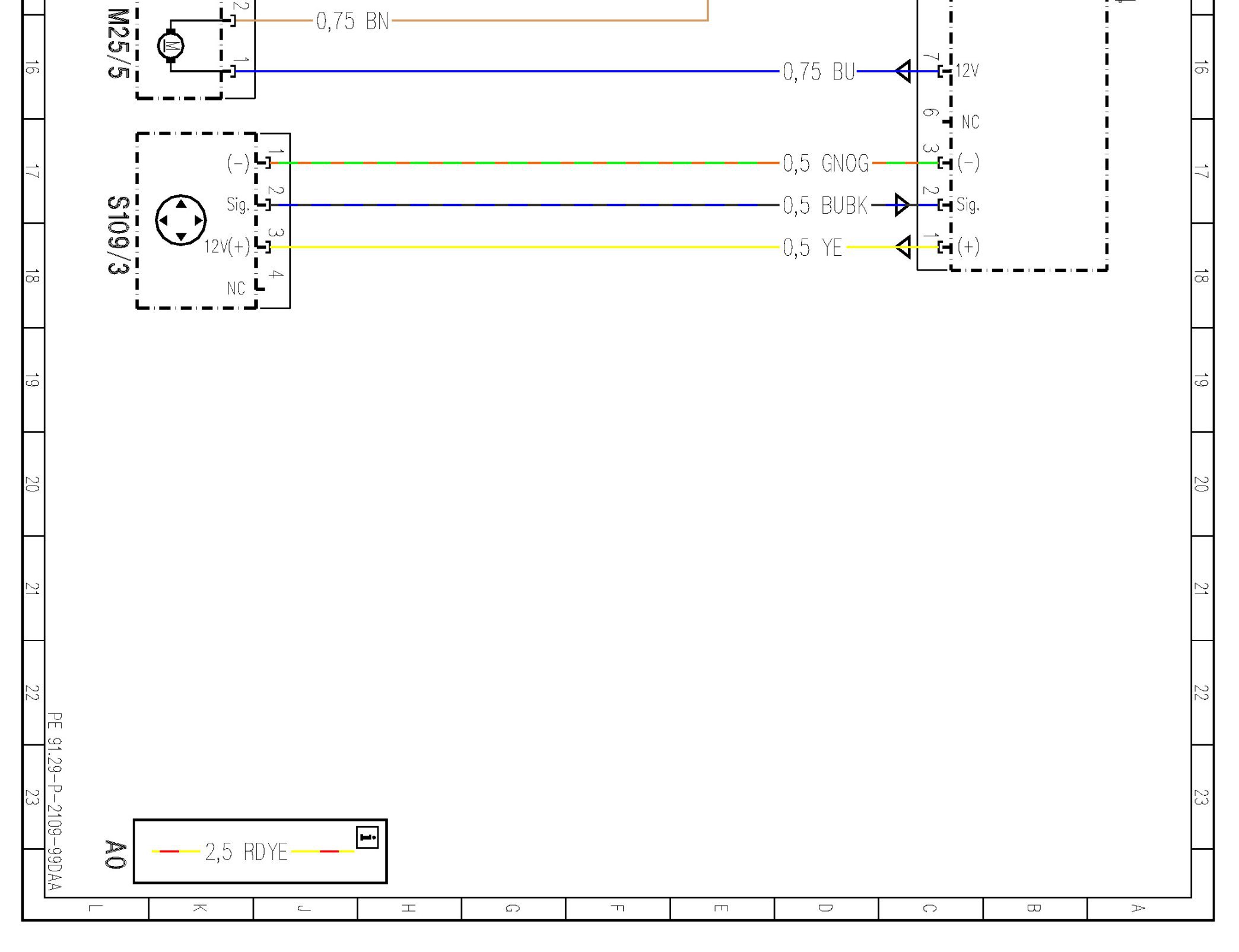

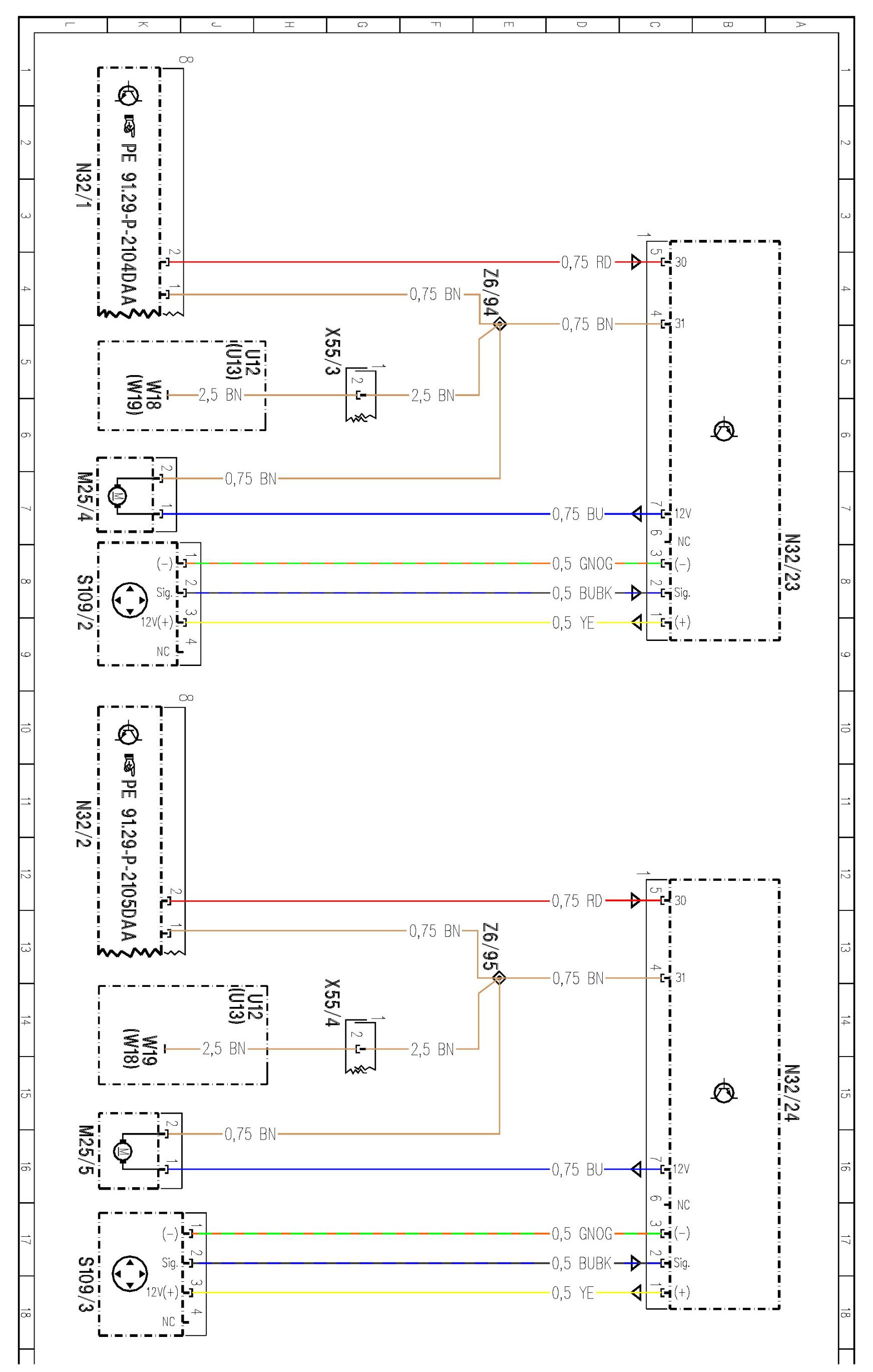

PE91.29-P-2109DAA Lumbar Support Wiring Diagram

PE91.29-P-2109DAA Lumbar Support Wiring Diagram
MODEL 212
- except CODE (432) Left and right dynamic multicontour seat
- except CODE (409) Left/right front multicontour seats

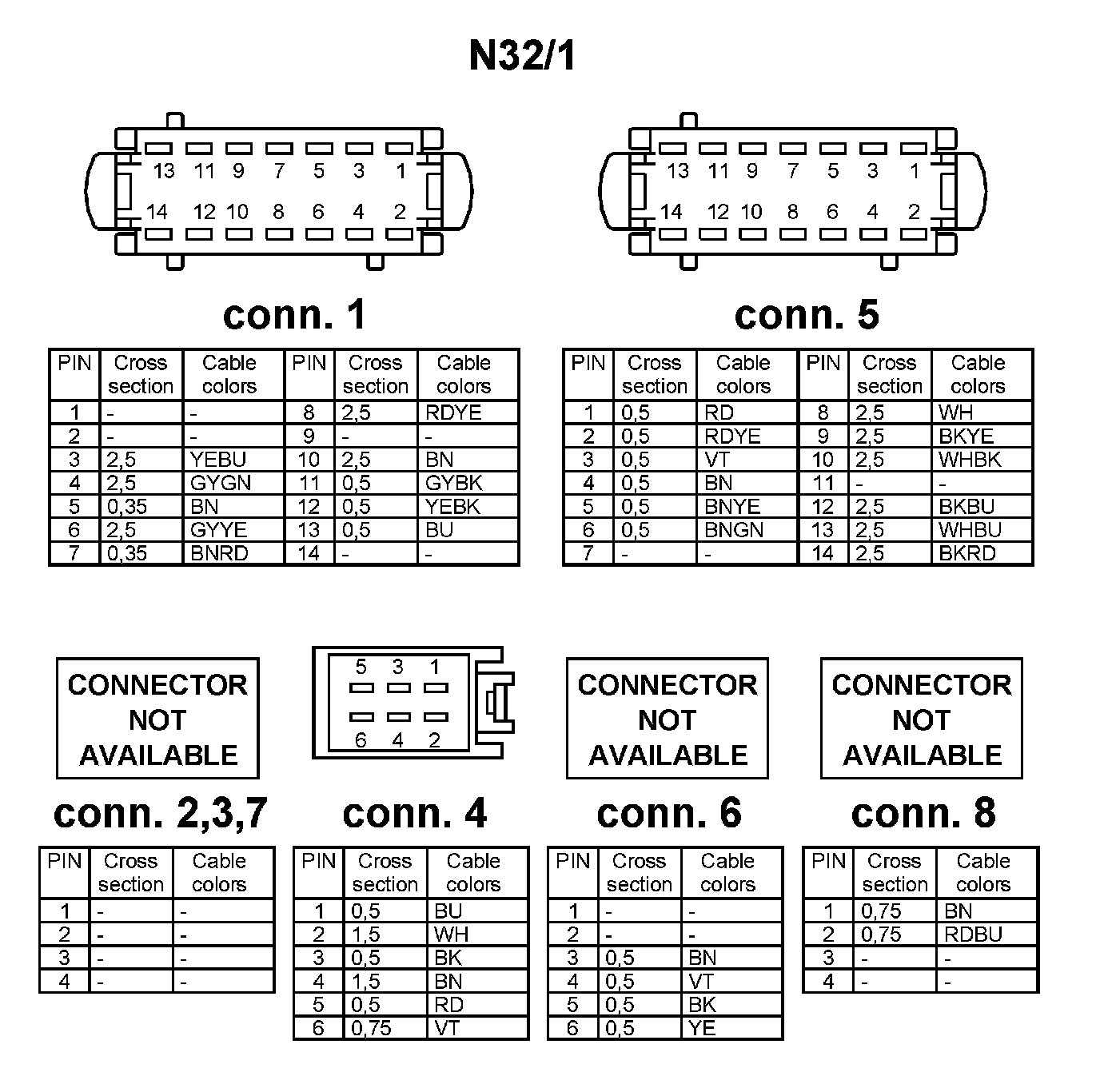

- Control unit N32/23, N32/24

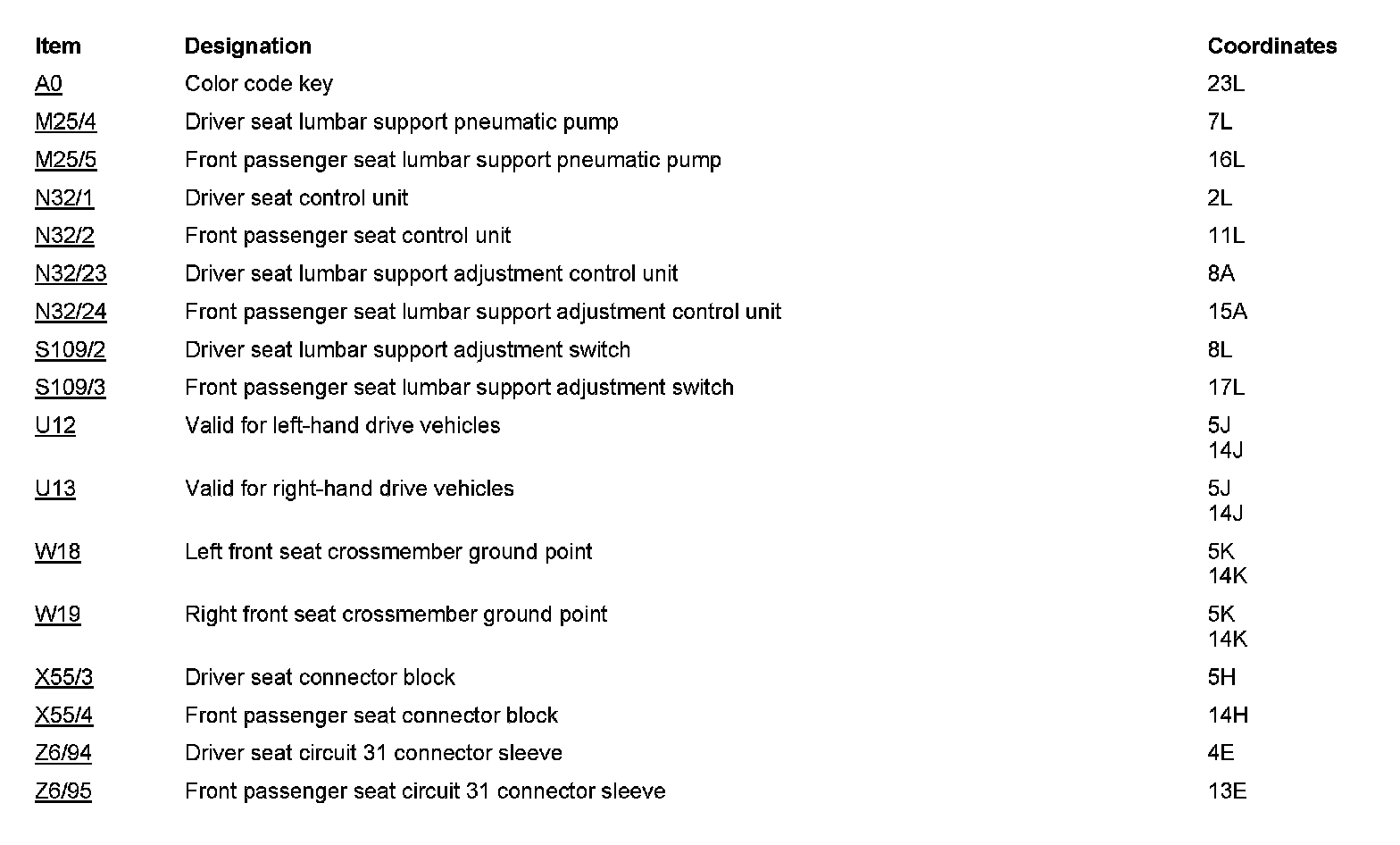

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
